Product groups
Clamp straps with adjustment unit
K0004

Clamp straps with adjustment unit

go back

Item description/product images

DescriptionMaterial:Base, ductile iron.
Clamp strap and clamping screw carbon steel.
Version:Black oxide finish.Note:These clamp strap modules are universal, flexible clamps constructed from individual components building a compact unit. There are no loose parts which first have to be altered for a clamping operation. The compact design allows these clamps to be placed close to the workpiece enabling the full area of the machine table to be used.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0004 Clamp straps with adjustment unit 295 kB

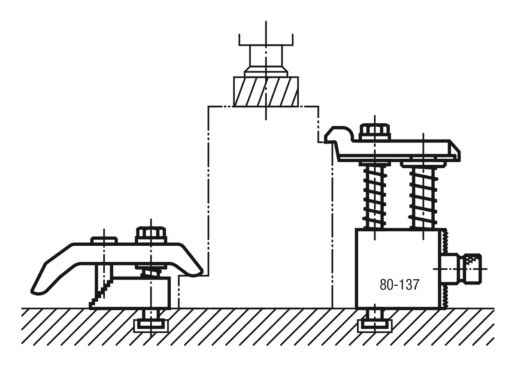

Drawings

Clamp straps with adjustment unit
Clamp straps with adjustment unit

Item selection/filter

Item No.SizeClamp rangeSlot width B
DIN 650
CADAcc.PriceOrder
K0004.10X1210-3512 195.14 $ (USD)
K0004.10X1410-3514 195.14 $ (USD)
K0004.10X1610-3516 195.14 $ (USD)
K0004.10X1810-3518 195.14 $ (USD)
K0004.20X12225-8512 251.15 $ (USD)
K0004.20X14225-8514 251.15 $ (USD)
K0004.20X16225-8516 251.15 $ (USD)
K0004.20X18225-8518 251.15 $ (USD)
K0004.30X12380-13712 329.50 $ (USD)
K0004.30X14380-13714 329.50 $ (USD)
K0004.30X16380-13716 329.50 $ (USD)
K0004.30X18380-13718 329.50 $ (USD)
K0004.40X124125-22412 373.33 $ (USD)
K0004.40X144125-22414 373.33 $ (USD)
K0004.40X164125-22416 373.33 $ (USD)
K0004.40X184125-22418 373.33 $ (USD)
K0004.50X125160-30012 398.56 $ (USD)
K0004.50X145160-30014 398.56 $ (USD)
K0004.50X165160-30016 398.56 $ (USD)
K0004.50X185160-30018 398.56 $ (USD)
