K0007Hinge pins steel or stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Steel version:
tempered to 1000 - 1200 N/mm², black oxidized.
Stainless steel version:
tempered to 900 - 1050 N/mm², bright.Order information:2 matching DIN 471 circlips are supplied.Note:For use with:
Cam levers K0008 and K0009.
Eye bolts K0396 and K1418.
Clevis K0397.Benefits:Ground OD.
High dimensional accuracy.
Suitable for use as spare part.
Matching circlips included.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

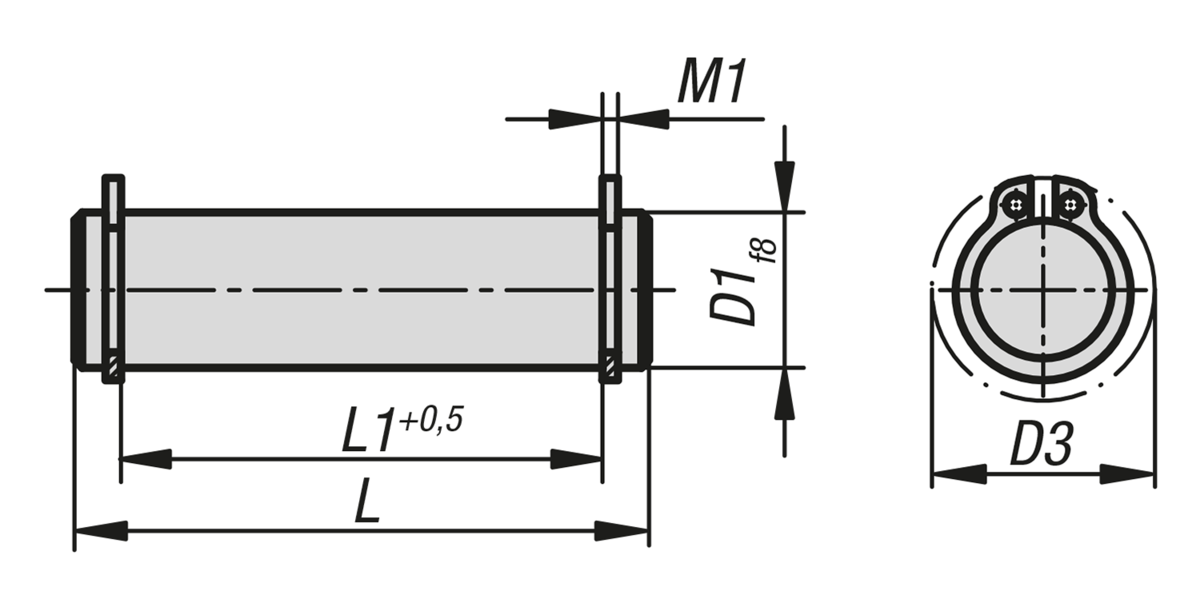

Item No.
| Main
material | D1 | L | L1 | M1 | D3 | CAD | Acc. | Price | Order |
|---|
| K0007.05 | steel | 5 | 18 | 13 | 0,7 | 10,7 |  | | 6.28 $ (USD) | | | K0007.06 | steel | 6 | 22 | 17 | 0,8 | 12,2 | | | 6.28 $ (USD) | | | K0007.081 | steel | 8 | 20 | 16 | 0,9 | 15,2 | | | 6.28 $ (USD) | | | K0007.082 | steel | 8 | 27 | 21 | 0,9 | 15,2 | | | 7.28 $ (USD) | | | K0007.08 | steel | 8 | 30 | 25 | 0,9 | 15,2 | | | 6.28 $ (USD) | | | K0007.101 | steel | 10 | 25 | 20 | 1,1 | 17,6 | | | 7.28 $ (USD) | | | K0007.102 | steel | 10 | 35 | 29 | 1,1 | 17,6 | | | 10.12 $ (USD) | | | K0007.10 | steel | 10 | 37 | 32 | 1,1 | 17,6 | | | 7.28 $ (USD) | | | K0007.121 | steel | 12 | 31 | 25 | 1,1 | 19,6 | | | 8.73 $ (USD) | | | K0007.122 | steel | 12 | 37 | 31 | 1,1 | 19,6 | | | 10.94 $ (USD) | | | K0007.12 | steel | 12 | 46 | 40 | 1,1 | 19,6 | | | 8.73 $ (USD) | | | K0007.14 | steel | 14 | 44 | 37 | 1,1 | 22 | | | 12.15 $ (USD) | | | K0007.16 | steel | 16 | 48 | 41 | 1,1 | 24,4 | | | 12.92 $ (USD) | | | K0007.18 | steel | 18 | 58 | 51 | 1,3 | 26,8 | | | 14.35 $ (USD) | | | K0007.105 | stainless steel | 5 | 18 | 13 | 0,7 | 10,7 | | | 9.43 $ (USD) | | | K0007.106 | stainless steel | 6 | 22 | 17 | 0,8 | 12,2 | | | 9.43 $ (USD) | | | K0007.108 | stainless steel | 8 | 20 | 16 | 0,9 | 15,2 | | | 9.43 $ (USD) | | | K0007.1081 | stainless steel | 8 | 27 | 21 | 0,9 | 15,2 | | | 9.43 $ (USD) | | | K0007.1082 | stainless steel | 8 | 30 | 25 | 0,9 | 15,2 | | | 10.89 $ (USD) | | | K0007.110 | stainless steel | 10 | 25 | 20 | 1,1 | 17,6 | | | 10.89 $ (USD) | | | K0007.1101 | stainless steel | 10 | 35 | 29 | 1,1 | 17,6 | | | 10.89 $ (USD) | | | K0007.1102 | stainless steel | 10 | 37 | 32 | 1,1 | 17,6 | | | 15.17 $ (USD) | | | K0007.112 | stainless steel | 12 | 31 | 25 | 1,1 | 19,6 | | | 13.09 $ (USD) | | | K0007.1121 | stainless steel | 12 | 37 | 31 | 1,1 | 19,6 | | | 13.09 $ (USD) | | | K0007.1122 | stainless steel | 12 | 46 | 40 | 1,1 | 19,6 | | | 16.42 $ (USD) | | | K0007.114 | stainless steel | 14 | 44 | 37 | 1,1 | 22 | | | 18.25 $ (USD) | | | K0007.116 | stainless steel | 16 | 48 | 41 | 1,1 | 24,4 | | | 19.37 $ (USD) | | | K0007.118 | stainless steel | 18 | 58 | 51 | 1,3 | 26,8 | | | 21.51 $ (USD) | |
|
|
|
