Riser bars

K0018

Riser bars

Products
- Clamping devices
  - Riser bars

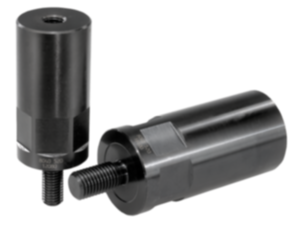

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidized.Note:The height of the hook clamps and hook clamp holders can be raised using these riser bars.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0018 Riser bars

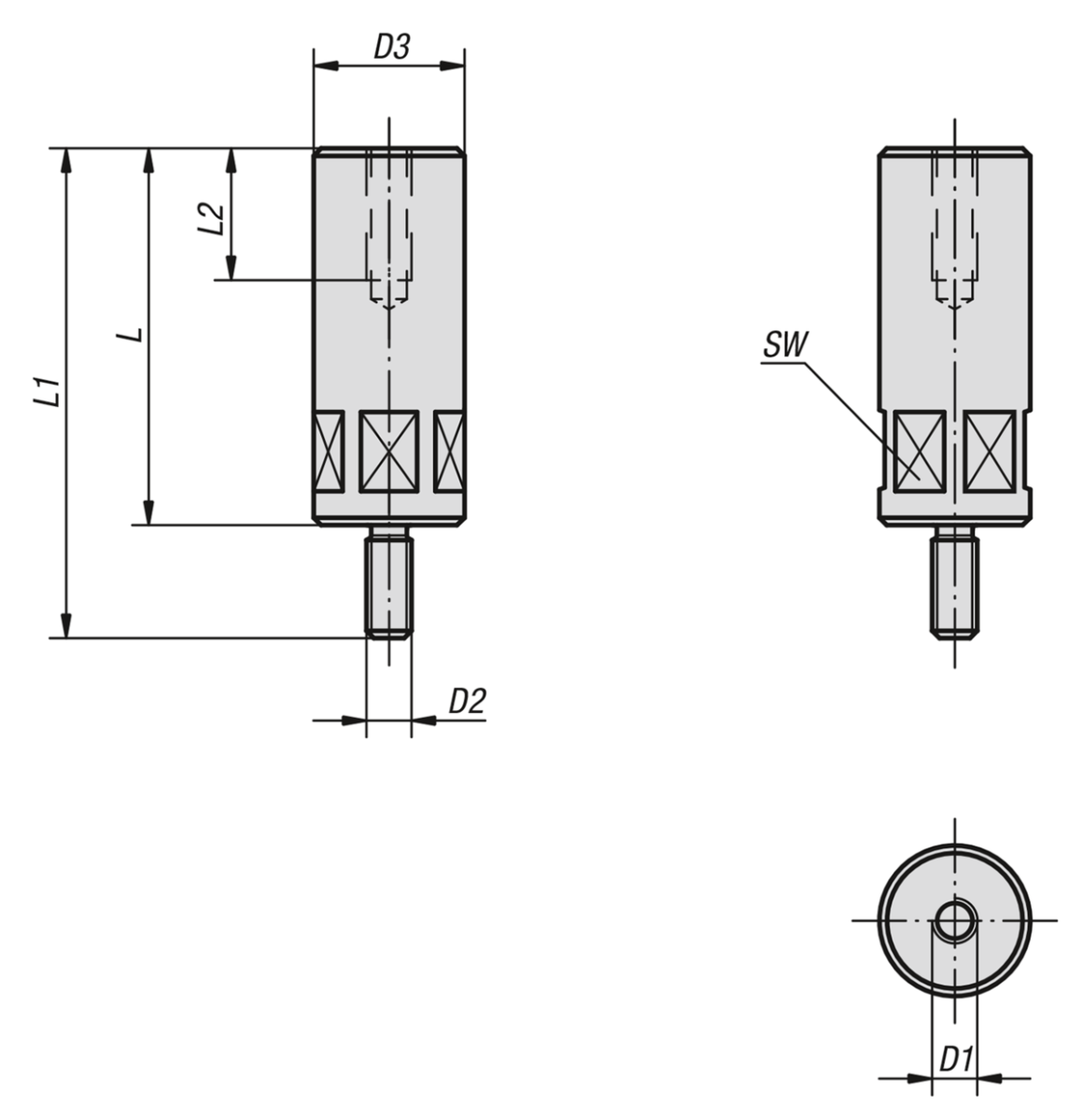

Drawings

Riser bars

Item selection/filter

Order No.	D1	D2	D3	L	L1	L2	SW	Max. tightening torque Nm	CAD	Acc.	Price	Order
K0018.08032	M8	M8	24	32	51	20	22	29,4			25.89 $ (USD)
K0018.08040	M8	M8	24	40	59	20	22	29,4			26.37 $ (USD)
K0018.08050	M8	M8	24	50	69	20	22	29,4			26.84 $ (USD)
K0018.08065	M8	M8	24	65	84	20	22	29,4			27.53 $ (USD)
K0018.12050	M12	M12	40	50	80	35	36	49			41.34 $ (USD)
K0018.12065	M12	M12	40	65	95	35	36	49			42.20 $ (USD)
K0018.12080	M12	M12	40	80	110	35	36	49			44.84 $ (USD)
K0018.12100	M12	M12	40	100	130	35	36	49			48.57 $ (USD)
K0018.12125	M12	M12	40	125	155	35	36	49			53.18 $ (USD)
K0018.12160	M12	M12	40	160	190	35	36	49			59.07 $ (USD)
K0018.12200	M12	M12	40	200	230	35	36	49			67.13 $ (USD)
K0018.16050	M16	M16	50	50	80	35	46	78,4			48.05 $ (USD)
K0018.16065	M16	M16	50	65	95	35	46	78,4			51.59 $ (USD)
K0018.16080	M16	M16	50	80	110	35	46	78,4			55.62 $ (USD)
K0018.16100	M16	M16	50	100	130	35	46	78,4			60.39 $ (USD)
K0018.16125	M16	M16	50	125	155	35	46	78,4			68.30 $ (USD)
K0018.16160	M16	M16	60	160	190	35	55	78,4			89.67 $ (USD)
K0018.16200	M16	M16	60	200	230	35	55	78,4			105.23 $ (USD)
