Fixture clamps unequal hexagon
K0023

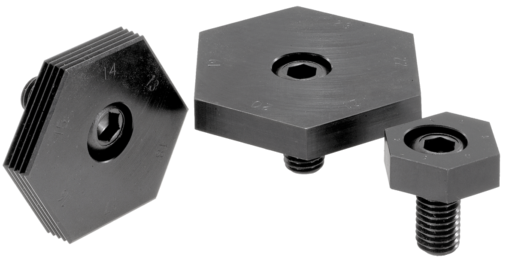

Fixture clamps unequal hexagon

go back

Item description/product images

DescriptionMaterial:Cam screw steel tempered to 10.9.
Hexagon washer mild steel.
Version:Cam screw black oxide finish.
Hexagon washer hardened and black oxide finish.
Note:Theses unequal hexagon fixture clamps can minimise the cost of clamping in fixtures. The clamping range can be altered up to 17 mm from the same tapped hole. Simply rotate the hexagon washer.
On request:Replacement cam screws.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0023 Fixture clamps unequal hexagon 165 kB

Drawings

Fixture clamps unequal hexagon

Item selection/filter

Item No.StyleVersion

Distance A
by face No.
DHH1S
(cam travel)
Clamping
force
kN
CADAcc.PriceOrder
K0023.09Asmooth finish1/12, 2/13, 3/14, 4/15, 5/16, 6/17M121022118 113.63 $ (USD)
K0023.10Asmooth finish7/18, 8/19, 9/20, 10/21, 11/22, 12/23M121022118 125.87 $ (USD)
K0023.11Asmooth finish13/24, 14/25, 15/26, 16/27, 17/28, 18/29M121022118 138.77 $ (USD)
K0023.13Bnotched finish1/12, 2/13, 3/14, 4/15, 5/16, 6/17M121022118 123.34 $ (USD)
K0023.14Bnotched finish7/18, 8/19, 9/20, 10/21, 11/22, 12/23M121022118 133.54 $ (USD)
K0023.15Bnotched finish13/24, 14/25, 15/26, 16/27, 17/28, 18/29M121022118 149.44 $ (USD)
