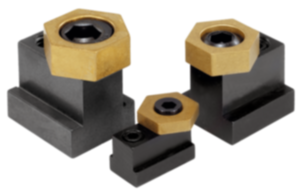

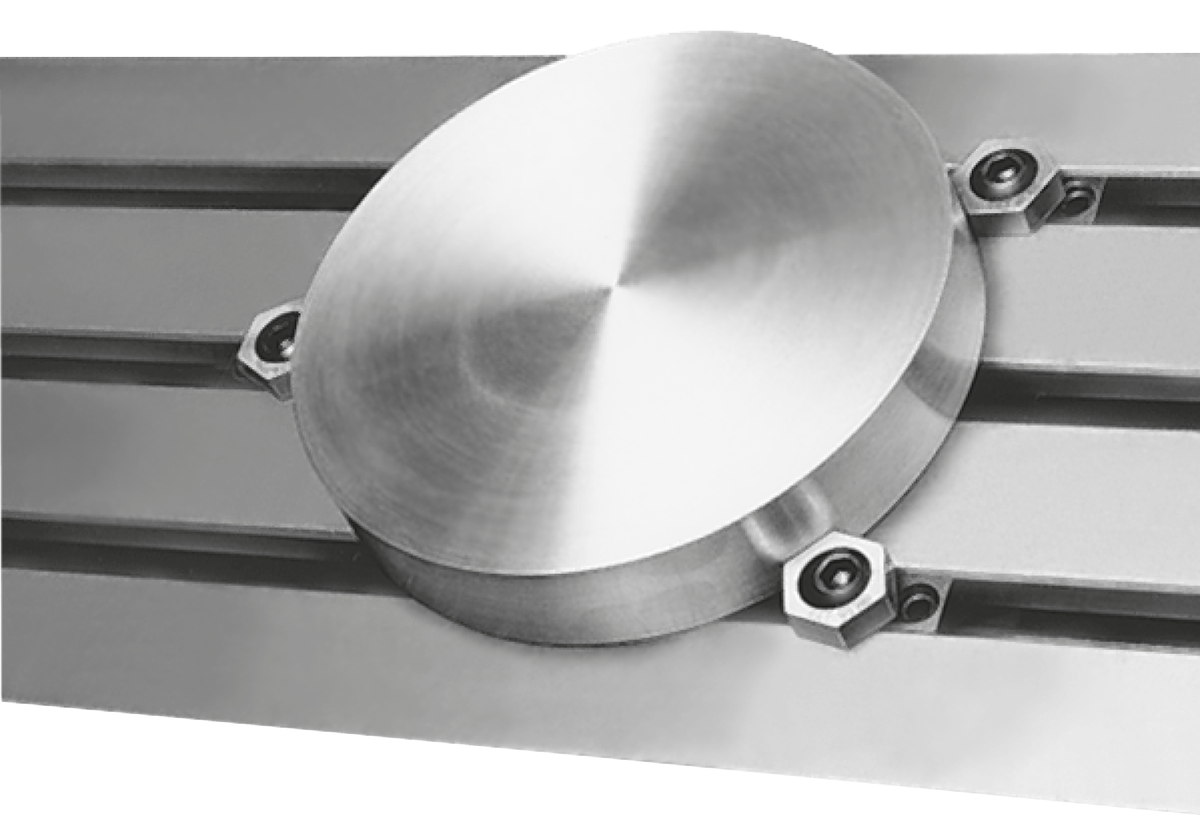

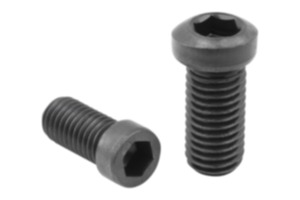

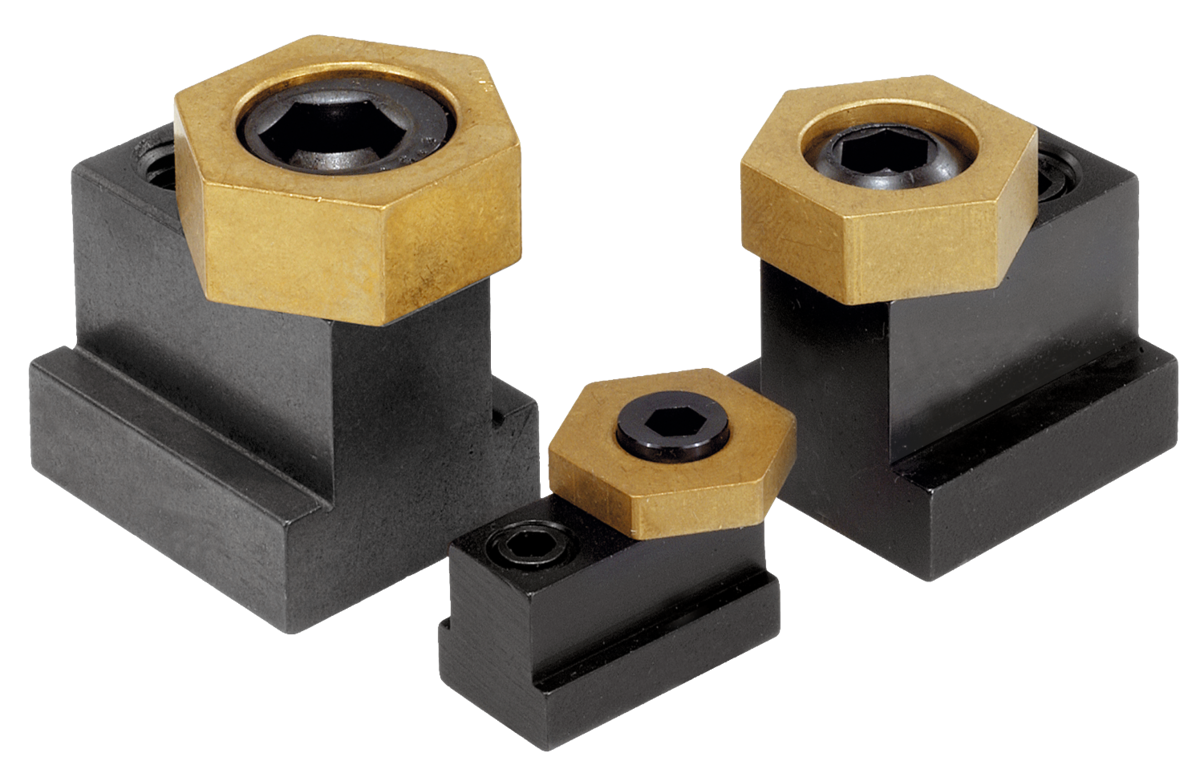

DescriptionMaterial:Carbon steel. Hex washer brass.Version:Tempered to 10.9 and black oxidized.Note:Also called fixture clamps for T-slots. These fixture clamps can be used directly on machine tables or other tables with T-slots. The grub screw at the rear locks the T-nut in the slot. Thin shims are recommended to prevent marking the bottom of the T-slot.On request:Replacement cam screws.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
