Toe clamps for T-slots
K0029

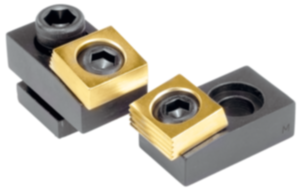

Toe clamps for T-slots

go back

Item description/product images

DescriptionMaterial:Steel.Version:Body tempered and black oxide finish.
Square washer case hardened and brass-plated.
Note:These toe clamps can be used on machine tables or adapter plates. The positive down force holds the workpiece down on the supporting surface. The square washer can adapt slightly to an angular position i.e. the workpiece does not have to be exactly parallel. The clamping washer has a smooth side for machined surfaces and a serrated side for rough faces.On request:Replacement cam screws.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0029 Toe clamps for T-slots 216 kB

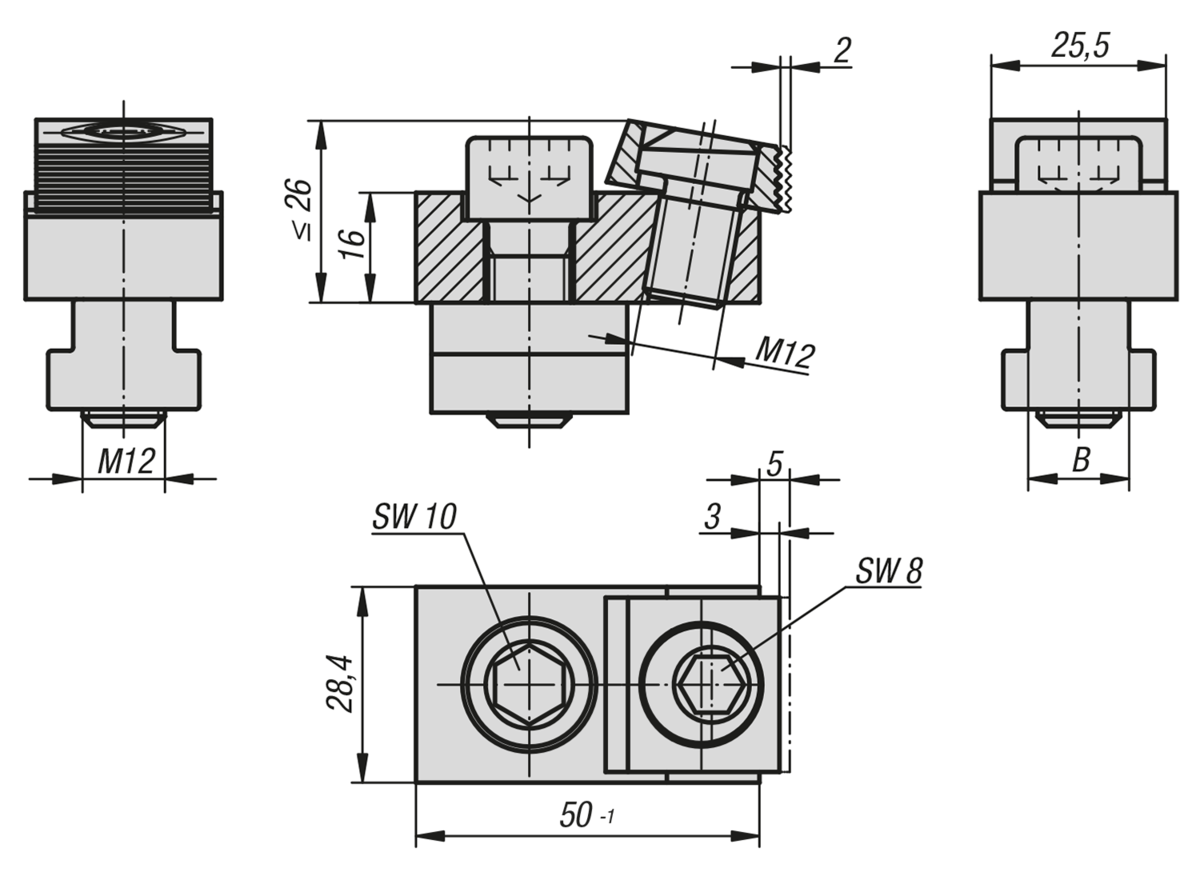

Drawings

Toe clamps for T-slots

Item selection/filter

Item No.

B
Slot width
Clamping
force
kN
CADAcc.PriceOrder
K0029.00without T-nut and screw18 on request
K0029.141418 on request
K0029.161618 on request
K0029.181818 on request
