Material
Channel aluminum profile.
Wedge hardened steel.
Wedge hardened steel.
Version
Channel anodized.
Wedge black oxidized.
Wedge black oxidized.
Show more
Show less
Description
Material
Channel aluminum profile.
Wedge hardened steel.
Wedge hardened steel.
Version
Channel anodized.
Wedge black oxidized.
Wedge black oxidized.
Note

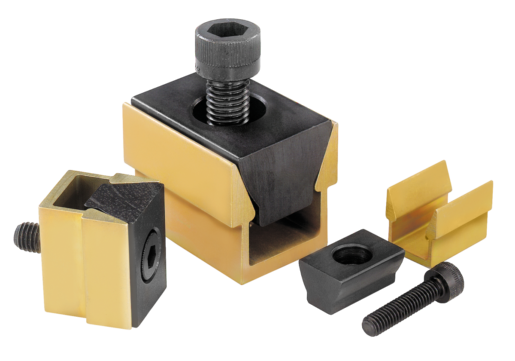

Two workpieces can be held simultaneously with the wedge clamp. They are ideal for clamping round or rectangular pieces. The compact design allows space-saving series clamping.

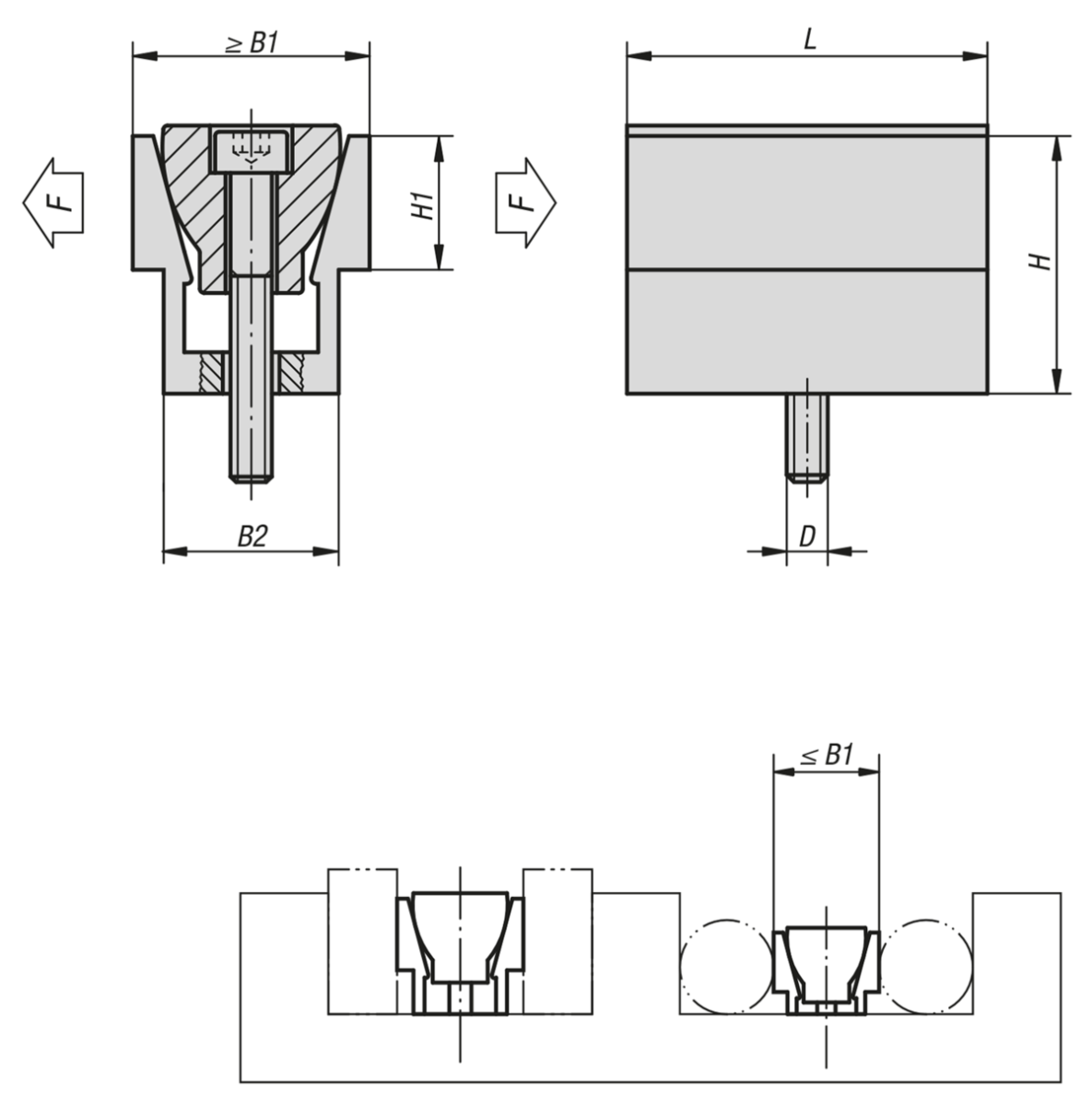

Drawing reference
In clamped position dimension B1 max. given in the table should be achieved.
Important note on downloading CAD models
You must log in before you can download our CAD models. If you have not yet created an account, please register under "My account" (right-hand side of the screen) and follow the instructions.
Discover our product range
