Wedge clamps machinable
K0038

Wedge clamps machinable

go back

Item description/product images

DescriptionMaterial:Channel aluminum profile.
Wedge hardened steel.
Version:Channel anodized.
Wedge black oxidized.

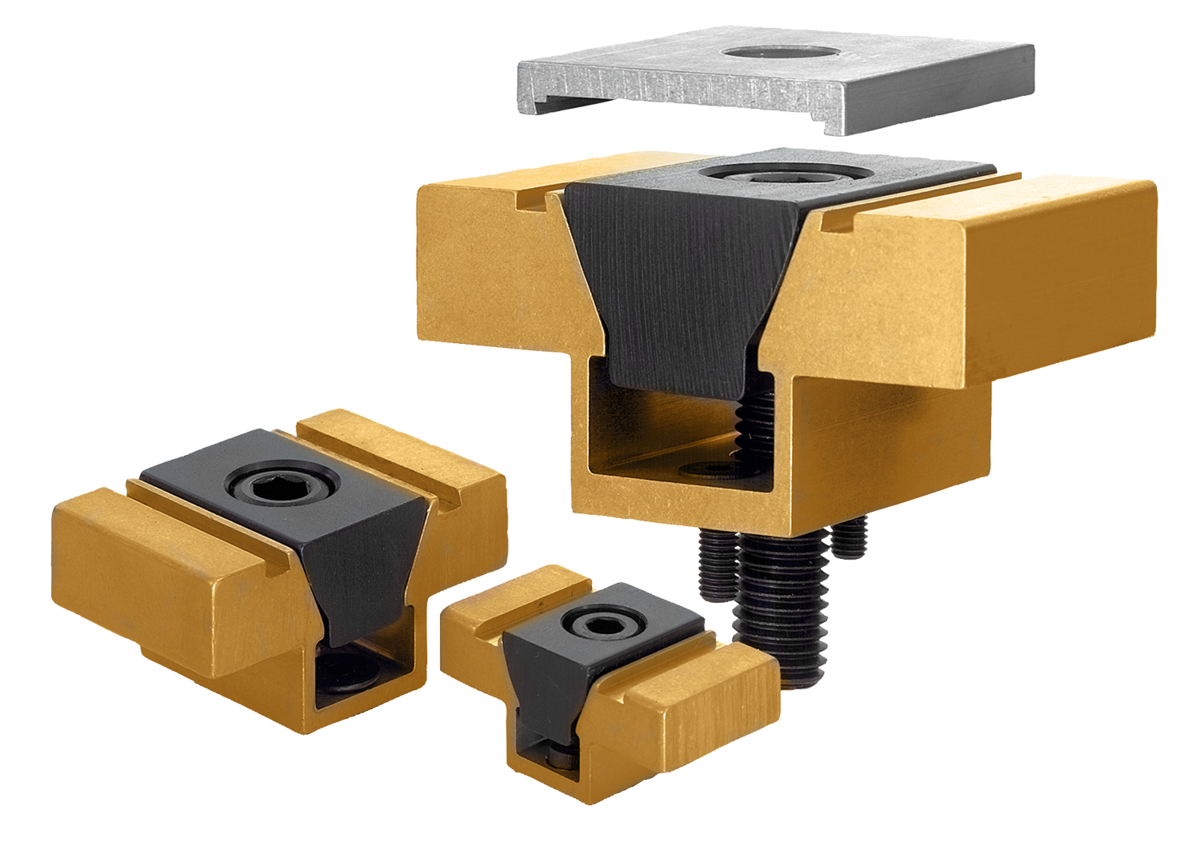

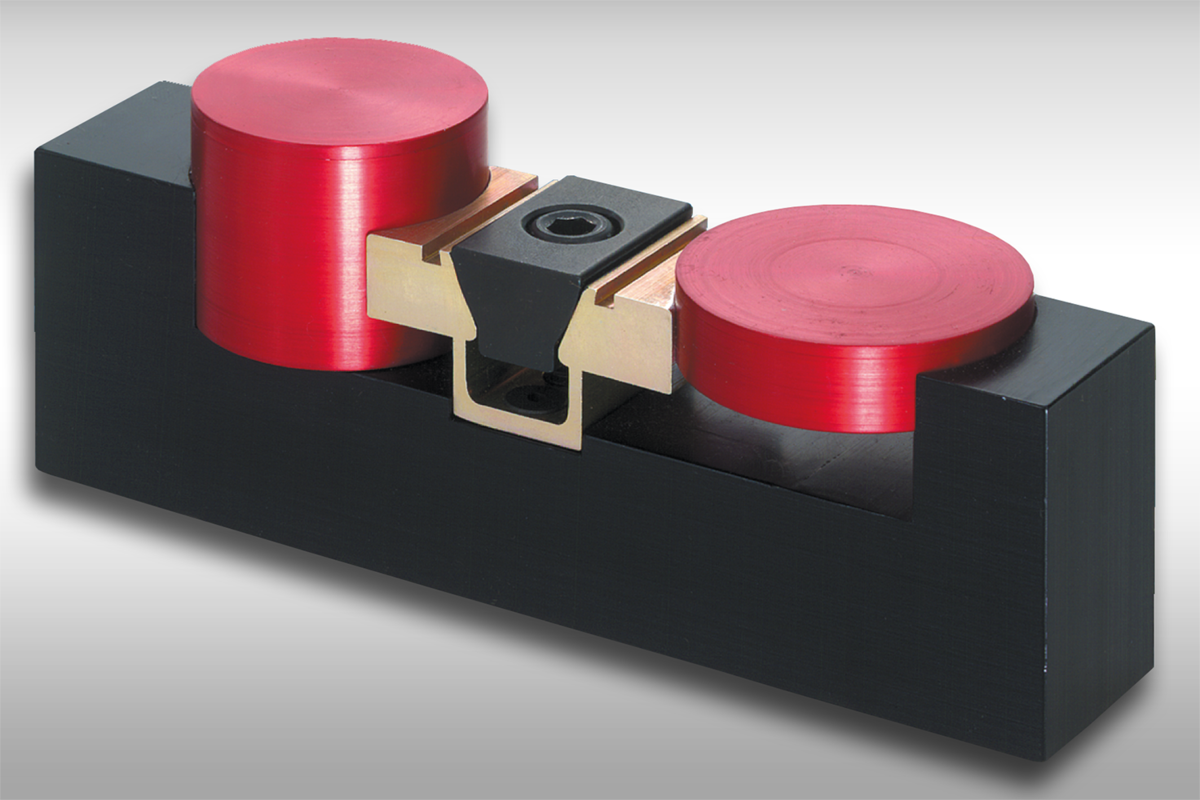

Note:Two workpieces can be held simultaneously with the wedge clamp. The jaws have extra material allowing them to be machined to constyle to the shape of the workpiece. The compact design allows space-saving series clamping.Drawing reference:
1) The locking plate is only used for machining the style, not for clamping the workpiece.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0038 Wedge clamps machinable 239 kB

Drawings

Wedge clamps machinable

Item selection/filter

Item No.

DD1LL1B1
min. - max.
B2B3HH1Clamping
force
max. kN
Max. tightening
torque Nm
CADAcc.PriceOrder
K0038.04M4M215,710,1628,6 - 29,110,64,612,76,32,23,4 76.30 $ (USD)
K0038.06M6M423,915,938,1 - 3916,16,619,19,46,714,3 80.38 $ (USD)
K0038.08M8M431,820,650,8 - 5220,89,925,412,78,914,5 111.65 $ (USD)
K0038.12M12M547,530,576,2 - 7830,915,738,11915,638,4 309.90 $ (USD)
K0038.16M16M663,541,28101,6 - 103,941,320,350,825,426,774,6 505.57 $ (USD)
