Product groups
Wedge clamps machinable
K0041

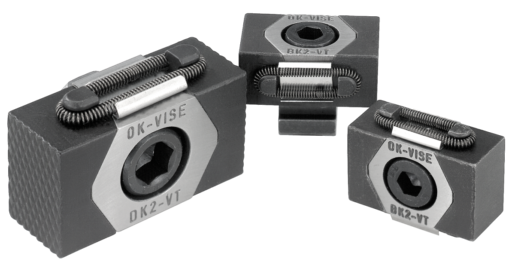

Wedge clamps machinable

go back

Item description/product images

DescriptionMaterial:Body tool steel.
Jaw segments tool steel (30 HRC).
Version:Body hardened.
Jaw segments black oxide finish.
Wedge faces ground.
Note:

These wedge clamps have a machining allowance per jaw of 3 mm for version K0041.08 and 5 mm for versions K0041.12 and K0041.16.
This extra material allows the jaws to machined to suit the style of the workpiece.

The jaws version K0041.08 and K0041.0810 are not serrated.

Spread width:
K0041.08 = ±0.5 mm
K0041.12 = ±1.0 mm
K0041.16 = ±1.5 mm

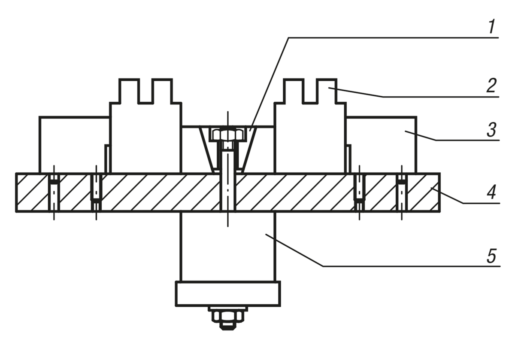

Drawing reference:
D) DIN 912 cap screw

1) wedge clamps
2) workpiece
3) fixed stop
4) base plate
5) hydraulic/pneumatic cylinder
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0041 Wedge clamps machinable 270 kB

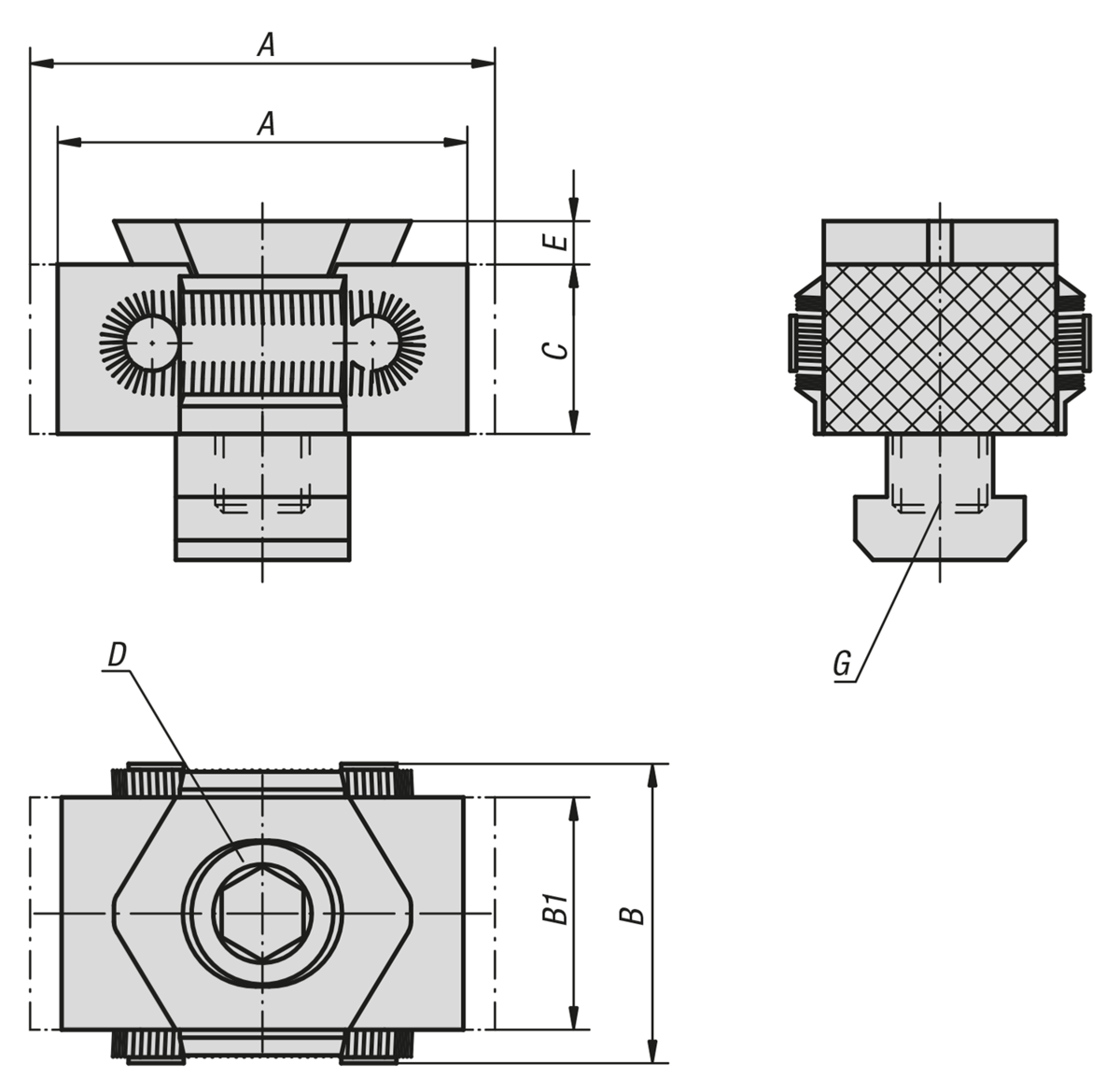

Drawings

Wedge clamps machinable

Item selection/filter

Item No.A
min.
A
max.
BB1CDETypeGClamping
force
max. kN
Tightening
torque
max. Nm
CADAcc.PriceOrder
K0041.083337292115M8X252,5for tapped hole-1525on request
K0041.08103337292115M8X252,5for t-slot-1525on request
K0041.125259413022M12X404for tapped hole-3085on request
K0041.12145259413022M12X304for t-slot-3085on request
K0041.166776564229M16X605for tapped hole-50210on request
K0041.16186776564229M16X505for t-slot-50210on request
