Product groups
centering clamps with ball or hexagon segments
K0358

centering clamps with ball or hexagon segments

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Body 1.2842.
Ball and hex segments 1.4112 (AISI 440B equivalent).
Tension spring 1.4310 (AISI 310 equivalent).
Version:Body hardened and black oxide finish.
Ball and hex segments hardened and ground.
Technical data:Repetitive accuracy ±0.025
Concentric accuracy ±0.05
Application:To position and center existing bores on the machining surface.Benefits:- Precise self-centering.
- Distortion free clamping.
- Large spread range.
- Low overall height.
Drawing reference:

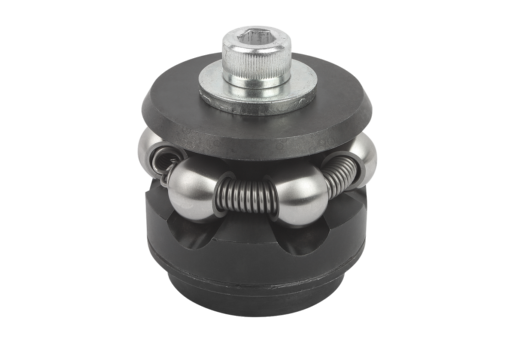

Style A:
With balls for holes where light marking is acceptable.

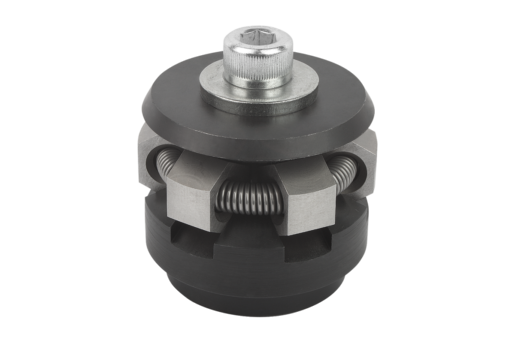

Style B:
With hexagons for sensitive hole surfaces.

1) Mounting aid:
pin to accurately position the mandrel segments.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0358 centering clamps with ball or hexagon segments 273 kB

Drawings (total overview)

centering clamps with ball or hexagon segments

centering clamp with ball segments, style A

More information

Drawings

centering clamp with ball segments, style A

Item selection/filter

Item No.StyleAD max.D
min.
D1D2D3D4HH1H2H3H4LMSWBall ØNo. of
balls
Clamping
force
max. kN
Tightening
torque
max. Nm
CADAcc.PriceOrder
K0358.101203A3,514,211,7M4101,54,315104,231,53,52,532,530,55on request
K0358.101504A4,518,514,5M41224,319,514,59,88,62,35,533433,55on request
K0358.101905A5,522,518,5M5152,55,323,516,511,610,42,37,53443410on request
K0358.102306A726,522,5M62036,428,819,814,2132,3645434,517on request
K0358.102706A730,526,5M62036,428,819,814,2132,364,55434,517on request
K0358.103106A938,530,5M62546,432,723,114,211,94,674,55834,517on request
K0358.103908A1146,538,5M83048,439,227,217,815,54,67,54,56866,543on request
K0358.104708A1154,546,5M83048,439,227,21815,74,67,54,56866,543on request
K0358.105510A1570,554,5M1045510,554,640,623,719,19,395,58166879on request
K0358.107112A1786,570,5M126051363,146,128,323,79,3105,51016610141on request
K0358.108712A25102,586,5M1660517735130,225,79,3105,51416612,5354on request

centering clamp with hexagonal segments, style B

More information

Drawings

centering clamp with hexagonal segments, style B

Item selection/filter

Item No.StyleA

D
min.
D
max.
D1D2D3D4HH1H2H3H4LMKSWNo. of
hex
Clamping
force
max. kN
Tightening
torque
max. Nm
CADAcc.PriceOrder
K0358.201504B4,514,518,5M41224,319,514,59,88,62,35,534333,55on request
K0358.201905B5,518,522,5M5152,55,323,516,511,610,42,37,53443410on request
K0358.202306B722,526,5M62036,428,819,814,2132,3644534,517on request
K0358.202706B726,530,5M62036,428,819,814,2132,364,54534,517on request
K0358.203106B930,538,5M62546,432,723,114,211,94,674,58534,517on request
K0358.203908B1138,546,5M83048,439,227,217,815,54,67,54,58666,543on request
K0358.204708B1146,554,5M83048,439,227,21815,74,67,54,58666,543on request
K0358.205510B1554,570,5M1045510,554,640,623,719,19,395,51686879on request
K0358.207112B1770,586,5M126051363,146,128,323,79,3105,51610610141on request
K0358.208712B2586,5102,5M1660517735130,225,79,3105,51614612,5354on request
