Product groups
Shaft clamping units
K0375

Shaft clamping units

go back

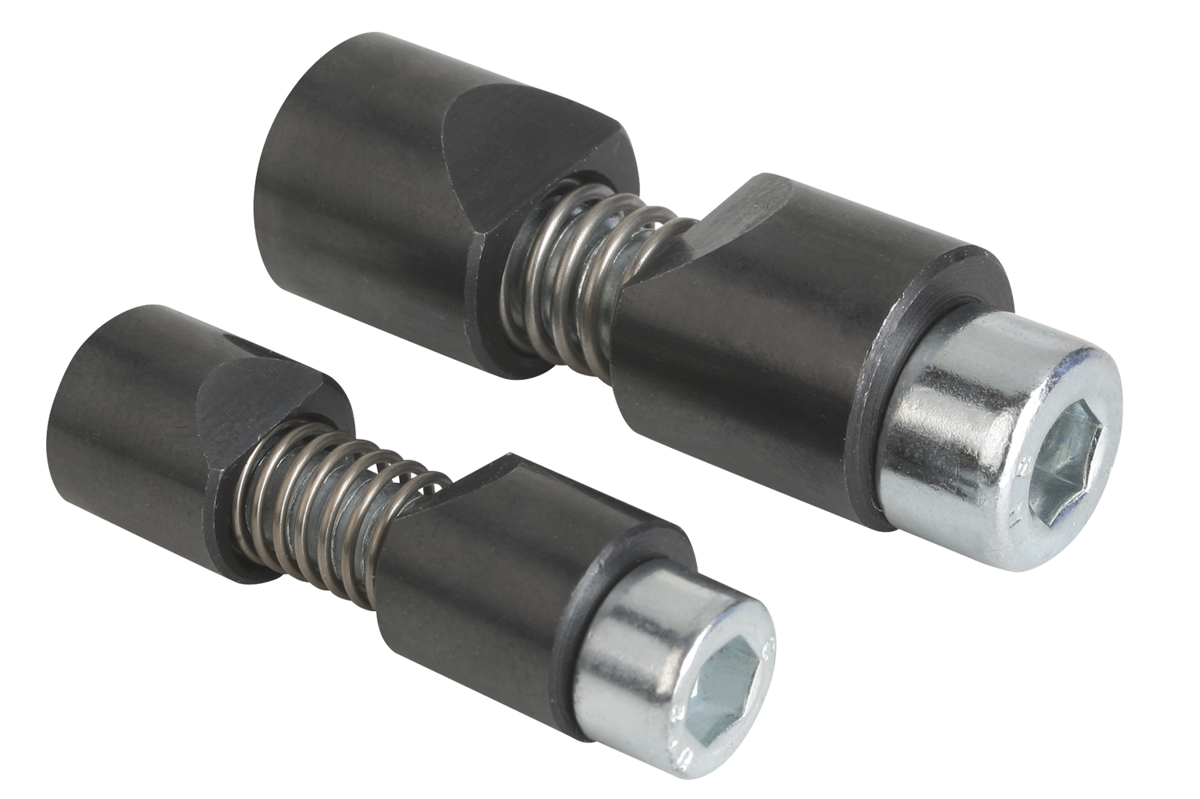

Item description/product images

DescriptionMaterial:Jaws steel.
Spring 1.4310 (AISI 301 equivalent).
Screw grade 8.8.
Version:Jaws black oxidized.
Screw blue electro zinc-plated.
Note:These shaft clamping units are the simple alternative to conventional shaft clamping (slot and grub screw).
The units are suitable for various materials (metal, plastic, wood etc).
To loosen a jammed clamp simply hit it axially or extract it using a screw in the jaw end or screw head.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0375 Shaft clamping units 187 kB

Drawings

Shaft clamping units

Item selection/filter

Item No.

D
min.
D
max.
D1D2D3GG1HL
max.
L1SWXClamping torque Mx
Nm
Tightening
torque
max. Nm
Item No.
installation
tool
CADAcc.PriceOrder
K0375.0461088M4M5M2,5427832,8max. 202,9K0375.904  38.42 $ (USD)
K0375.0510151010M5M6M35331043,3max. 456K0375.905  40.10 $ (USD)
K0375.0615201212M6M7M46391253,5max. 10010K0375.906  42.32 $ (USD)
K0375.0820301616M8M10M58461664max. 17025K0375.908  46.50 $ (USD)
K0375.1030402020M10M12M610532084,8max. 29046K0375.910  50.10 $ (USD)
K0375.1240602525M12M14M8127025105,6max. 45082K0375.912  56.45 $ (USD)
K0375.16601253030M16M18M10168130147,9max. 650206K0375.916  64.03 $ (USD)
