Star gripssimilar to DIN 6336
K0152

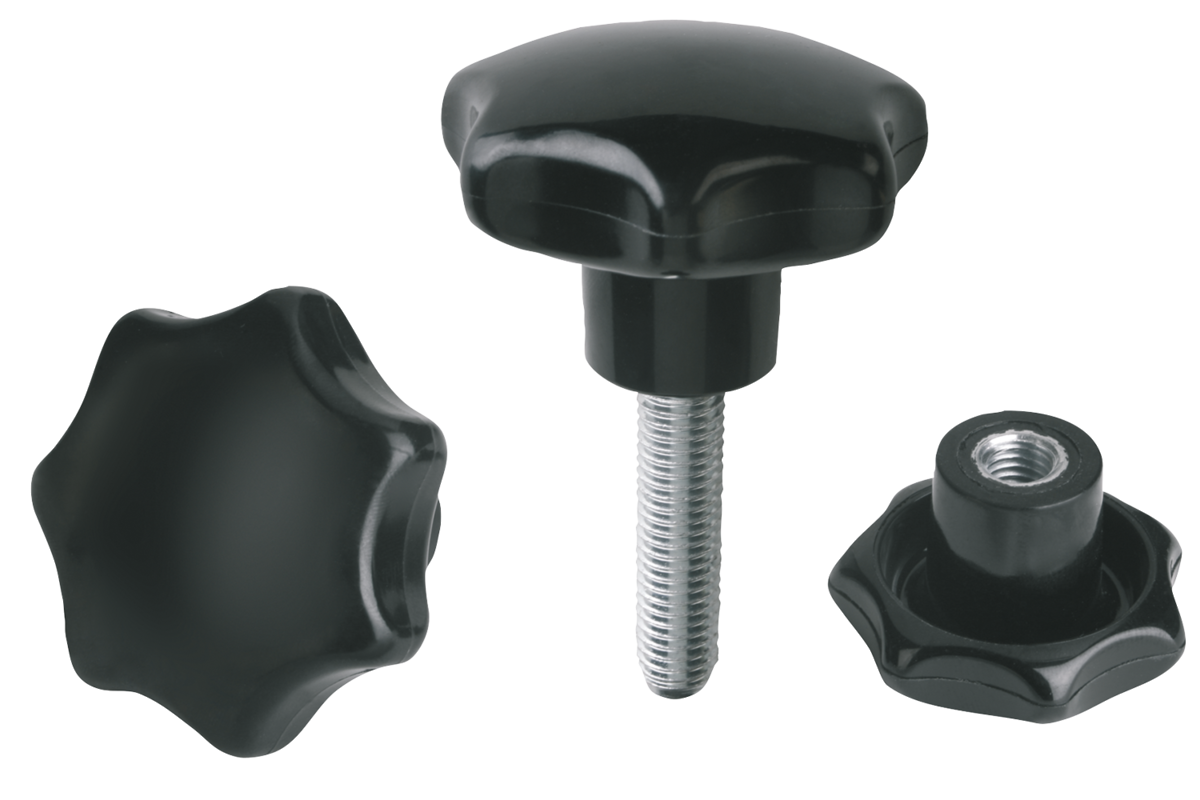

Star grips similar to DIN 6336

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Thermoset PF 31, black.
Bushing and screw steel, trivalent blue passivated.
Version:High-polish finish.Note:The version K0152.22004 has a brass bushing.On request:Other colors.Drawing reference:
style K: tapped bushing
style L: external thread
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0152 Star gripssimilar to DIN 6336 146 kB

Drawings (total overview)

Star gripssimilar to DIN 6336

Star grips similar to DIN 6336 with external thread, style L

More information

Drawings

Star grips similar to DIN 6336 with external thread, style L

Item selection/filter

Item No.StyleDD1D8HH3LCADAcc.PriceOrder
K0152.42505X15LM5251216815on request
K0152.42505X20LM5251216820on request
K0152.42505X25LM5251216825on request
K0152.43206X15LM63214201015on request
K0152.43206X20LM63214201020on request
K0152.43206X25LM63214201025on request
K0152.43206X30LM63214201030on request
K0152.44008X20LM84018251320on request
K0152.44008X25LM84018251325on request
K0152.44008X30LM84018251330on request
K0152.44008X35LM84018251335on request
K0152.44008X40LM84018251340on request
K0152.45010X25LM105022321725on request
K0152.45010X30LM105022321730on request
K0152.45010X35LM105022321735on request
K0152.45010X40LM105022321740on request
K0152.45010X50LM105022321750on request
K0152.46312X30LM126326402130on request
K0152.46312X35LM126326402135on request
K0152.46312X40LM126326402140on request
K0152.46312X50LM126326402150on request
K0152.46312X60LM126326402160on request
K0152.48016X30LM168035502530on request
K0152.48016X40LM168035502540on request
K0152.48016X50LM168035502550on request
K0152.48016X60LM168035502560on request

Star grips similar to DIN 6336 with internal thread, style K

More information

Drawings

Star grips similar to DIN 6336 with internal thread, style K

Item selection/filter

Item No.

StyleDD1D8HH3TCADAcc.PriceOrder
K0152.22004KM420101376,5on request
K0152.22505KM525121689,5on request
K0152.23206KM63214201012on request
K0152.24008KM84018251314on request
K0152.25010KM105022321718on request
K0152.26312KM126326402122on request
K0152.28016KM168035502530on request
