Product groups

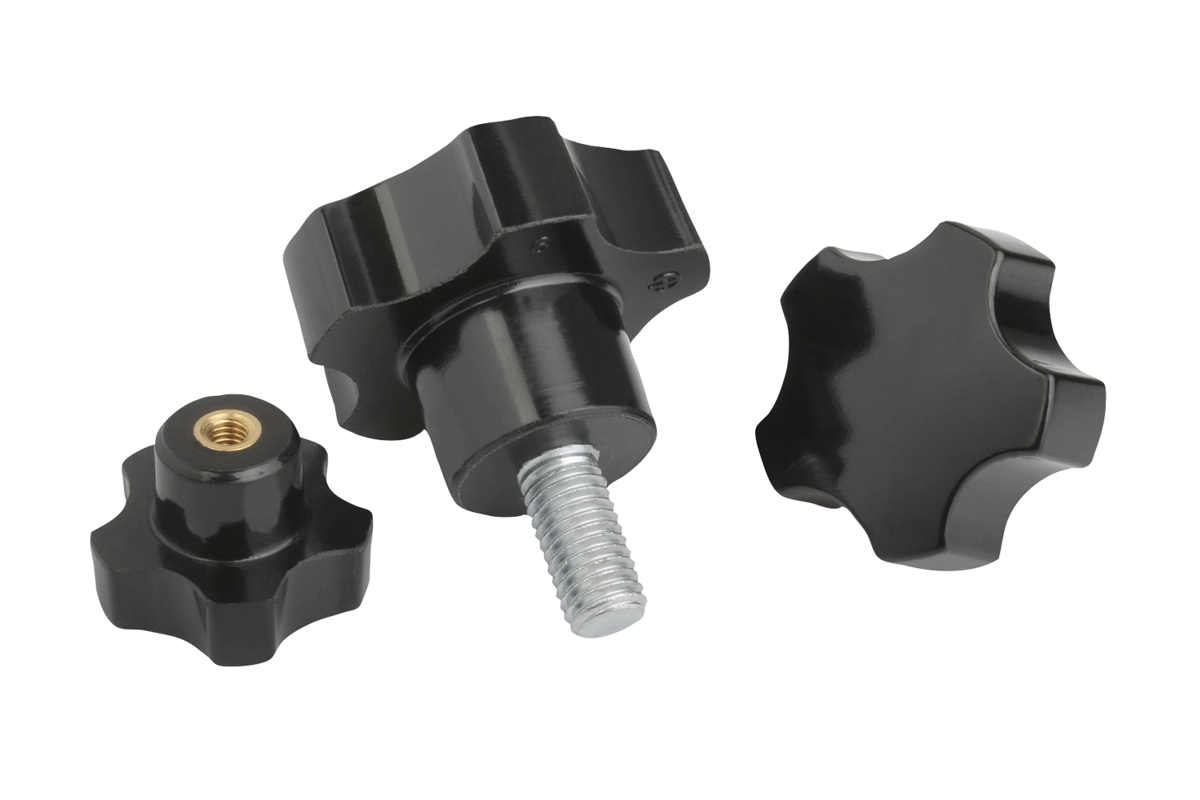

Five lobe grips
K0185

Five lobe grips

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Thermoset PF 31, black.
Steel bushing and stud, electro zinc-plated.
Version:High-polish finish.Note:The versions K0185.3205 and K0185.3206 have a brass bushing.On request:Other screw sizes, screw lengths and colors.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0185 Five lobe grips 144 kB

Drawings (total overview)

Five lobe grips

Five lobe grips with external thread

More information

Drawings

Five lobe grips with external thread

Item selection/filter

Item No.StyleDD1D3HH1LCADAcc.PriceOrder
K0185.3206X12LM6321622,411,212 on request
K0185.3206X18LM6321622,411,218 on request
K0185.3208X16LM8321622,411,216 on request
K0185.3208X24LM8321622,411,224 on request
K0185.4006X18LM64020281418 on request
K0185.4008X16LM84020281416 on request
K0185.4008X20LM84020281420 on request
K0185.4008X24LM84020281424 on request
K0185.4010X30LM104020281430 on request
K0185.5008X16LM850253517,516 on request
K0185.5008X24LM850253517,524 on request
K0185.5010X20LM1050253517,520 on request
K0185.5010X30LM1050253517,530 on request

Five Lobe Grips with internal thread

More information

Drawings

Five Lobe Grips with internal thread

Item selection/filter

Item No.

StyleDD1D3HH1TCADAcc.PriceOrder
K0185.3205KM5321622,411,210 on request
K0185.3206KM6321622,411,29 on request
K0185.4006KM64020281412 on request
K0185.4008KM84020281414 on request
K0185.4010KM104020281414 on request
K0185.5008KM850253517,514 on request
K0185.5010KM1050253517,514 on request
