Product groups
Clamping grips high style
K0280

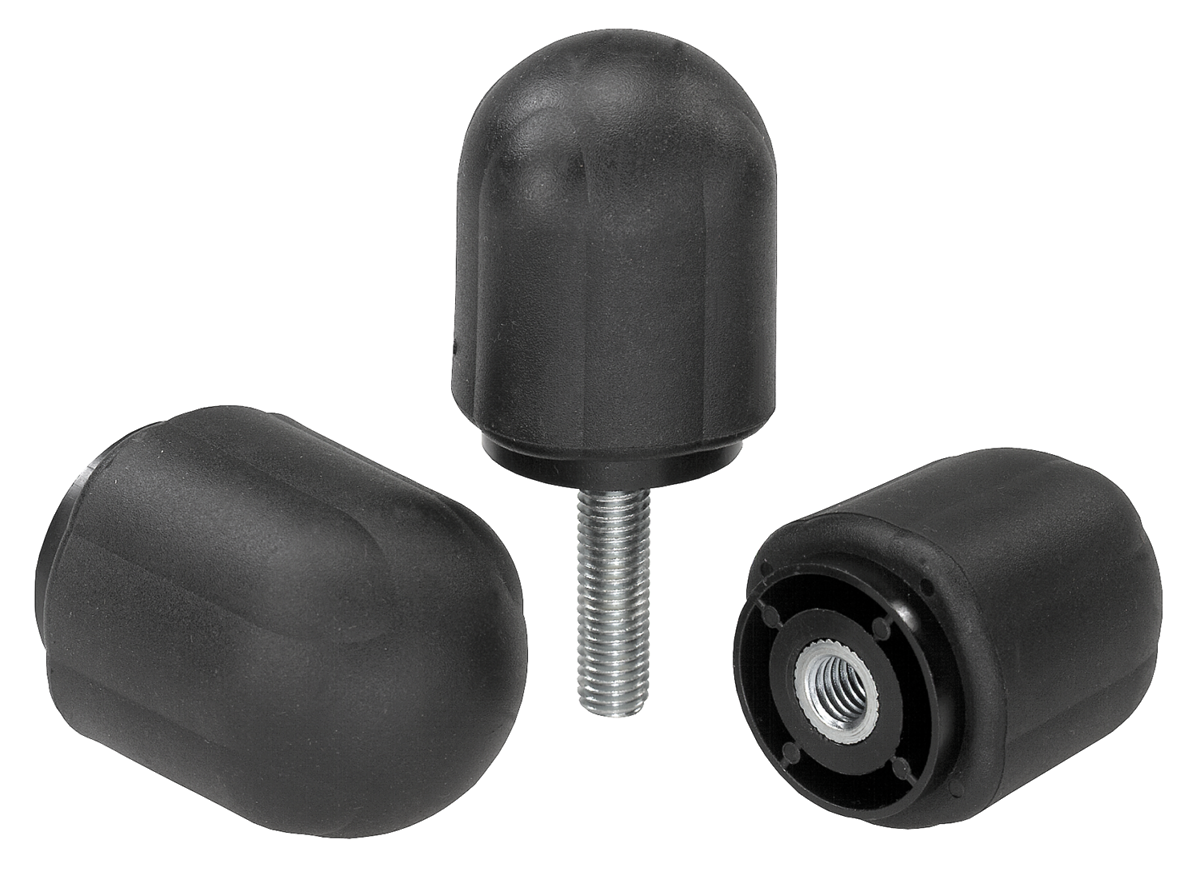

Clamping grips high style

go back

Item description/product images

Show/filter all items
DescriptionProduct description:These grips are distinguished by their unusual design. The high form permits high clamping forces while being gentle to the hand.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bushing brass.
Screw electro zinc-plated steel grade 5.8.
Note:SYMPA TOUCH high form clamping grips are available in 2 grip sizes with internal and external threads.On request:Other screw sizes, screw lengths, versions and colors.
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0280 Clamping grips high style 230 kB

Drawings (total overview)

Clamping grips high style

High clamping grips with internal thread

More information

Drawings

High clamping grips with internal thread

Item selection/filter

Item No.

StyleDD1D2HH1TCADAcc.PriceOrder
K0280.4206KM642,73455,64,812,5on request
K0280.4208KM842,73455,64,812,5on request
K0280.4210KM1042,73455,64,812,5on request
K0280.4212KM1242,73455,64,812,5on request
K0280.4706KM647,838,162,25,612,5on request
K0280.4708KM847,838,162,25,612,5on request
K0280.4710KM1047,838,162,25,612,5on request
K0280.4712KM1247,838,162,25,612,5on request

High clamping grips with external thread

More information

Drawings

High clamping grips with external thread

Item selection/filter

Item No.StyleDD1D2HH1LCADAcc.PriceOrder
K0280.4206X15LM642,73455,64,815on request
K0280.4206X20LM642,73455,64,820on request
K0280.4206X25LM642,73455,64,825on request
K0280.4206X35LM642,73455,64,835on request
K0280.4208X16LM842,73455,64,816on request
K0280.4208X25LM842,73455,64,825on request
K0280.4208X35LM842,73455,64,835on request
K0280.4210X20LM1042,73455,64,820on request
K0280.4210X30LM1042,73455,64,830on request
K0280.4210X40LM1042,73455,64,840on request
K0280.4210X50LM1042,73455,64,850on request
K0280.4706X20LM647,838,162,25,620on request
K0280.4706X35LM647,838,162,25,635on request
K0280.4708X35LM847,838,162,25,635on request
K0280.4710X40LM1047,838,162,25,640on request
K0280.4710X50LM1047,838,162,25,650on request
