Star grips similar to DIN 6336 metal parts stainless steel
K1016

Star grips similar to DIN 6336 metal parts stainless steel

go back

Item description/product images

DescriptionMaterial:Thermoset PF 31, black.
Bushing or threaded pin stainless steel 1.4301 (AISI 304 equivalent).
Version:High-polish finish.On request:Other colors.Drawing reference:

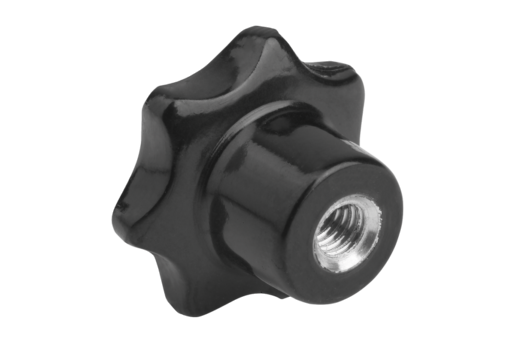

style K: tapped bushing

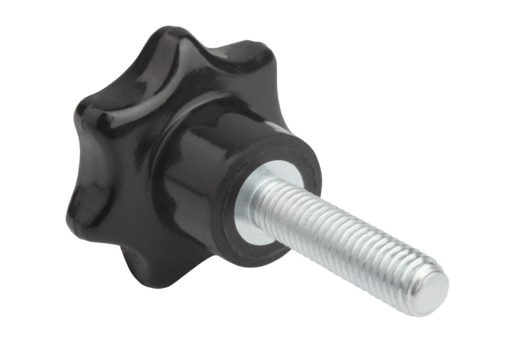

style L: external thread
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1016 Star grips similar to DIN 6336 metal parts stainless steel 135 kB

Drawings (total overview)

Star grips similar to DIN 6336 metal parts stainless steel

Star grips similar to DIN 6336, metal parts stainless steel style L with external thread

More information

Drawings

Star grips similar to DIN 6336, metal parts stainless steel style L with external thread

Item selection/filter

Item No.

Style

DD1D8HH3LCADAcc.PriceOrder
K1016.43206X15LM63214201015 on request
K1016.43206X20LM63214201020 on request
K1016.43206X25LM63214201025 on request
K1016.43206X30LM63214201030 on request
K1016.44008X20LM84018251320 on request
K1016.44008X25LM84018251325 on request
K1016.44008X30LM84018251330 on request
K1016.44008X40LM84018251340 on request

Star grips similar to DIN 6336 metal parts stainless steel style K with tapped bushing

More information

Drawings

Star grips similar to DIN 6336 metal parts stainless steel style K with tapped bushing

Item selection/filter

Item No.

Style

DD1D8HH3TCADAcc.PriceOrder
K1016.23206KM63214201012 on request
K1016.24008KM84018251314 on request
K1016.25010KM105022321718 on request
K1016.26312KM126326402122 on request
