Crank handles with safety grip, with square socket
K0268_IV

Crank handles with safety grip, with square socket

go back

Item description/product images

DescriptionMaterial:Crank thermoplastic.
Cylinder grip thermoplastic and steel.
Version:Black gray thermoplastic.
Steel parts black oxidized.

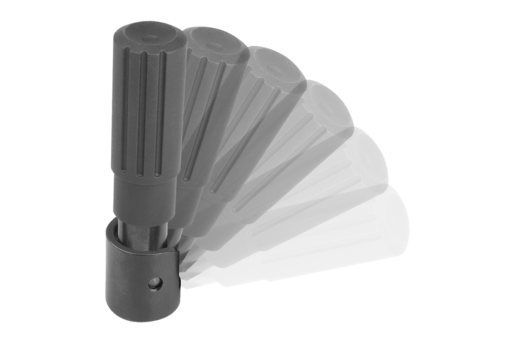

Note:The hub cover is supplied unassembled. Two actions must be made to bring the safety cylinder grip into an operating position:
- Swing the grip out around the pivot shaft until it stops (90°).
- Push the grip in an axial direction into the lock position. The pushed-in position is the most comfortable for cranking. The grip swings back automatically after releasing.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Accessory:K1160 Cap screws with low head DIN 6912Drawing reference:
1) Position of the transverse bore to the keyway is offset by 90°.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0268_IV Crank handles with safety grip, with square socket 522 kB

Drawings

Crank handles with safety grip, with square socket

Item selection/filter

Item No.

Version 1Version 2ADD7HH1H2H3H4LL2SWCADAcc.PriceOrder
K0268.2108square socketwithout transverse hole8024-84,247,528,513-10412,78 73.18 $ (USD)
K0268.2110square socketwithout transverse hole8024-84,247,528,513-10412,710 73.18 $ (USD)
K0268.2210square socketwithout transverse hole10029-104,258,535,513-12915,710 73.98 $ (USD)
K0268.2212square socketwithout transverse hole10029-104,258,535,513-12915,712 73.98 $ (USD)
K0268.2312square socketwithout transverse hole12536-139824418,5-16119,512 75.00 $ (USD)
K0268.2314square socketwithout transverse hole12536-139824418,5-16119,514 75.00 $ (USD)
K0268.21086square socketwith transverse bore8024M684,247,528,5137,510412,78 78.89 $ (USD)
K0268.21106square socketwith transverse bore8024M684,247,528,5137,510412,710 78.89 $ (USD)
K0268.22106square socketwith transverse bore10029M6104,258,535,5137,512915,710 79.68 $ (USD)
K0268.22126square socketwith transverse bore10029M6104,258,535,5137,512915,712 79.68 $ (USD)
K0268.23126square socketwith transverse bore12536M6139824418,57,516119,512 80.69 $ (USD)
K0268.23146square socketwith transverse bore12536M6139824418,57,516119,514 80.69 $ (USD)
