Item description/product images |
|
|

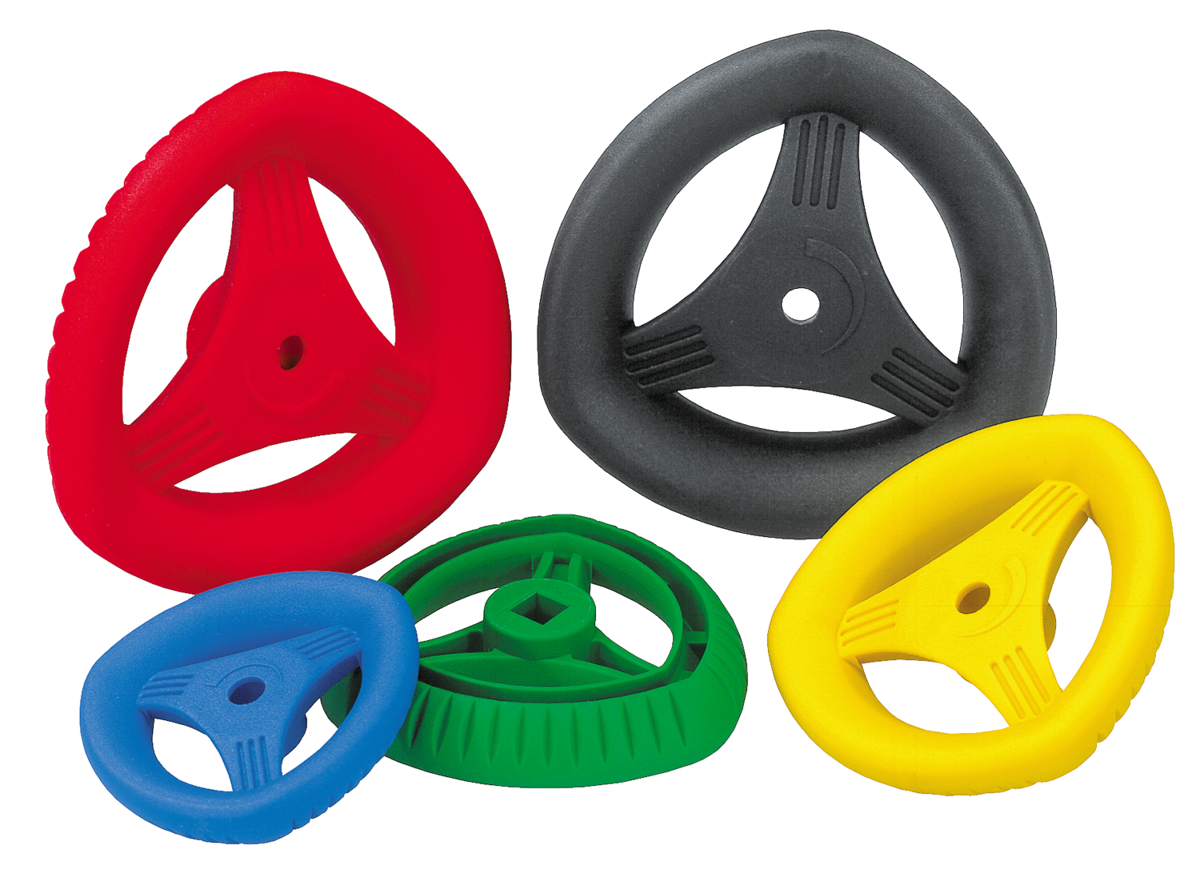

DescriptionProduct description:NOVO grip Deltawheels lend your ideas a concrete style and definite shape. Apart from being attractive, the delta style of these handwheels also offers a really comfortable and secure grip.Material:fiberglass reinforced thermoplastic.Note:Δ Add the desired color here. No color code is required for black gray. DownloadHere is all the information as a PDF datasheet:
|
| Item No. | Main
color | D1 | D2 | D3 | L1 | L3 | Square
socket
SW | CAD | Acc. | Price | Order |
|---|
| K0275.05005 | black gray RAL 7021 | 50 | 5 | 12,5 | 7,3 | 10 | 5 | | | on request | | | K0275.050051 | green RAL 6032 | 50 | 5 | 12,5 | 7,3 | 10 | 5 | | | on request | | | K0275.050052 | red RAL 3020 | 50 | 5 | 12,5 | 7,3 | 10 | 5 | | | on request | | | K0275.050053 | rapeseed yellow RAL 1021 | 50 | 5 | 12,5 | 7,3 | 10 | 5 | | | on request | | | K0275.050054 | traffic blue RAL 5017 | 50 | 5 | 12,5 | 7,3 | 10 | 5 | | | on request | | | K0275.05006 | black gray RAL 7021 | 50 | 5 | 12,5 | 7,3 | 10 | 6 | | | on request | | | K0275.050061 | green RAL 6032 | 50 | 5 | 12,5 | 7,3 | 10 | 6 | | | on request | | | K0275.050062 | red RAL 3020 | 50 | 5 | 12,5 | 7,3 | 10 | 6 | | | on request | | | K0275.050063 | rapeseed yellow RAL 1021 | 50 | 5 | 12,5 | 7,3 | 10 | 6 | | | on request | | | K0275.050064 | traffic blue RAL 5017 | 50 | 5 | 12,5 | 7,3 | 10 | 6 | | | on request | | | K0275.06306 | black gray RAL 7021 | 63 | 5 | 15,8 | 9 | 12,6 | 6 | | | on request | | | K0275.063061 | green RAL 6032 | 63 | 5 | 15,8 | 9 | 12,6 | 6 | | | on request | | | K0275.063062 | red RAL 3020 | 63 | 5 | 15,8 | 9 | 12,6 | 6 | | | on request | | | K0275.063063 | rapeseed yellow RAL 1021 | 63 | 5 | 15,8 | 9 | 12,6 | 6 | | | on request | | | K0275.063064 | traffic blue RAL 5017 | 63 | 5 | 15,8 | 9 | 12,6 | 6 | | | on request | | | K0275.06307 | black gray RAL 7021 | 63 | 5 | 15,8 | 9 | 12,6 | 7 | | | on request | | | K0275.063071 | green RAL 6032 | 63 | 5 | 15,8 | 9 | 12,6 | 7 | | | on request | | | K0275.063072 | red RAL 3020 | 63 | 5 | 15,8 | 9 | 12,6 | 7 | | | on request | | | K0275.063073 | rapeseed yellow RAL 1021 | 63 | 5 | 15,8 | 9 | 12,6 | 7 | | | on request | | | K0275.063074 | traffic blue RAL 5017 | 63 | 5 | 15,8 | 9 | 12,6 | 7 | | | on request | | | K0275.08008 | black gray RAL 7021 | 80 | 5 | 20 | 12 | 16 | 8 | | | on request | | | K0275.080081 | green RAL 6032 | 80 | 5 | 20 | 12 | 16 | 8 | | | on request | | | K0275.080082 | red RAL 3020 | 80 | 5 | 20 | 12 | 16 | 8 | | | on request | | | K0275.080083 | rapeseed yellow RAL 1021 | 80 | 5 | 20 | 12 | 16 | 8 | | | on request | | | K0275.080084 | traffic blue RAL 5017 | 80 | 5 | 20 | 12 | 16 | 8 | | | on request | | | K0275.08009 | black gray RAL 7021 | 80 | 5 | 20 | 12 | 16 | 9 | | | on request | | | K0275.080091 | green RAL 6032 | 80 | 5 | 20 | 12 | 16 | 9 | | | on request | | | K0275.080092 | red RAL 3020 | 80 | 5 | 20 | 12 | 16 | 9 | | | on request | | | K0275.080093 | rapeseed yellow RAL 1021 | 80 | 5 | 20 | 12 | 16 | 9 | | | on request | | | K0275.080094 | traffic blue RAL 5017 | 80 | 5 | 20 | 12 | 16 | 9 | | | on request | |
