Product groups
Reducing bushings
K0412

Reducing bushings

go back

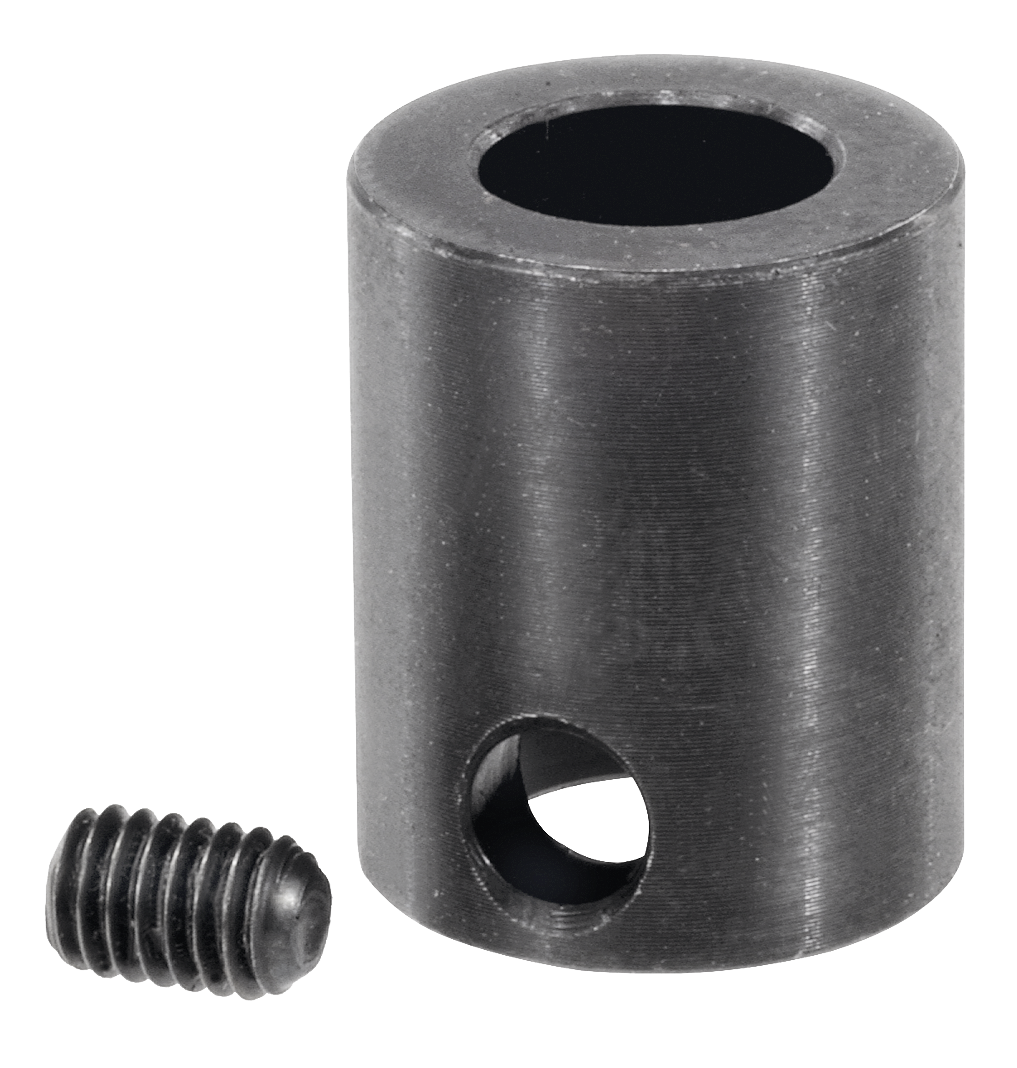

Item description/product images

DescriptionMaterial:Steel.Version:Black oxide finish.Note:Reducing bushinges are used for adapting the diameter between position indicator and positioning spindle.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0412 Reducing bushings 233 kB

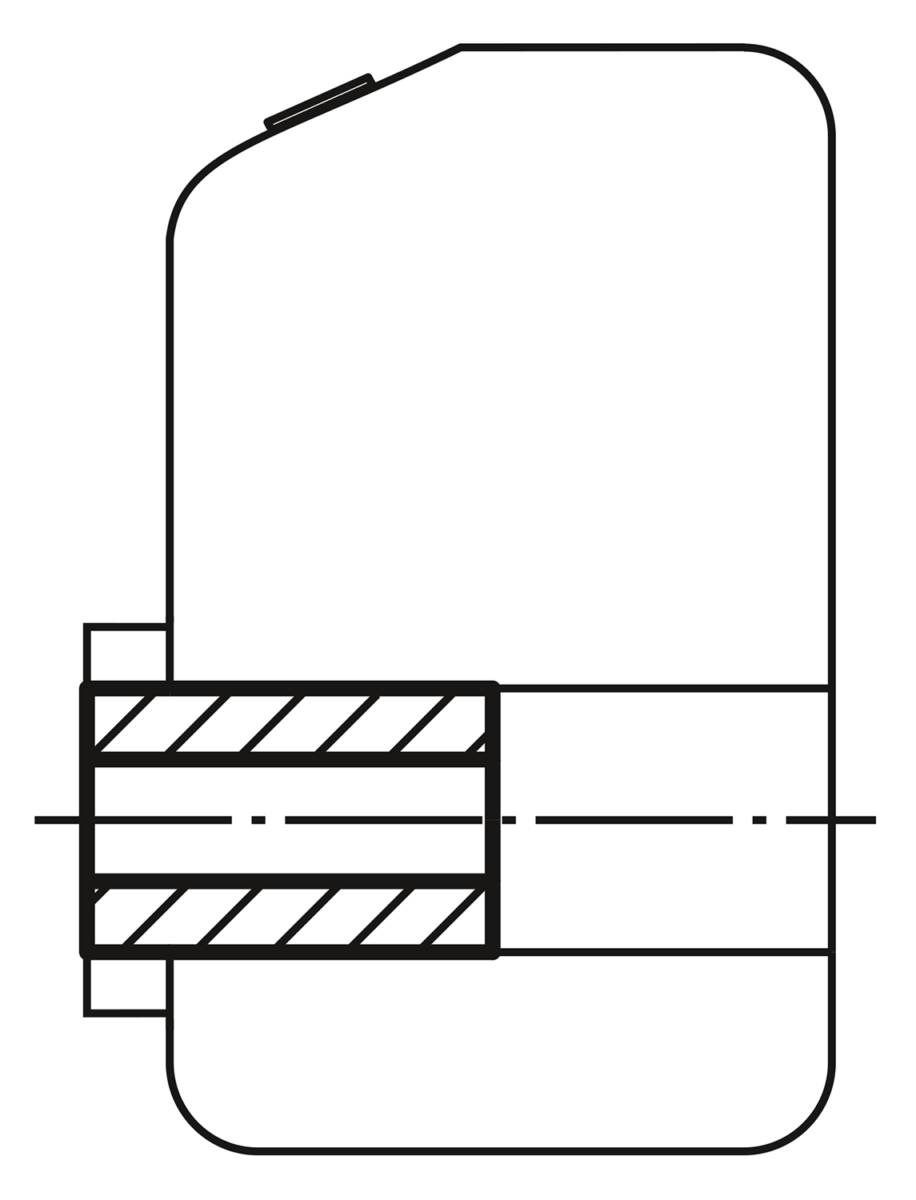

Drawings

Reducing bushings

Item selection/filter

Item No.

ADD1D2LSuitable
for Position
Indicator
CADAcc.PriceOrder
K0412.10062,51063,214-on request
K0412.10082,51083,214-on request
K0412.14063,51464,217-on request
K0412.14083,51484,217-on request
K0412.14103,514104,217-on request
K0412.14123,514124,217-on request
K0412.20124,520125,520-on request
K0412.20144,520145,520-on request
K0412.20164,520165,520-on request
K0412.20184,520185,520-on request
K0412.3012430125,530-on request
K0412.3014430145,530-on request
K0412.3016430165,530-on request
K0412.3018430185,530-on request
K0412.3020430205,530-on request
K0412.3025430255,530-on request
