Crank handles aluminium with safety grip and reamed hole

go back

Products
- Handwheels
  - Handwheels and Crank Handles
    - Crank handles aluminium with safety grip
      - Crank handles aluminium with safety grip and reamed hole

Item description/product images

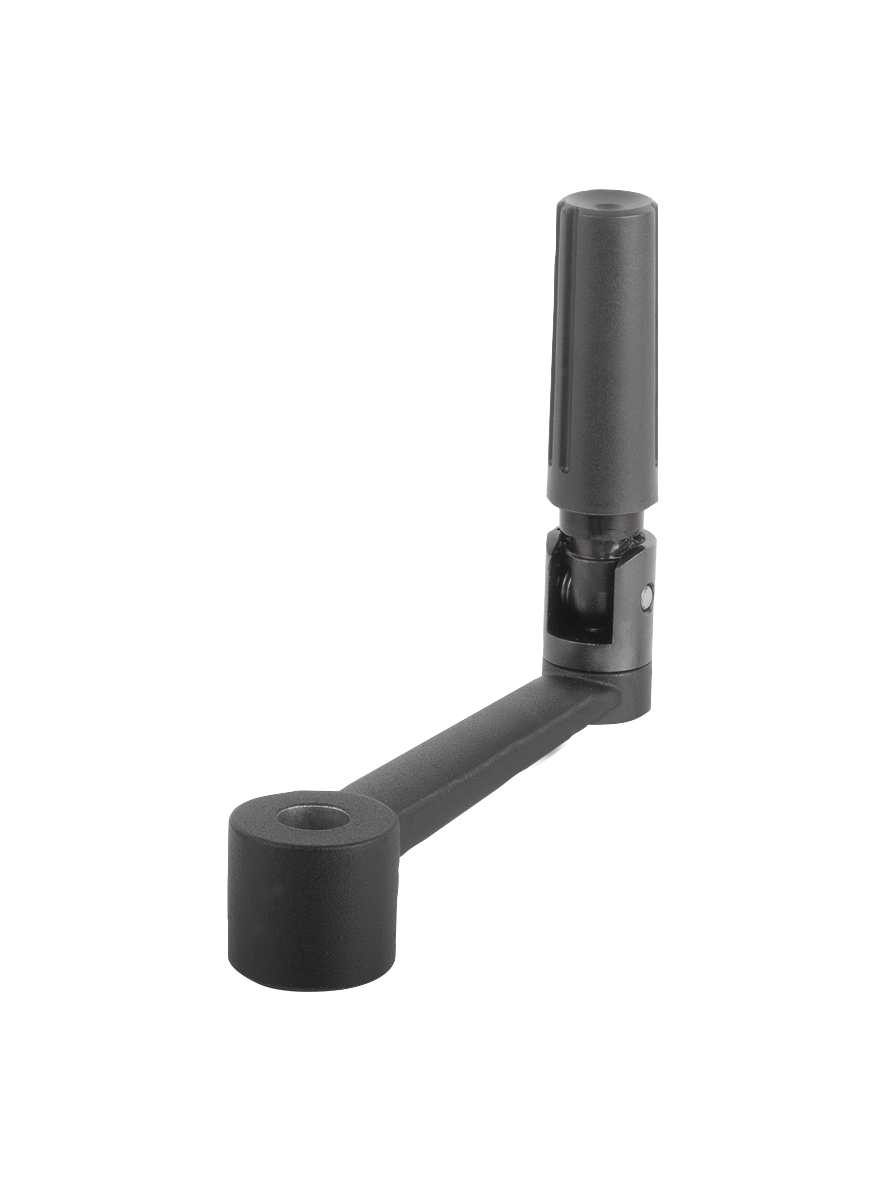

DescriptionMaterial:Crank AlSi9Cu3 3.2163.
Safety cylinder grip thermoplastic PA6 and steel.Version:Crank black powder coated.
Thermoplastic black.
Steel parts black oxide finish.Note:Similar to DIN 469.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0998_PB Crank handles aluminium with safety grip and reamed hole

126 kB

Drawings

Item selection/filter

Item No.	Style 1	D	D2	H	H1	H2	H3	A	L	Price
K0998.1110	reamed hole	24	10	87,5	47,5	22	13,4	80	100	71.26 $ (USD)
K0998.1212	reamed hole	28	12	106,9	58,4	26	16	100	124	83.18 $ (USD)
K0998.1314	reamed hole	30	14	139,1	82,1	28	15,8	125	153	110.39 $ (USD)
K0998.1417	reamed hole	34	17	143,1	82,1	32	19,6	160	190	114.86 $ (USD)
