Product groups
Handwheels disc stainless steel with revolving grip
K1307

Handwheels disc stainless steel with revolving grip

go back

Item description/product images

DescriptionMaterial:Stainless steel 1.4301 (AISI 304 equivalent).Version:Turned, bright.
Hub is center bored.
On request:Stainless steel 1.4401 (AISI 316 equivalent).
Stainless steel 1.4404 (AISI 316L equivalent).
Stainless steel 1.4571 (AISI 316 Ti equivalent).
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1307 Handwheels disc stainless steel with revolving grip 155 kB

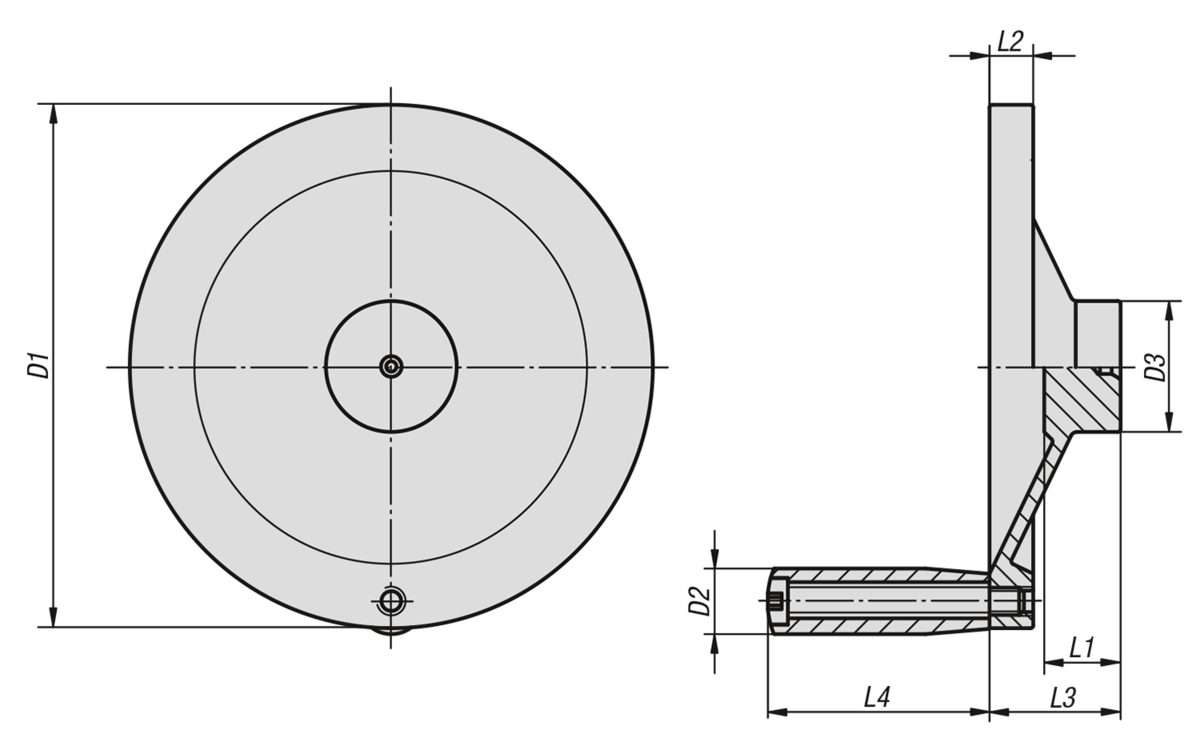

Drawings

Handwheels disc stainless steel with revolving grip

Item selection/filter

Order No.D1D2

D3L1L2L3L4CADAcc.PriceOrder
K1307.4203X00203,222,145,724,1314,2245,776,2 247.70 $ (USD)
K1307.4152X00152,419,0538,122,112,738,163,5 192.28 $ (USD)
K1307.4254X0025422,150,826,6715,7550,876,2 387.02 $ (USD)
K1307.4101X00101,611,9425,918,037,8731,739,88 96.62 $ (USD)
K1307.4076X0076,29,9122,117,026,127,937,9 86.05 $ (USD)
