Product groups
Hingesplastic, lift-off, left
K0434

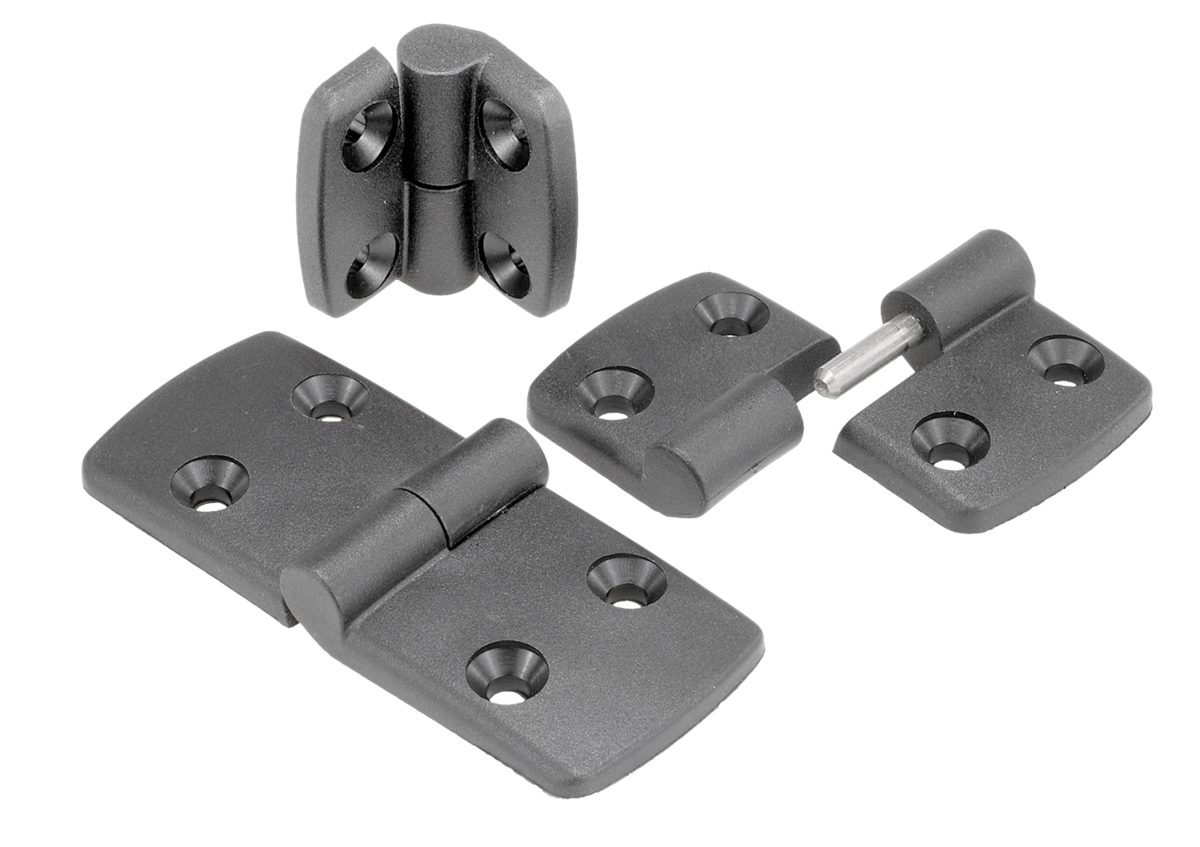

Hinges plastic, lift-off, left

go back

Item description/product images

DescriptionMaterial:fiberglass reinforced thermoplastic.
Hinge pin stainless steel.
Version:Hinge black. Pin bright.Note:All hinges can be supplied on request with guide tabs for the slots of aluminum profiles (slots 6, 8 and 10). They facilitate assembly, secure the hinge against rotation and make it harder wearing.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0434 Hingesplastic, lift-off, left 210 kB

Drawings

Hingesplastic, lift-off, left

Overview of items (compressed)

Item selection/filter
Item No.

AA1A2A3A4BB2D1D2D3HF1
max.
kN
F2
max.
kN
CADAcc.PriceOrder
K0434.140231564,522,51538,52648286,661490,650,425 6.48 $ (USD)
K0434.14023186822,517,538,529,548286,661490,750,5 6.48 $ (USD)
K0434.14023207422,52038,535,548286,661490,750,4 6.65 $ (USD)
K0434.14023237722,522,538,538,548286,661490,80,4 6.65 $ (USD)
K0434.14023288722,527,538,548,548286,661490,80,35 6.88 $ (USD)
K0434.14023339622,532,538,557,548286,661490,80,24 7.02 $ (USD)
K0434.145251569,5251543,52648286,661490,650,425 6.65 $ (USD)
K0434.1452518732517,543,529,548286,661490,750,5 6.48 $ (USD)
K0434.145252079252043,535,548286,661490,70,4 6.77 $ (USD)
K0434.1452523822522,543,538,548286,661490,80,35 6.82 $ (USD)
K0434.145252587252543,543,548286,661490,80,325 6.77 $ (USD)
K0434.1452528922527,543,548,548286,661490,80,32 6.88 $ (USD)
K0434.14525331012532,543,557,548286,661490,80,24 6.88 $ (USD)
K0434.150281574,527,51548,52648286,661490,650,425 6.77 $ (USD)
K0434.15028187827,517,548,529,548286,661490,750,5 6.48 $ (USD)
K0434.15028208427,52048,535,548286,661490,70,4 6.77 $ (USD)
K0434.15028238727,522,548,538,548286,661490,80,35 6.88 $ (USD)
K0434.15028259227,52548,543,548286,661490,80,325 6.88 $ (USD)
K0434.15028289727,527,548,548,548286,661490,80,32 6.88 $ (USD)
K0434.150283310627,532,548,557,548286,661490,80,24 6.88 $ (USD)
K0434.160331583,532,51557,52648286,661490,650,425 6.88 $ (USD)
K0434.16033188732,517,557,529,548286,661490,750,5 6.65 $ (USD)
K0434.16033209332,52057,535,548286,661490,70,4 6.88 $ (USD)
K0434.16033239632,522,557,538,548286,661490,80,35 7.02 $ (USD)
K0434.160332510132,52557,543,548286,661490,80,325 6.88 $ (USD)
K0434.160332810632,527,557,548,548286,661490,90,32 6.88 $ (USD)
K0434.160333311532,532,557,557,548286,661490,90,24 6.88 $ (USD)
