K0434Hinges plastic, lift-off, right |
go back |
|

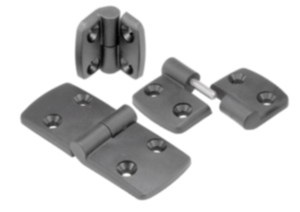

Item description/product images |
|
|
DescriptionMaterial:Fiberglass reinforced thermoplastic.
Hinge pin stainless steel.Version:Hinge black.
Pin bright.Note:All hinges can be supplied on request with guide tabs for the slots of aluminium profiles (slots 6, 8 and 10). They facilitate mounting, secure the hinge against twisting and make it stronger.Special features: DownloadHere is all the information as a PDF datasheet:

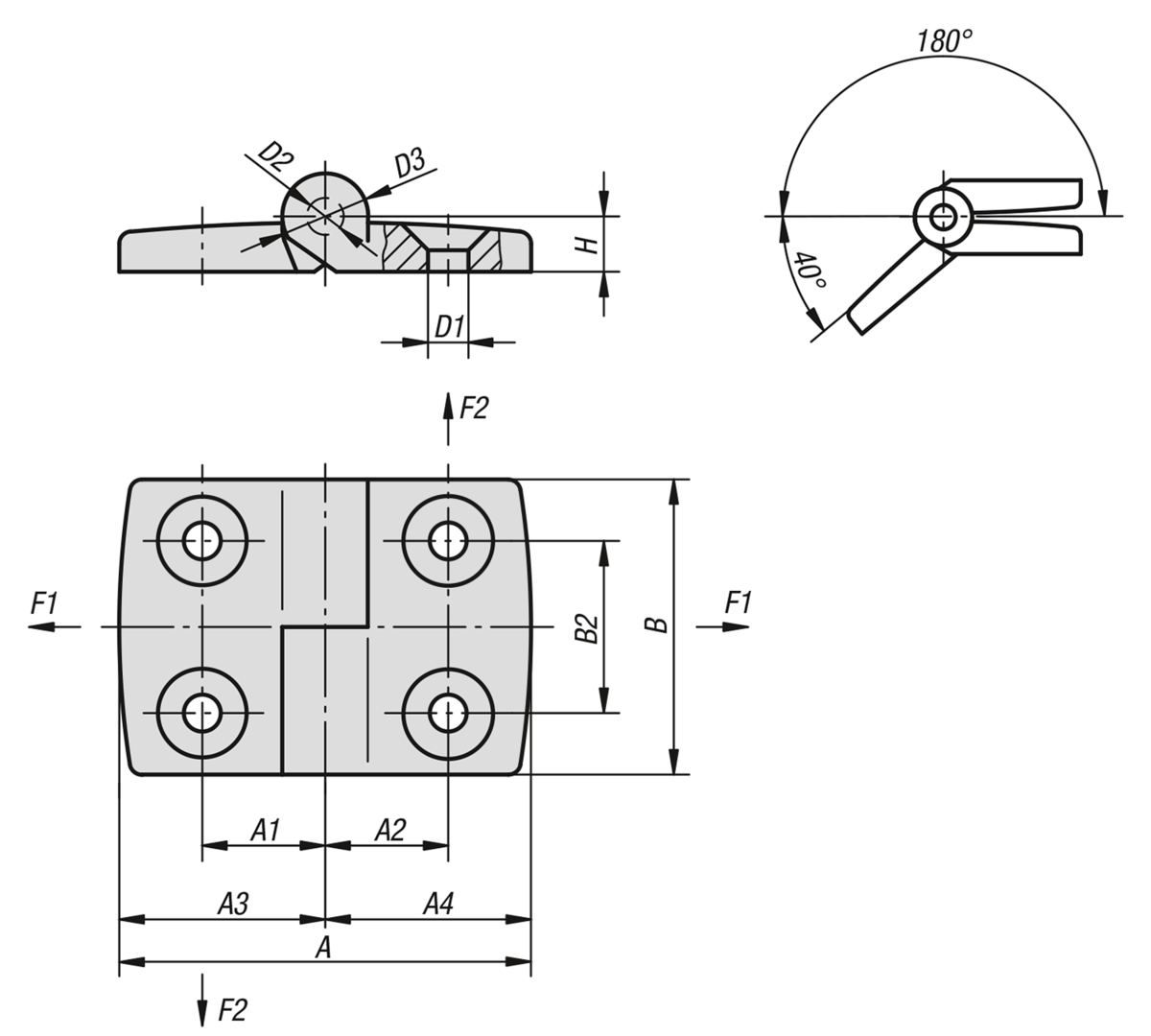

Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| A | A1 | A2 | A3 | A4 | B | B2 | D1 | D2 | D3 | H | F1
max.
kN | F2
max.
kN | CAD | Acc. | Price | Order |
|---|
| K0434.2251515 | 52 | 15 | 15 | 26 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,625 | 0,425 |  | | 6.00 $ (USD) | | | K0434.2251518 | 55,5 | 15 | 17,5 | 26 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,5 | | | 6.12 $ (USD) | | | K0434.2251520 | 61,5 | 15 | 20 | 26 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.12 $ (USD) | | | K0434.2251523 | 64,5 | 15 | 22,5 | 26 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.29 $ (USD) | | | K0434.2251525 | 69,5 | 15 | 25 | 26 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,325 | | | 6.46 $ (USD) | | | K0434.2251528 | 74,5 | 15 | 27,5 | 26 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,32 | | | 6.59 $ (USD) | | | K0434.2251533 | 83,5 | 15 | 32,5 | 26 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.70 $ (USD) | | | K0434.2301815 | 55,5 | 17,5 | 15 | 29,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,45 | | | 6.12 $ (USD) | | | K0434.2301818 | 59 | 17,5 | 17,5 | 29,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.12 $ (USD) | | | K0434.2301820 | 65 | 17,5 | 20 | 29,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.29 $ (USD) | | | K0434.2301823 | 68 | 17,5 | 22,5 | 29,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.29 $ (USD) | | | K0434.2301825 | 73 | 17,5 | 25 | 29,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.29 $ (USD) | | | K0434.2301828 | 78 | 17,5 | 27,5 | 29,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.29 $ (USD) | | | K0434.2301833 | 87 | 17,5 | 32,5 | 29,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.46 $ (USD) | | | K0434.2352015 | 61,5 | 20 | 15 | 35,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.12 $ (USD) | | | K0434.2352018 | 65 | 20 | 17,5 | 35,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.29 $ (USD) | | | K0434.2352020 | 71 | 20 | 20 | 35,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,4 | | | 6.46 $ (USD) | | | K0434.2352023 | 74 | 20 | 22,5 | 35,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.46 $ (USD) | | | K0434.2352025 | 79 | 20 | 25 | 35,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.59 $ (USD) | | | K0434.2352028 | 84 | 20 | 27,5 | 35,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.59 $ (USD) | | | K0434.2352033 | 93 | 20 | 32,5 | 35,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.70 $ (USD) | | | K0434.2402315 | 64,5 | 22,5 | 15 | 38,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,65 | 0,425 | | | 6.29 $ (USD) | | | K0434.2402318 | 68 | 22,5 | 17,5 | 38,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.29 $ (USD) | | | K0434.2402320 | 74 | 22,5 | 20 | 38,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,4 | | | 6.46 $ (USD) | | | K0434.2402323 | 77 | 22,5 | 22,5 | 38,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.46 $ (USD) | | | K0434.2402325 | 82 | 22,5 | 25 | 38,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.63 $ (USD) | | | K0434.2402328 | 87 | 22,5 | 27,5 | 38,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.70 $ (USD) | | | K0434.2402333 | 96 | 22,5 | 32,5 | 38,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.82 $ (USD) | | | K0434.2452515 | 69,5 | 25 | 15 | 43,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,65 | 0,425 | | | 6.46 $ (USD) | | | K0434.2452518 | 73 | 25 | 17,5 | 43,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.29 $ (USD) | | | K0434.2452520 | 79 | 25 | 20 | 43,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.59 $ (USD) | | | K0434.2452523 | 82 | 25 | 22,5 | 43,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.63 $ (USD) | | | K0434.2452525 | 87 | 25 | 25 | 43,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,325 | | | 6.59 $ (USD) | | | K0434.2452528 | 92 | 25 | 27,5 | 43,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,32 | | | 6.70 $ (USD) | | | K0434.2452533 | 101 | 25 | 32,5 | 43,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.70 $ (USD) | | | K0434.2502815 | 74,5 | 27,5 | 15 | 48,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,65 | 0,425 | | | 6.59 $ (USD) | | | K0434.2502818 | 78 | 27,5 | 17,5 | 48,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.29 $ (USD) | | | K0434.2502820 | 84 | 27,5 | 20 | 48,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.59 $ (USD) | | | K0434.2502823 | 87 | 27,5 | 22,5 | 48,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.70 $ (USD) | | | K0434.2502825 | 92 | 27,5 | 25 | 48,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,325 | | | 6.70 $ (USD) | | | K0434.2502828 | 97 | 27,5 | 27,5 | 48,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,32 | | | 6.70 $ (USD) | | | K0434.2502833 | 106 | 27,5 | 32,5 | 48,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,24 | | | 6.70 $ (USD) | | | K0434.2603315 | 83,5 | 32,5 | 15 | 57,5 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,65 | 0,425 | | | 6.70 $ (USD) | | | K0434.2603318 | 87 | 32,5 | 17,5 | 57,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,75 | 0,5 | | | 6.46 $ (USD) | | | K0434.2603320 | 93 | 32,5 | 20 | 57,5 | 35,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,7 | 0,4 | | | 6.70 $ (USD) | | | K0434.2603323 | 96 | 32,5 | 22,5 | 57,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,35 | | | 6.82 $ (USD) | | | K0434.2603325 | 101 | 32,5 | 25 | 57,5 | 43,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,8 | 0,325 | | | 6.70 $ (USD) | | | K0434.2603328 | 106 | 32,5 | 27,5 | 57,5 | 48,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,9 | 0,32 | | | 6.70 $ (USD) | | | K0434.2603333 | 115 | 32,5 | 32,5 | 57,5 | 57,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 0,9 | 0,24 | | | 6.70 $ (USD) | |
