Product groups
Hingesaluminium, lift-off, right
K0579

Hinges aluminium, lift-off, right

go back

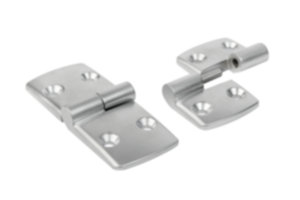

Item description/product images

DescriptionMaterial:Die-cast aluminum.
Hinge pin stainless steel.
Version:Note:Hinges for panel elements and aluminium profiles.
The hinges can be fitted with a plastic spacer ring on the hinge pin.
On request:Hinges with guide tabs for aluminum profiles (slots 5, 6, 8, 10, 12 and 14).
Unequal leaf combinations.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0579 Hingesaluminium, lift-off, right 157 kB

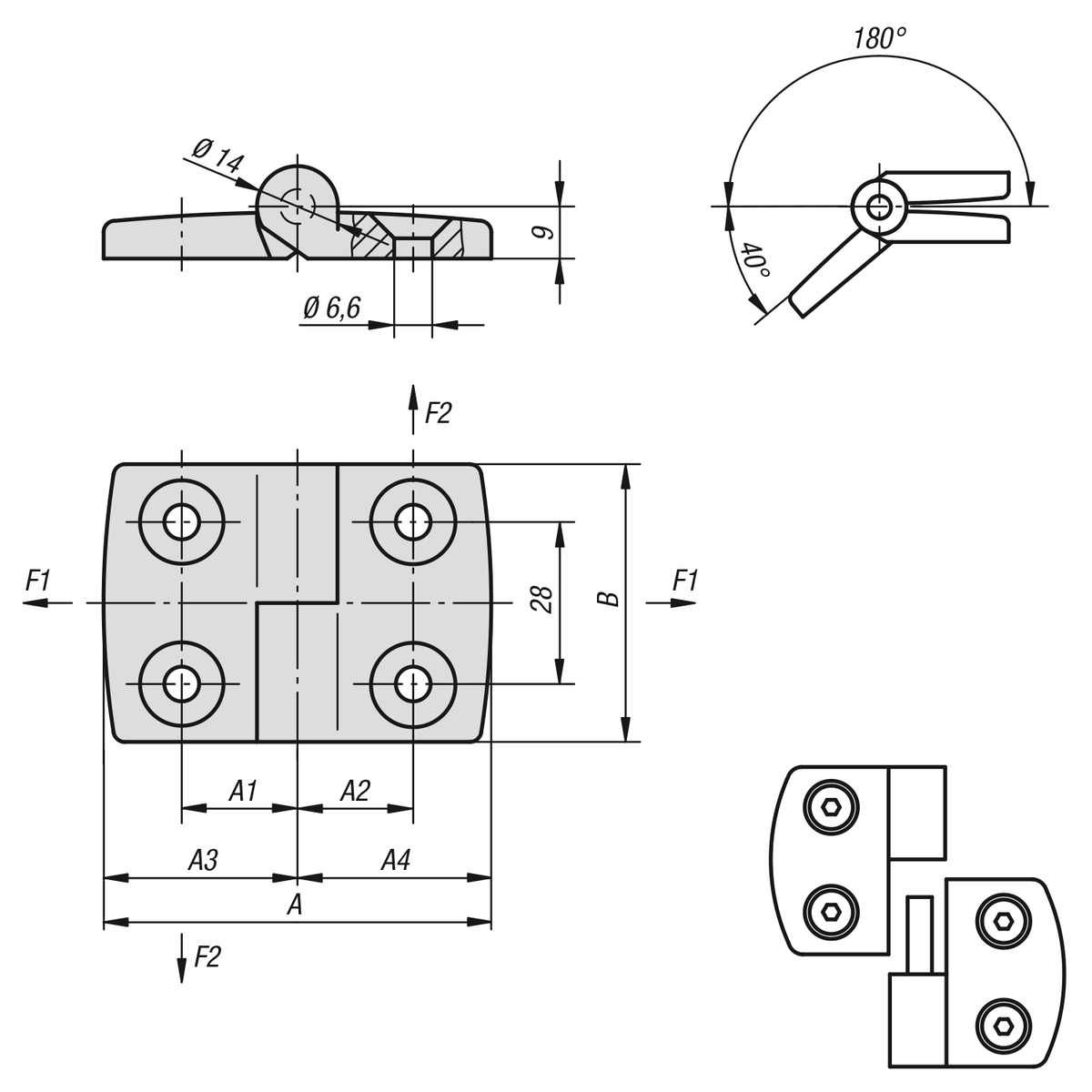

Drawings

Hingesaluminium, lift-off, right

Item selection/filter

Item No.

AA1A2A3A4BF1 max.
kN
F2 max.
kN
CADAcc.PriceOrder
K0579.22515155215152626480,410,25 on request
K0579.23018185917,517,529,529,5480,450,28 on request
K0579.23520207220203636480,50,25 on request
K0579.24023237722,522,538,538,5480,550,2 on request
K0579.245252587252543,543,5480,550,2 on request
K0579.25028289727,527,548,548,5480,550,175 on request
K0579.260333311532,532,557,557,5480,5750,15 on request
