Weldable hinges, style B

go back

Products
- Additional Products
  - Hinges
    - Hinges weldable
      - Weldable hinges, style B

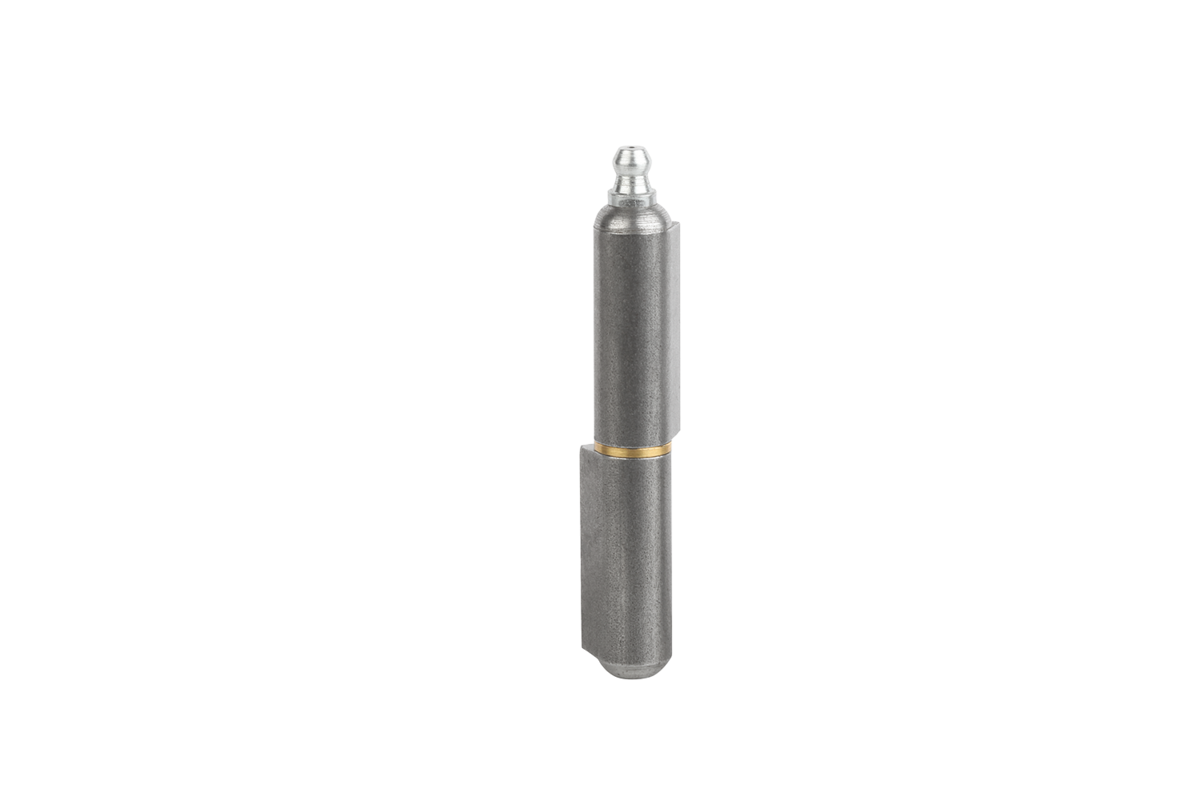

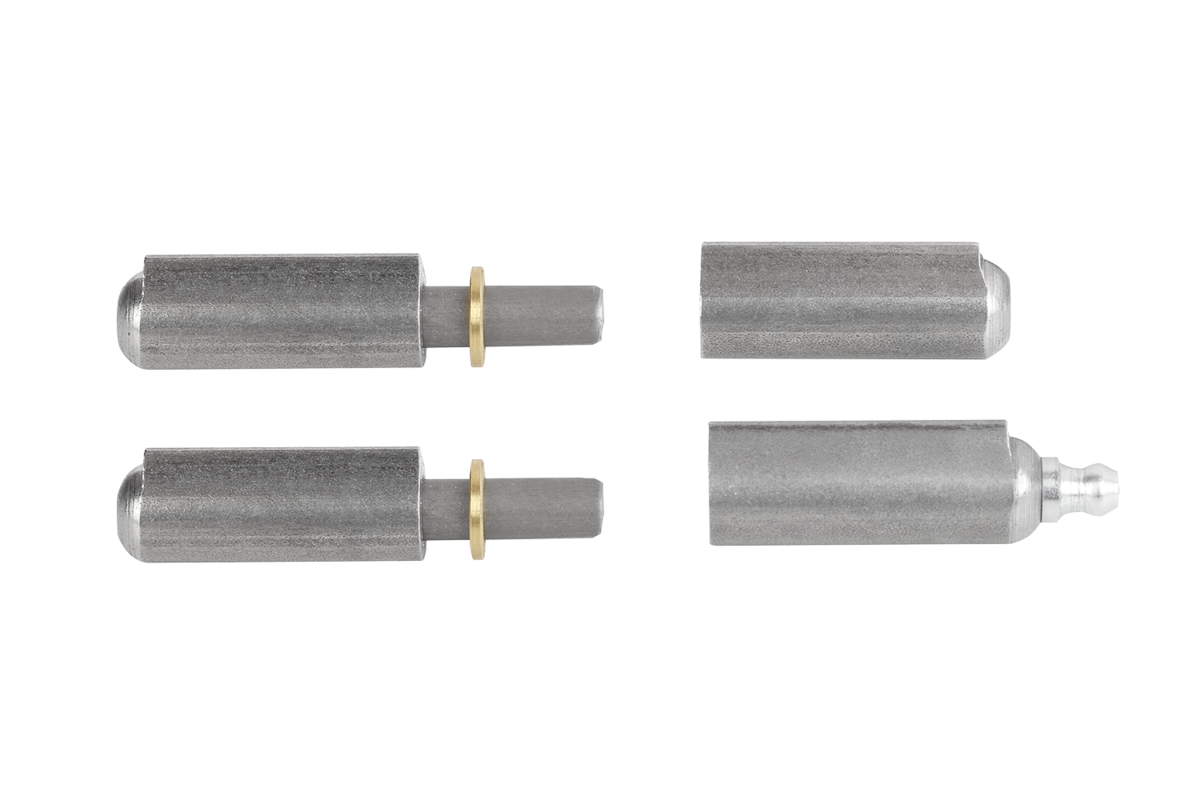

Item description/product images

DescriptionMaterial:Hinge steel.
Spacer washer brass.
Hinge pin steel or brass.Version:Grease nipple DIN 71412-D, electro zinc-plated steel.
Steel parts, bright.Note:The hinges are made of weldable profile steel.
The pin is fixed into the lower part of the hinge.
The differing steel qualities of the weld and the beam onto which the hinge is welded must be at least equal to or better than:
S235 JR+AR acc. to EN 10025-2:2004-10
DIN 8563 part 3 or Fe E 235 acc. to SIA 161

DownloadHere is all the information as a PDF datasheet:

Datasheet K0984_B Weldable hinges, style B

131 kB

Drawings

Item selection/filter

Item No.	Style	Component material	A	B	D	D1	Price
K0984.113080012	B	steel	16	80	13	8	on request
K0984.116100012	B	steel	20	100	16	10	on request
K0984.116120012	B	steel	20	120	16	10	on request
K0984.118135012	B	steel	22,5	135	18	12	on request
K0984.120150012	B	steel	25,5	150	20	13	on request
K0984.120180012	B	steel	25	180	20	14	on request
K0984.123200012	B	steel	29	200	23	16	on request
