Product groups

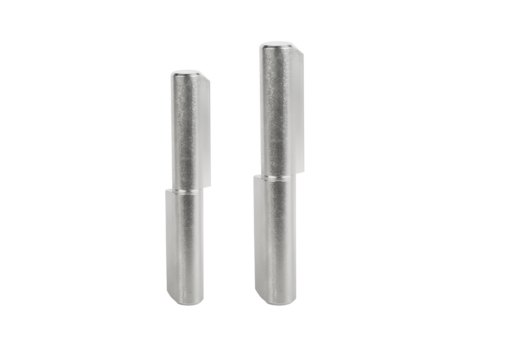

Hinges weldable, stainless steel
K0985

Hinges weldable, stainless steel

go back

Item description/product images

DescriptionMaterial:Stainless steel 1.4301 (AISI 304 equivalent).Version:Bright.Note:The hinges are made of weldable profile steel.
The pin is fixed into the lower part of the hinge.
The differing steel qualities of the weld and the beam onto which the hinge is welded must be at least equal to or better than:
S235 JR+AR acc. to EN 10025-2:2004-10
DIN 8563 part 3 or Fe E 235 acc. to SIA 161
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0985 Hinges weldable, stainless steel 197 kB

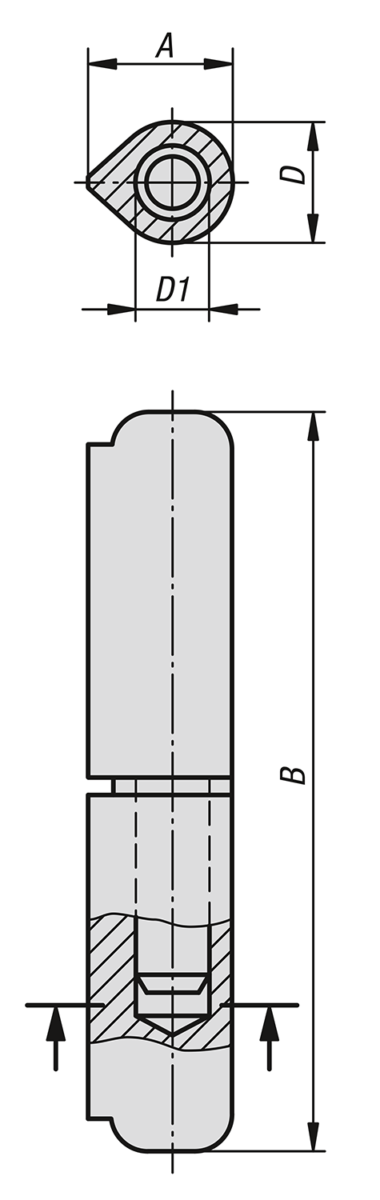

Drawings

Hinges weldable, stainless steel

Item selection/filter

Item No.

ABD

D1CADAcc.PriceOrder
K0985.0100600331260106on request
K0985.01308003315,580138on request
K0985.016100033201001610on request
K0985.016120033201201611on request
K0985.02015003325,51502013on request
K0985.02018003325,51802014on request
