K1005Hinges, plastic, with bushing |
go back |
|

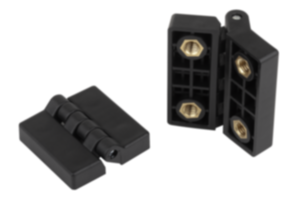

Item description/product images |
|
|
DescriptionMaterial:Fiberglass reinforced thermoplastic.
Hinge pin steel.
Bushing brass.Version:Hinge black.
Hinge pin electro zinc-plated.Note:The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

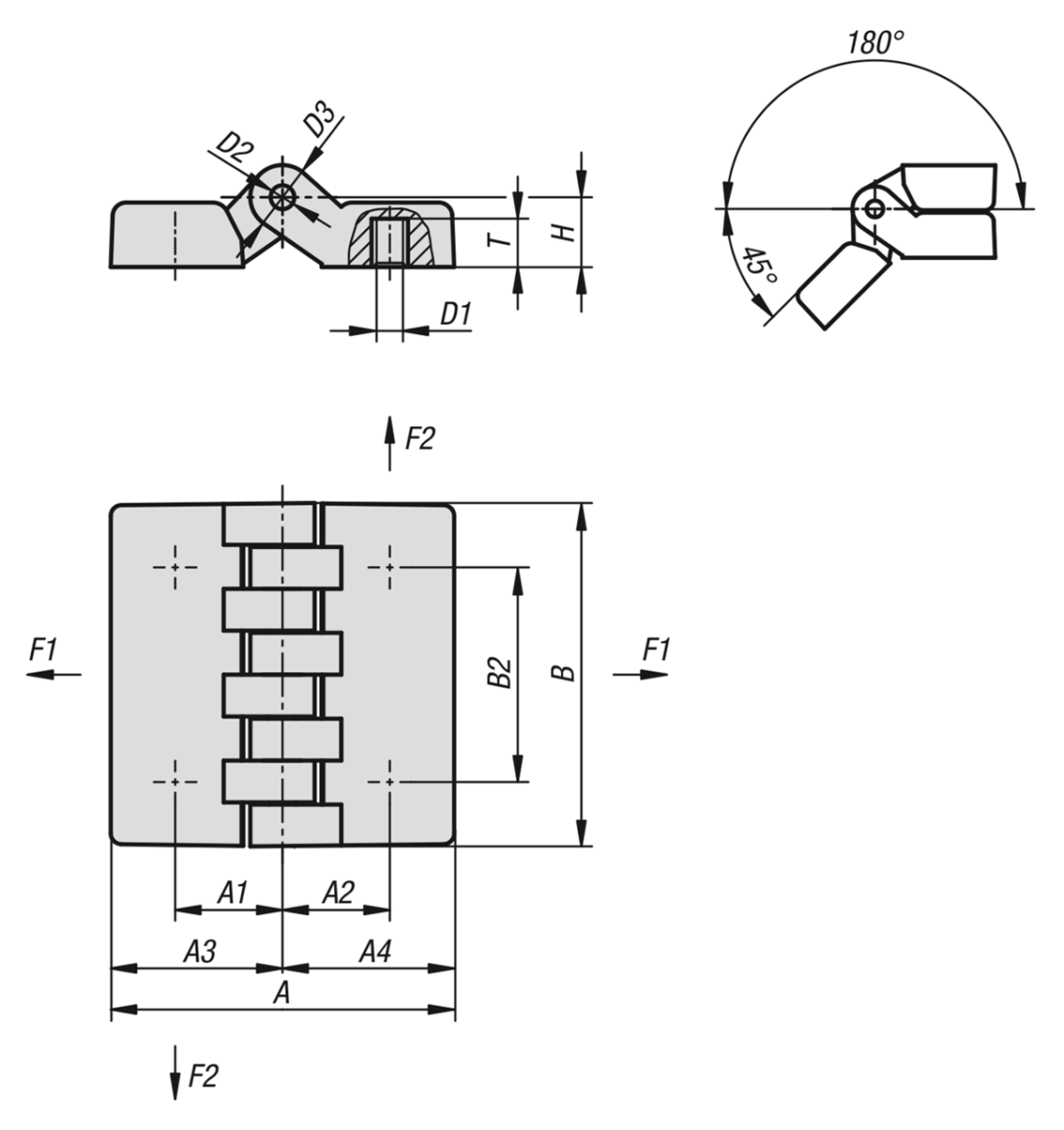

| Order No. | A | A1 | A2 | A3 | A4 | B | B2 | D1
| D2 | D3 | H | T | F1
N | F2
N
| CAD | Acc. | Price | Order |
|---|
| K1005.05241515 | 48 | 15 | 15 | 24 | 24 | 48 | 30 | M5 | 5 | 10 | 10,5 | 7 | 2000 | 1370 |  | | 9.95 $ (USD) | | | K1005.06241515 | 48 | 15 | 15 | 24 | 24 | 48 | 30 | M6 | 5 | 10 | 10,5 | 7 | 2000 | 1370 | | | 12.49 $ (USD) | | | K1005.06322020 | 64 | 20 | 20 | 32 | 32 | 64 | 40 | M6 | 5 | 12 | 13 | 9 | 4100 | 1800 | | | 17.36 $ (USD) | | | K1005.08322020 | 64 | 20 | 20 | 32 | 32 | 64 | 40 | M8 | 5 | 12 | 13 | 9 | 4100 | 1800 | | | 17.36 $ (USD) | | | K1005.08483232 | 95 | 31,5 | 31,5 | 47,5 | 47,5 | 95 | 60 | M8 | 8 | 18 | 19 | 13 | 2450 | 2650 | | | 31.03 $ (USD) | | | K1005.10483232 | 95 | 31,5 | 31,5 | 47,5 | 47,5 | 95 | 60 | M10 | 8 | 18 | 19 | 13 | 2450 | 2650 | | | 31.03 $ (USD) | |
