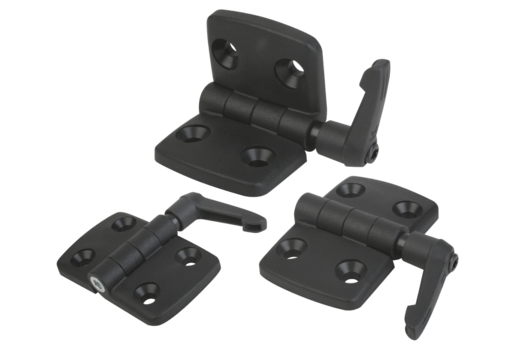

- K0436
Hinges plastic, with locking lever
- K0442
Hinges die-cast zinc, with locking lever

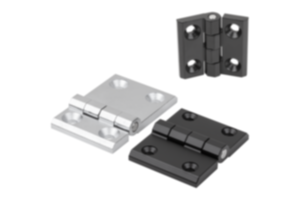

- K1897
Hinges die-cast zinc

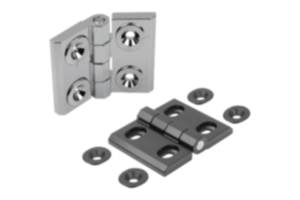

- K1898
Hinges die-cast zinc
adjustable
- K1899
Hinges die-cast zinc
with fastening screws

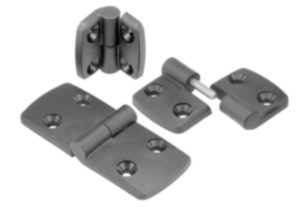

- K0434
Hinges plastic, lift-off, left

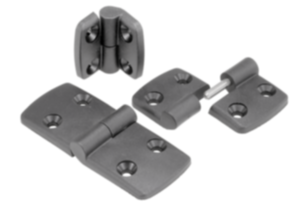

- K0434
Hinges plastic, lift-off, right
- K0437
Hinge plastic, with elongated holes
- K0438
Hinges, plastic, lift-off, with guide tabs
- K0440
Hinges plastic, with adjustable friction
- K1195
Hinge aluminum, with adjustable friction
- K1196
Hinges aluminum, with adjustable friction
- K1197
Hinge aluminum, with detent
- K1198
Hinges aluminum, with detent
- K1004
Plastic hinges with fastening holes
- K1005
Hinges, plastic, with bushing
- K1006
Hinges, plastic, with fastening screws
- K1007
Hinges plastic with bushing and fastening screws
- K0579
Hinges aluminum, lift-off, left
- K0579
Hinges aluminum, lift-off, right
- K1084
Hinges, stainless steel
- K1343
Hinge stainless steel
- K1852
Hinges, stainless steel
- K1853
Hinges, stainless steel
with fastening screws
- K1085
Hinges, stainless steel
- K1900
Hinges stainless steel
adjustable
- K1964
Hinges stainless steel, separable,
dismountable
- K1341
Hinges stainless steel
- K1346
Single leaf hinges adjustable, stainless steel
- K1348
Hinge stainless steel
- K1345
Hinges, stainless steel lift-off, left
- K1345
Hinges, stainless steel lift-off, right
- K1342
Hinges lift-off stainless steel
- K1347
Strap hinges stainless steel with grease nipple
- K1347
Strap hinges,
steel or stainless steel
- K1082
Hinges sheet steel or sheet stainless steel
- K1349
Butt hinges stainless steel
- K1447
Hinges steel or stainless steel internal, opening angle 90°
- K1448
Hinges steel or stainless steel internal, opening angle 125°
- K0435
Hinges plastic
- K1963
Hinges plastic, separable,
dismountable
- K1449
Hinges steel in-frame, opening angle 110°
- K1810
Stainless steel hinges with fastening screws
- K1173
Spring hinges, steel, stainless steel or aluminum 50 mm
- K1338
Block hinges with fastening nuts
- K1174
Spring hinges steel or stainless steel, 75 mm
- K1175
Spring hinges, steel, stainless steel or aluminum 120 mm
- K1176
Spring hinges steel or stainless steel, 180 mm
- K1177
Spring hinges steel or stainless steel, 240 mm
- K1178
Spring hinges
aluminum profile, 0.2 Nm
- K1179
Spring hinges
aluminum profile, 0.35 Nm
- K1180
Spring hinges aluminum profile, 0.7 Nm
- K1181
Spring hinges aluminum profile, 1.3 Nm
- K1182
Spring hinges
aluminum profile, 3.8 Nm
- K1304
In-line hinge stainless steel lift-off, screw-on
- K1809
Hinges, stainless steel
- K1667
Spring hinges
aluminum profile, 0.9 Nm, long version
- K1518
Hinges, stainless steel
with preset friction
- K1517
Hinges, stainless steel
- K1519
Hinges steel in-frame, opening angle 110°
- K1142
Block hinges with fastening nuts
- K1143
Block hinges with fastening nuts, long version
- K1144
Block hinges with counterbore, long version
- K1666
Spring hinges
aluminum profile, 0.7 Nm, long version
- K1665
Spring hinges
aluminum profile, 0.50 Nm
- K1140 Metric
Hinges weldable
- K1141 Metric
Hinges steel maintenance-free
- K1805
Hinges, steel or stainless steel, weldable
- K0985
Hinges weldable, stainless steel
- K1337
Hinges weldable, stainless steel
- K0984
Hinges weldable
- K1499
Security hinge switches
- K1501
Security hinge switches long version
- K1874
Connectors M8x1
bushing with screw lock, unshielded
- K1498
Connectors bushing M12x1
with screw lock
- Rubber Buffers
- Latches, snap locks, slam latches
- Swivel feet, levelling feet
- Locating Components
- Leveling Elements
- Machine & Fixture Components
- Joints
- Magnets
- Level indicators, screw plugs
- Material handling
- Tools
- Product lines KIPP Inc.
|
|
|

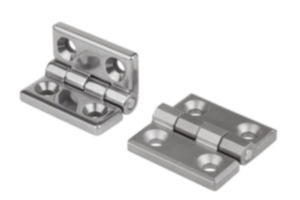

K1085Hinges, stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4401 (AISI 316 equivalent).Version:Polished or blasted.Note:Hinges with fixed pin and countersunk holes.
The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

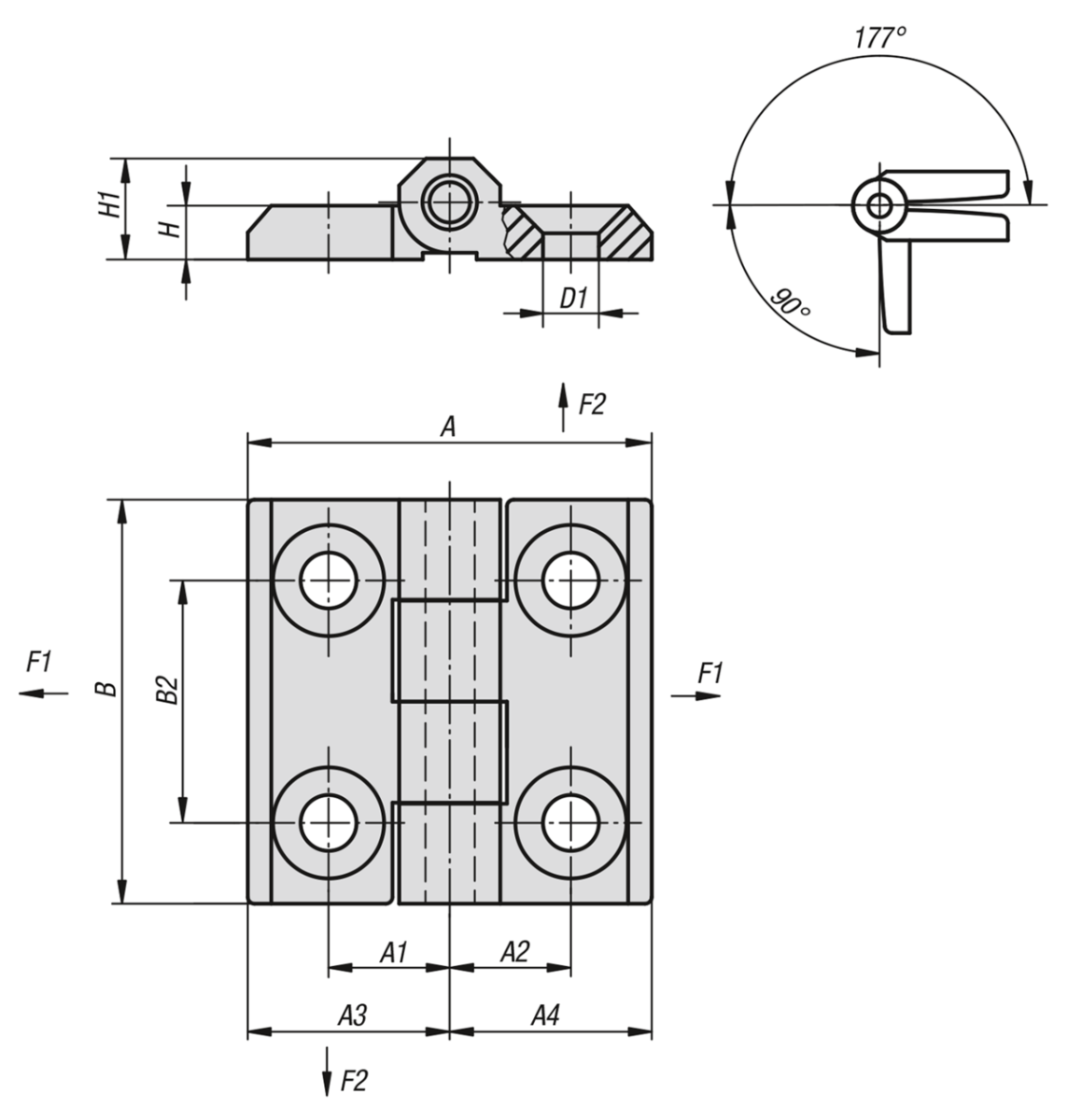

| Order No. | Main
material | Surface finish
body | A
| A1 | A2 | A3 | A4 | B | B2 | D1 | H | H1 | F1
N | F2
N
| CAD | Acc. | Price | Order |
|---|
| K1085.052013130 | stainless steel A2 | polished | 39 | 12,5 | 12,5 | 19,5 | 19,5 | 39 | 25 | 5,5 | 4 | 9 | 800 | 600 |  | | 31.02 $ (USD) | | | K1085.052013131 | stainless steel A2 | blasted | 39 | 12,5 | 12,5 | 19,5 | 19,5 | 39 | 25 | 5,5 | 4 | 9 | 800 | 600 | | | 23.58 $ (USD) | | | K1085.062515150 | stainless steel A2 | polished | 50 | 15 | 15 | 25 | 25 | 50 | 30 | 6,5 | 6 | 12 | 1100 | 900 | | | 34.30 $ (USD) | | | K1085.062515151 | stainless steel A2 | blasted | 50 | 15 | 15 | 25 | 25 | 50 | 30 | 6,5 | 6 | 12 | 1100 | 900 | | | 27.65 $ (USD) | | | K1085.083018180 | stainless steel A4 | polished | 60 | 18 | 18 | 30 | 30 | 60 | 36 | 8,5 | 8 | 15 | 2000 | 1500 | | | 52.45 $ (USD) | | | K1085.083018181 | stainless steel A4 | brushed | 60 | 18 | 18 | 30 | 30 | 60 | 36 | 8,5 | 8 | 15 | 2000 | 1500 | | | 52.45 $ (USD) | |
