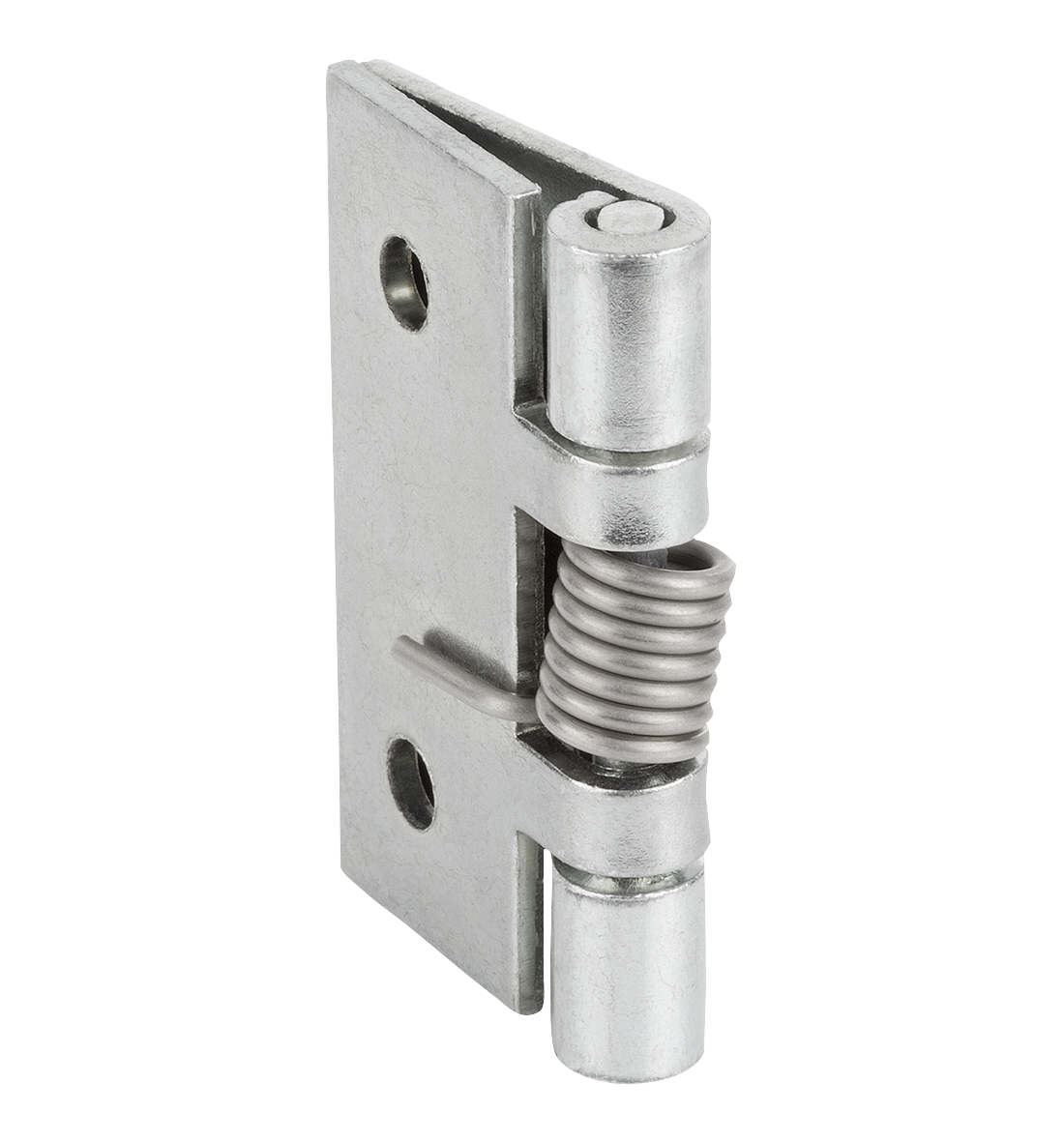

{"product":{"productId":"agid.19952","price":12.05,"name":"Spring hinges, steel, stainless steel or aluminum, 50 mm, spring closed"},"currency":"USD"}
- Connect two fixed components flexibly to each other
- Application sectors: machine construction, furniture construction, doors, hatches, hoods
- Self-closing
- Material: steel or 1.4301 stainless steel
Description
Material
Steel, 1.4301 stainless steel or 5754 aluminum.
Tension spring steel or stainless steel.
Version
Steel electro zinc-plated
Stainless steel and aluminum, bright.
Tension spring Zn/Al alloy.
Stainless steel and aluminum, bright.
Tension spring Zn/Al alloy.
Note
Butt type hinges.
Opening angle 270°.
Spring torque:
M(0°): 0.25 Nm / M(90°): 0.65 Nm / M(180°): 1.1 Nm
By the aluminum hinges, the tension springs are steel alloyed with Zn/Al.
Opening angle 270°.
Spring torque:
M(0°): 0.25 Nm / M(90°): 0.65 Nm / M(180°): 1.1 Nm
By the aluminum hinges, the tension springs are steel alloyed with Zn/Al.
