Product groups
Spring hinges steel, stainless steel or aluminium, 120 mm
K1175

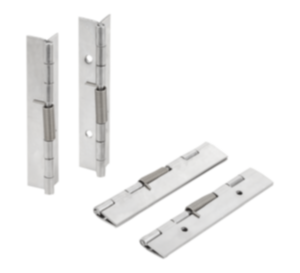

Spring hinges steel, stainless steel or aluminium, 120 mm

go back

Item description/product images

DescriptionMaterial:Steel, stainless steel 1.4301 (AISI 304 equivalent) or aluminium 5754.
Tension spring steel or stainless steel.
Version:Note:Barrel hinges.
Opening angle 270°.

Opening spring torque:
M(0°) : 0.85 Nm / M(90°) : 0.56 Nm / M(180°) : 0.28 Nm
Closing spring torque:
M(0°) : 0.28 Nm / M(90°) : 0.56 Nm / M(180°) : 0.85 Nm

By the aluminum hinges, the tension springs are steel alloyed with Zn/Al.

Form A: without holes
Form B: with holes
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1175 Spring hinges steel, stainless steel or aluminium, 120 mm 170 kB

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring open

More information

Drawings

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring open

Item selection/filter

Item No.StyleStyle 1Main
material
Main
color
AA1BB1DD1SCADAcc.PriceOrder
K1175.4012000Aspring opensteelbright40-120--41,5 on request
K1175.4012001Bspring opensteelgalvanized4022,712060441,5 on request
K1175.14012000Aspring openstainless steelbright40-120--41,5 on request
K1175.14012001Bspring openstainless steelbright4022,712060441,5 on request
K1175.24012000Aspring openaluminumbright40-120--41,5 on request
K1175.24012001Bspring openaluminumbright4022,712060441,5 on request

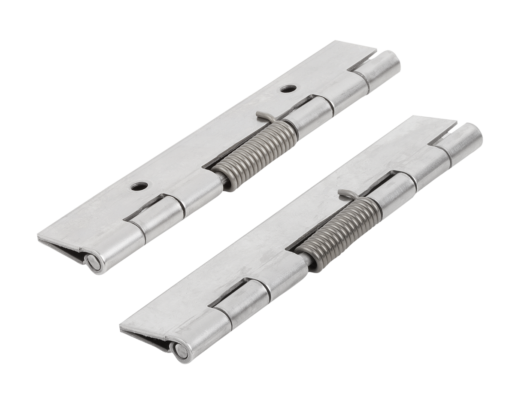

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring closed

More information

Drawings

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring closed

Item selection/filter

Item No.StyleStyle 1Main
material
Main
color
AA1BB1D

D1SCADAcc.PriceOrder
K1175.4012010Aspring closedsteelbright40-120--41,5 on request
K1175.4012011Bspring closedsteelgalvanized4022,712060441,5 on request
K1175.14012010Aspring closedstainless steelbright40-120--41,5 on request
K1175.14012011Bspring closedstainless steelbright4022,712060441,5 on request
K1175.24012010Aspring closedaluminumbright40-120--41,5 on request
K1175.24012011Bspring closedaluminumbright4022,712060441,5 on request
