Hinge aluminum, with adjustable friction
K1195

Hinge aluminum, with adjustable friction

go back

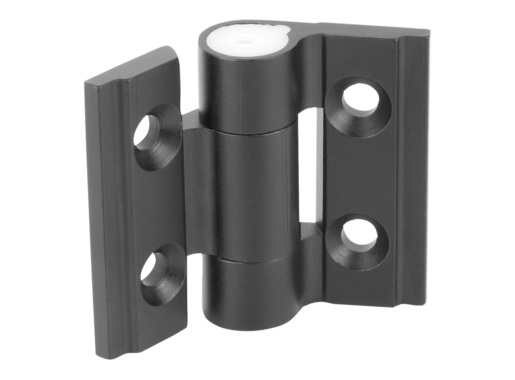

Item description/product images

DescriptionMaterial:aluminum 6060 T5.
End caps PA 6.6.
Washers POM.
Version:Black anodizedNote:These torque hinges enable doors to remain open in any position. A set screw enables the amount of friction to be infinitely adjusted between 0-1 Nm.
Opening angle 270°.

Max. tensile strength: 2240 N
Max. shear strength: 1050 N

Fastened using DIN 7991 countersunk screws.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Temperature range:From -20°C to +80°CSpecial features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1195 Hinge aluminum, with adjustable friction 249 kB

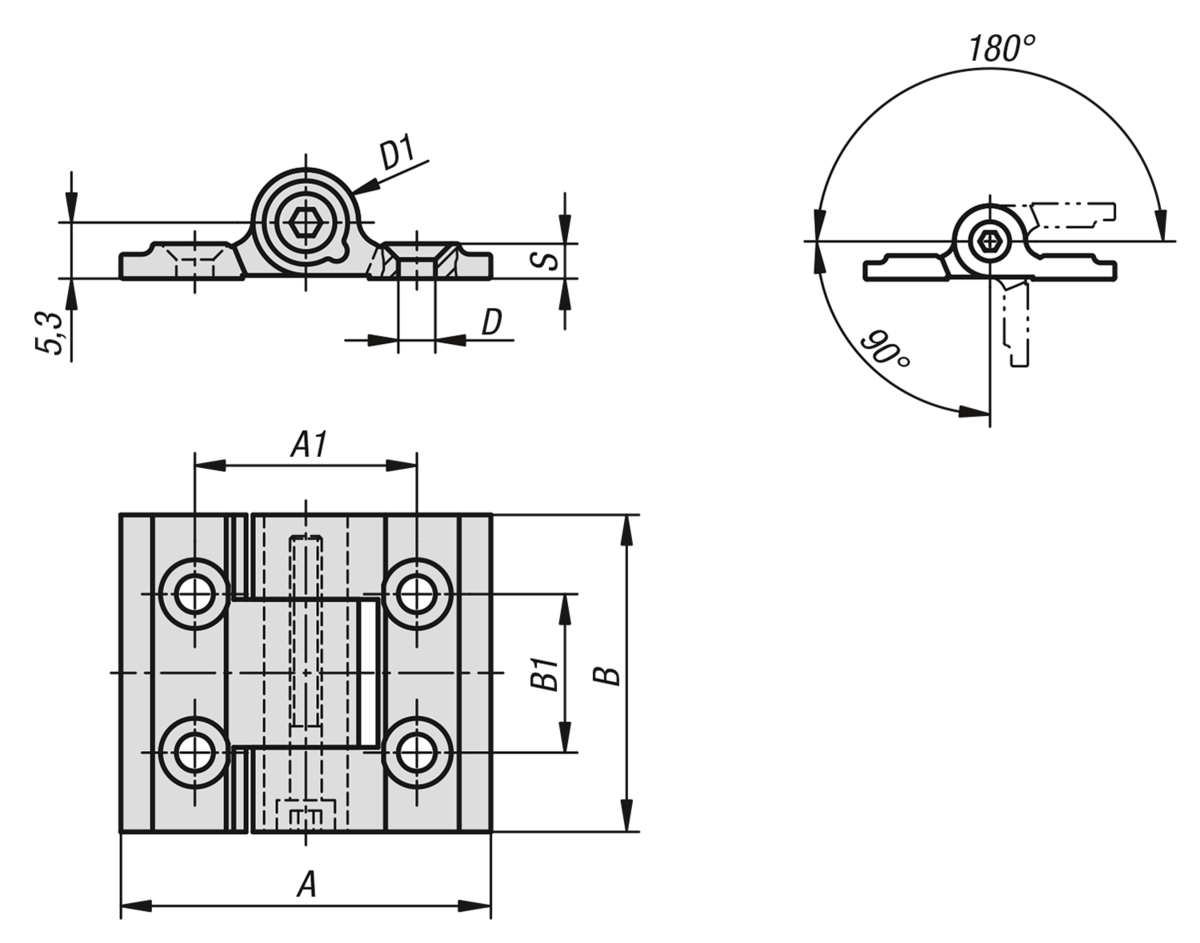

Drawings

Hinge aluminum, with adjustable friction

Item selection/filter

Order No.AA1BB1D

D1SF1
N
F2
N
CADAcc.PriceOrder
K1195.35301352130153,5103,324601480 20.69 $ (USD)
