Block hinges with fastening nuts

K1338

Block hinges with fastening nuts

Products
- Hinges
  - Block hinges with fastening nuts

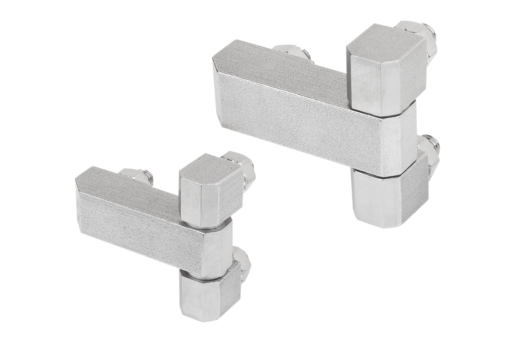

Item description/product images

DescriptionSpecial features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1338 Block hinges with fastening nuts

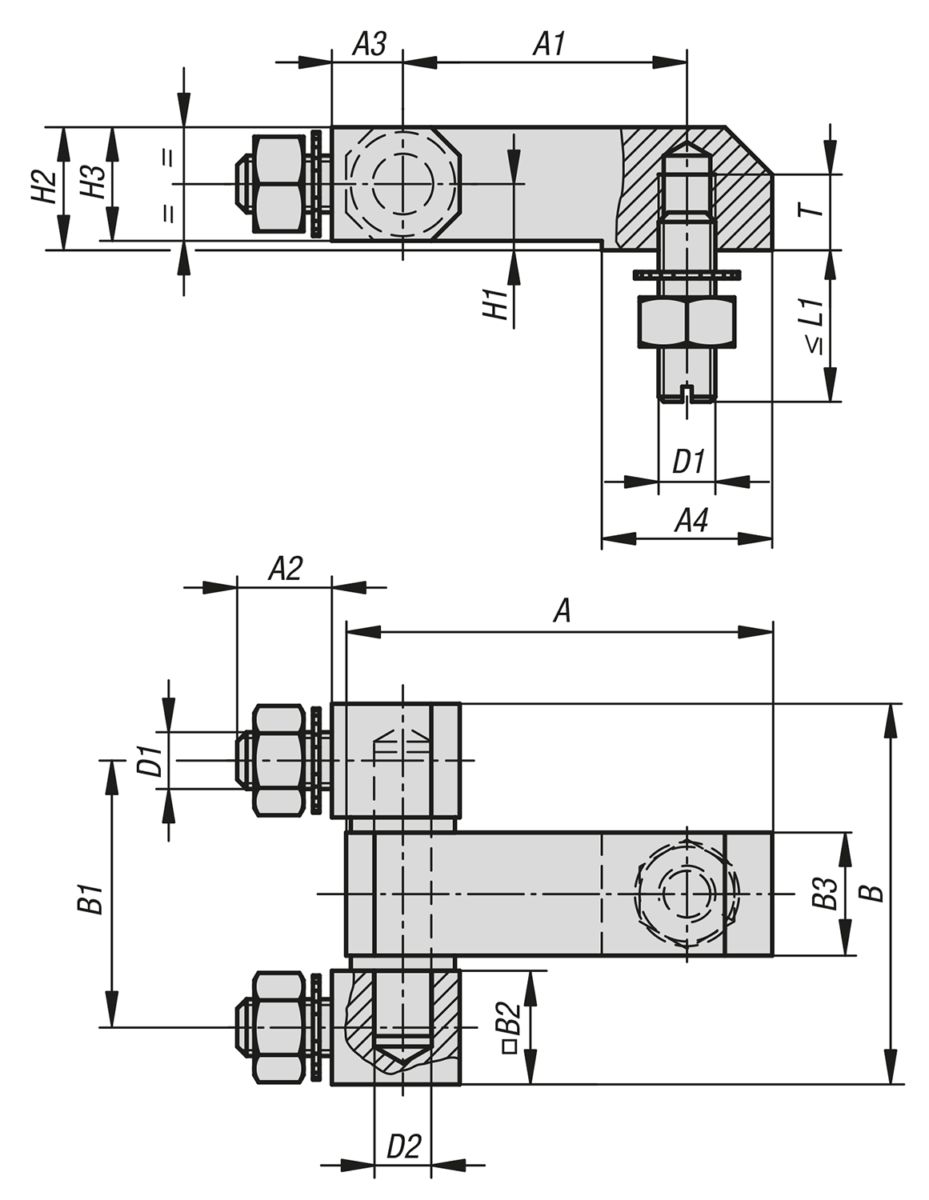

Drawings

Block hinges with fastening nuts

Item selection/filter

Order No.	A	A1	A2	A3	A4	B	B1	B2	B3	D1	D2	H1	H2	H3	L1	T	Load capacity N	CAD	Acc.	Price	Order
K1338.10630028	45	30	10	7,5	18	40,2	28,2	12	13	M6	6	7	13	12	16	8	2600			33.88 $ (USD)
K1338.10840035	61	40	14	10	26	51	35	16	18	M8	8	10	18	16	20	10	4800			61.97 $ (USD)
