Item description/product images

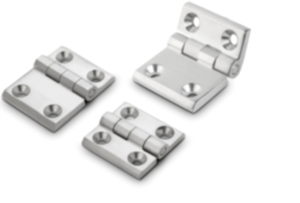

DescriptionMaterial:Stainless steel 1.4401 (AISI 316 equivalent).Version:Satin finished.Note:Hinge for extreme loads.
For right or left use.

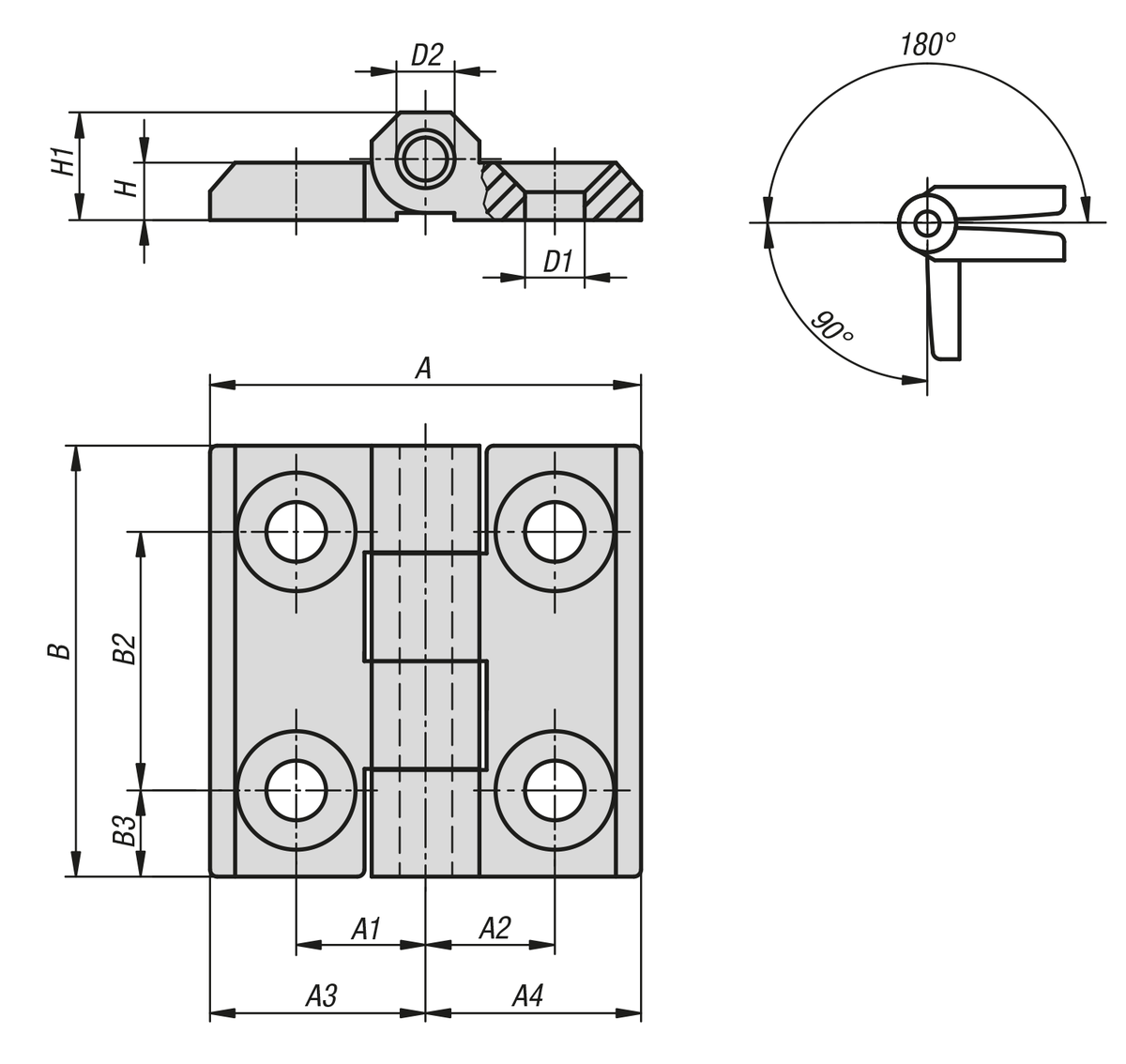

Opening angle 270°.
Fastening with countersunk screws i.e. per DIN 7991.

The loading values given for the hinges are non-binding reference values, which do not consider safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Wide differences in the materials on which the hinges are installed, the type of mounting, weather conditions and wear, can influence the determined values.
Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1341 Hinges stainless steel 187 kB


Hinges stainless steel

Item selection/filter

Order No.A

K1341.0625151550151525255030106,26611,55000 32.16 $ (USD)
K1341.0638152863281538255030106,56611,55000 35.14 $ (USD)
K1341.052013134012,512,5202040257,55,24592500 29.06 $ (USD)
K1341.0638282876282838385030106,56611,55000 35.85 $ (USD)
K1341.0830181860181830306036128,388158000 34.47 $ (USD)
