Product groups
Hinges stainless steel

Hinges stainless steel

go back

Item description/product images

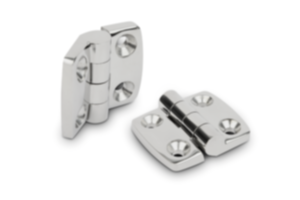

DescriptionMaterial:Hinge stainless steel 1.4401 (AISI 316 equivalent).
Pin stainless steel 1.4104 (AISI 430F equivalent).
Version:High-gloss polished.Note:Hinge for panel elements and aluminum profiles, non lift-off. Pin end closed. Screws countersunk, thus minimum dirt accumulation.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1343 Hinges stainless steel 166 kB


Hinges stainless steel

Item selection/filter

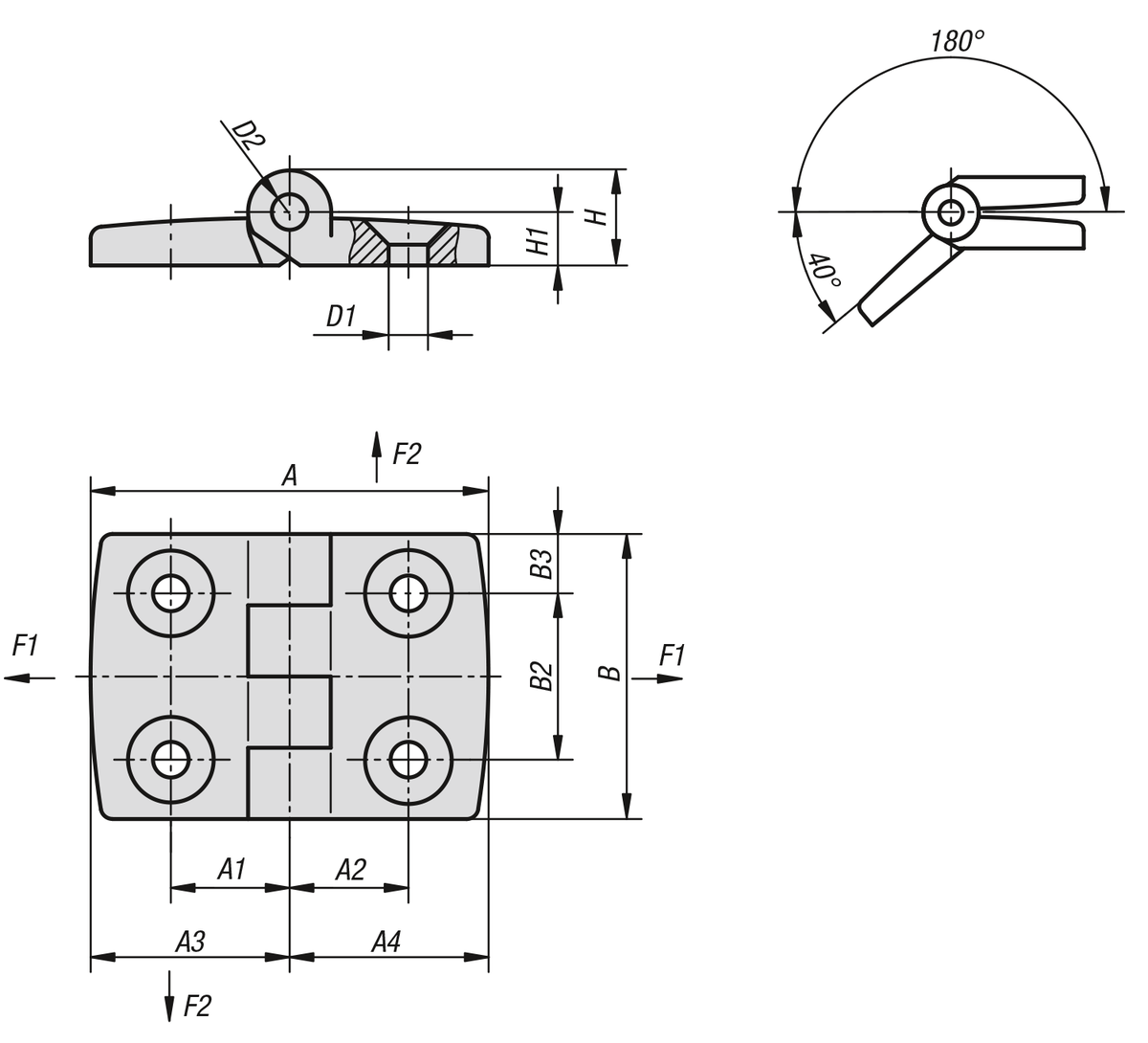

Order No.A

A1A2A3A4BB2B3D1D2HH1F1 max.
F2 max.
K1343.041912123811,511,51919301484,539,55,50,70,45 22.88 $ (USD)
