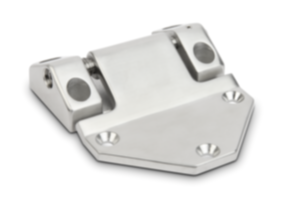

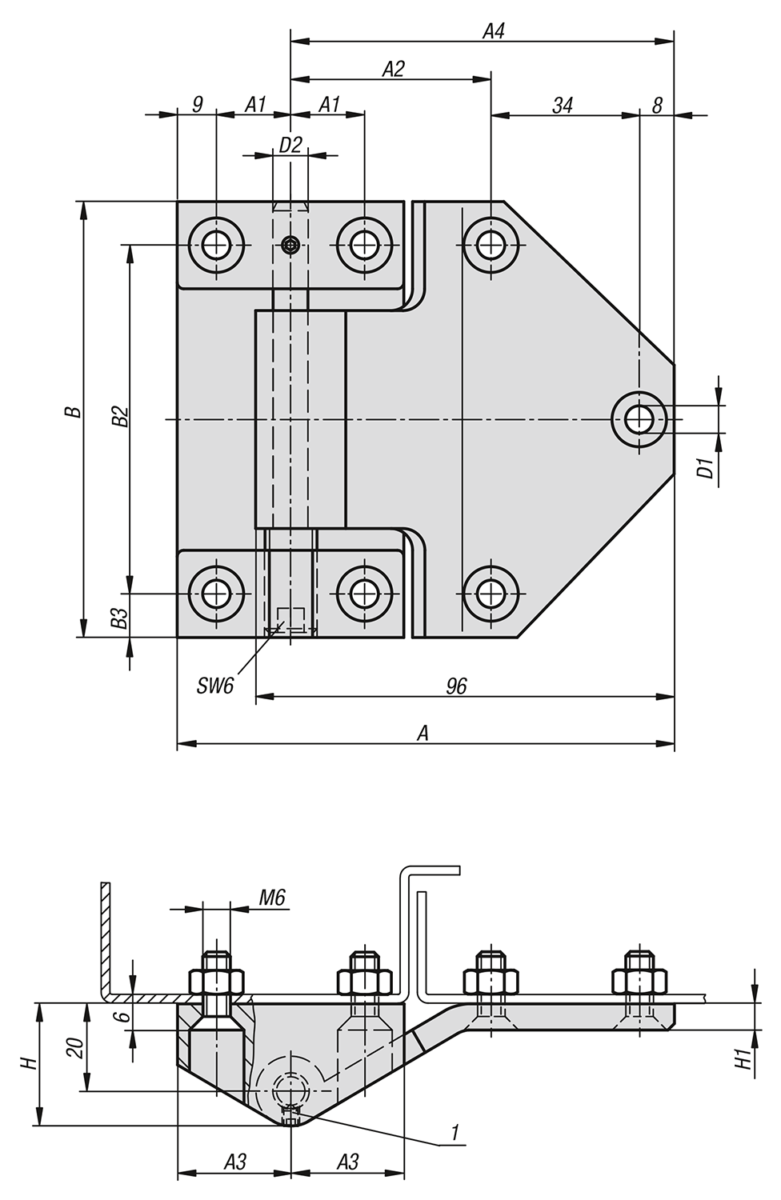

DescriptionMaterial:Stainless steel 1.4571 (AISI 316 Ti equivalent).Version:Satin finished.Note:Single leaf hinge for inwards opening doors, screws on from outside. A screw on the hinge pin allows height adjustment of ±4 mm. The addition of titanium in stainless steel 1.4571 increases the corrosion resistance. The opening angle is max. 180°.Drawing reference:
1) grub screw M4, DIN 916
Special features:
