Hinge stainless steel

K1348

Hinge stainless steel

Products
- Hinges
  - Hinge stainless steel

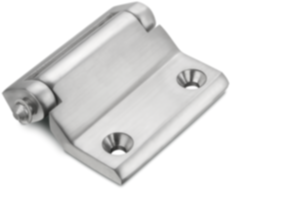

Item description/product images

DescriptionMaterial:Hinge body stainless steel 1.4401 (AISI 316 equivalent).
Pin and retaining rings stainless steel 1.4305 (AISI 303 equivalent).Version:Satin finished.Note:Hinge for flush constructions.
Right or left mounting.
Ideal for mounting on narrow frames.
The opening angle is max. 220°.Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1348 Hinge stainless steel

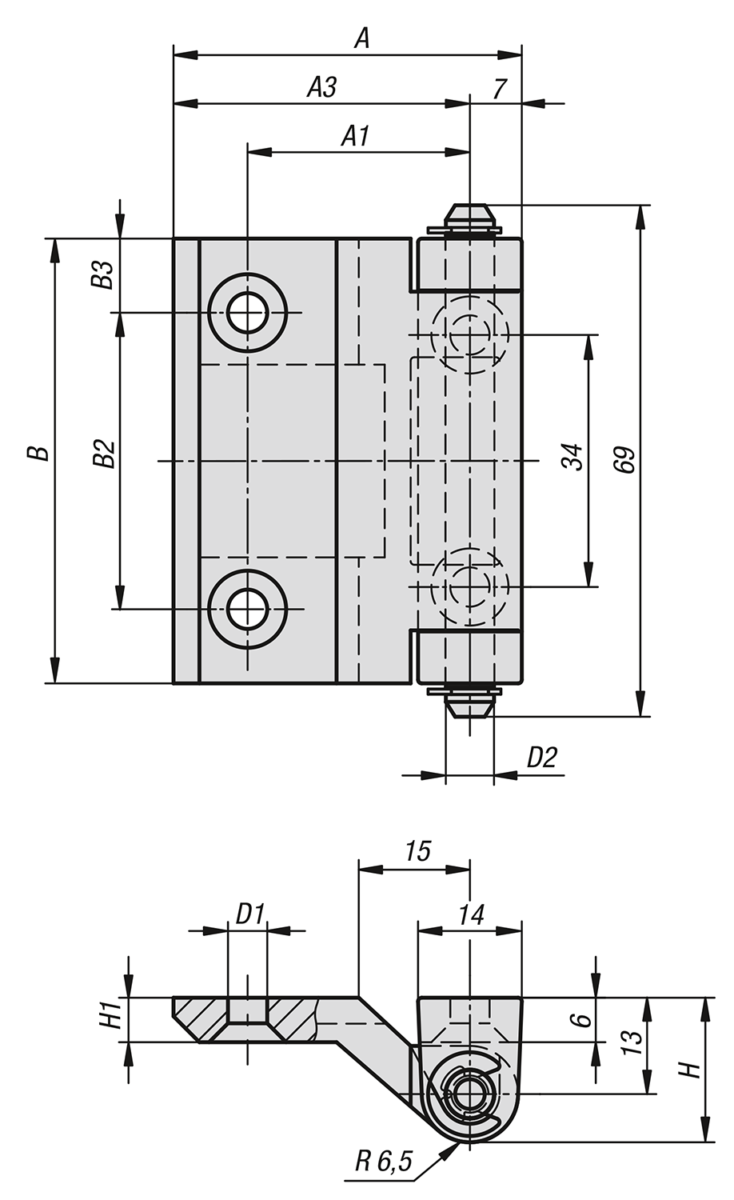

Drawings

Hinge stainless steel

Item selection/filter

Order No.	A	A1	A3	B	B2	B3	D1	D2	H	H1	CAD	Acc.	Price	Order
K1348.0540073000	47	30	40	60	40	10	5,3	6,5	19,5	6			38.70 $ (USD)
