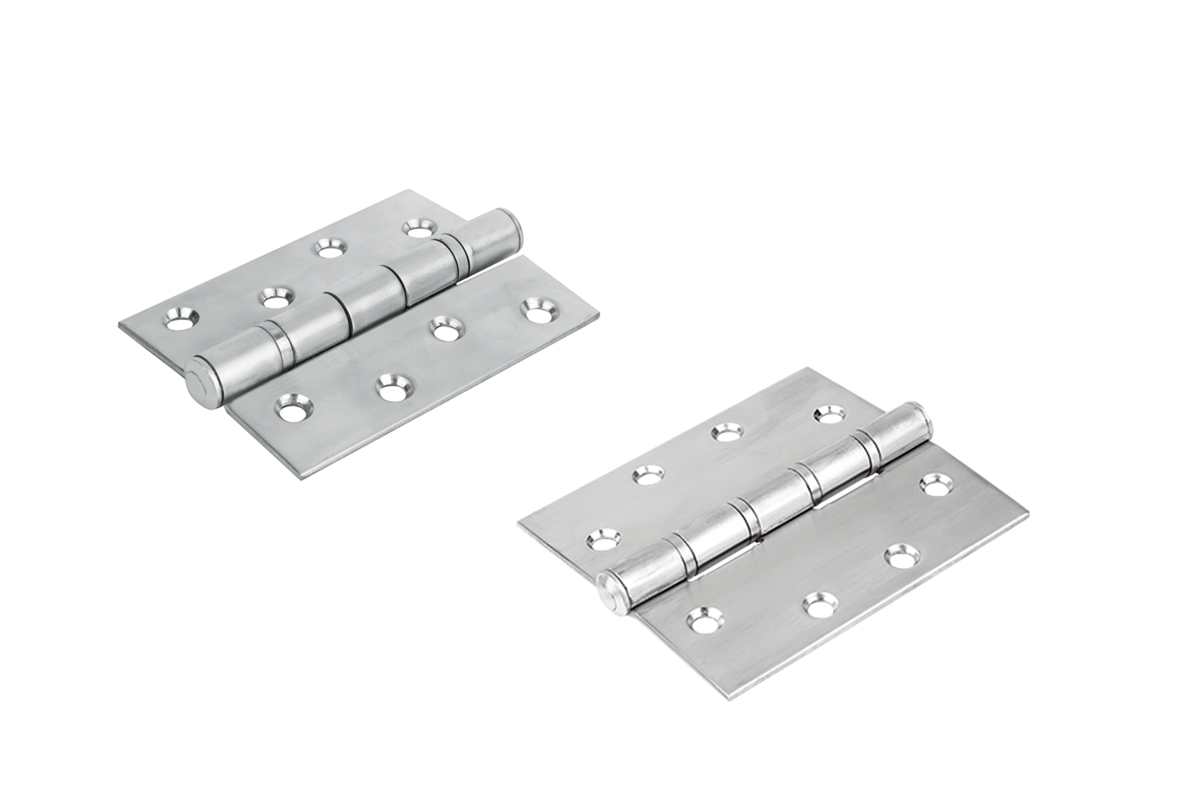

Butt hinges stainless steel

K1349

Butt hinges stainless steel

Products
- Hinges
  - Butt hinges stainless steel

Item description/product images

DescriptionMaterial:Stainless steel 1.4301 (AISI 304 equivalent).Version:Matt polished.Note:Butt hinge for inwards opening doors.
The opening angle is max. 270°.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1349 Butt hinges stainless steel

Drawings

Butt hinges stainless steel

Item selection/filter

Order No.	style	A	A1	A2	A3	A4	A5	A6	B	B1	B2	B3	B4	B5	D1	D2	H	H1	H2	Load capacity N	CAD	Acc.	Price	Order
K1349.06371919	A	75	18,5	18,5	37,5	37,5	27,5	27,5	102	110	76	13	25	25	6,7	8	14	3,8	2	8000			34.58 $ (USD)
K1349.07502424	B	100	24	24	50	50	40	40	114	120	88	13	28,5	28,5	7,3	8	14	4,3	3	8000			51.77 $ (USD)
