Material
Steel, pins and connecting elements 1.4016 stainless steel.
Stainless steel, all components 1.4404 stainless steel.
Version
Electro zinc-plated.
Bright.
Bright.
Show more
Show less
Description
Material
Steel, pins and connecting elements 1.4016 stainless steel.
Stainless steel, all components 1.4404 stainless steel.
Version
Electro zinc-plated.
Bright.
Bright.
Assembly
- For recessed or surface mounting.
- Can be mounted on right or left side.
- For horizontal or vertical applications.
- Can be mounted on right or left side.
- For horizontal or vertical applications.

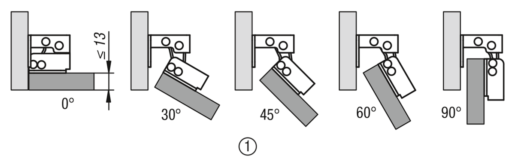

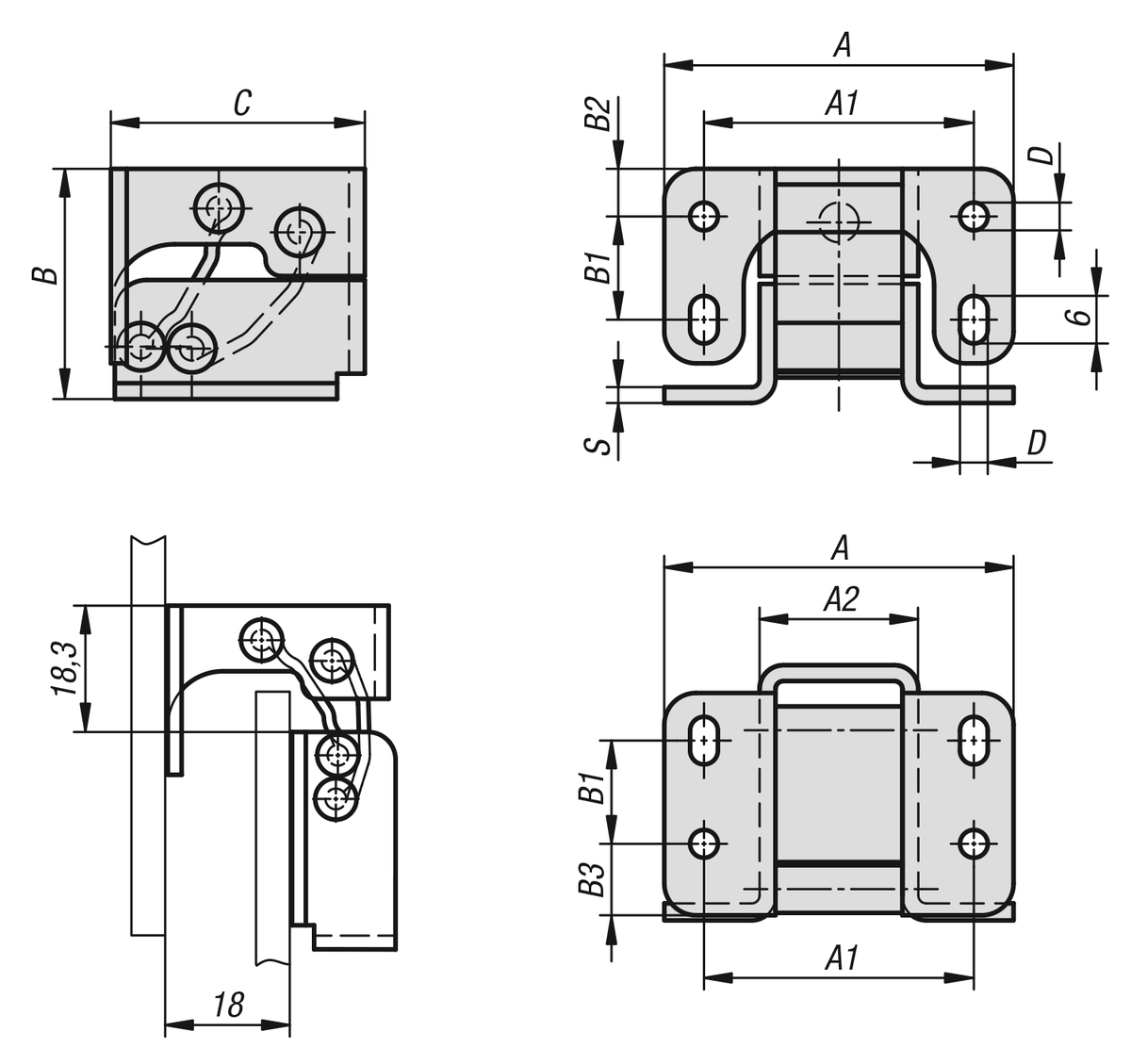

Drawing reference
1) recessed mounting
2) surface mounting
2) surface mounting
