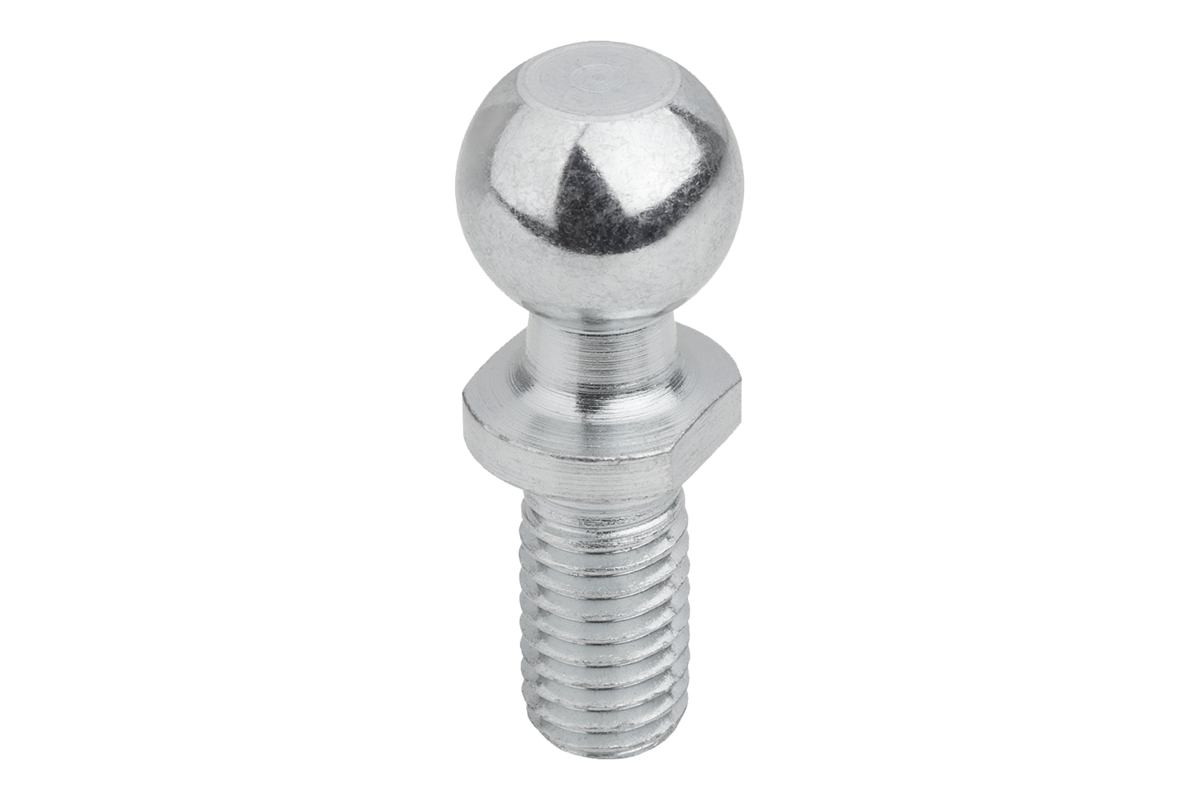

Ball studs for ball joints DIN 71803, style C

K0713_C

Ball studs for ball joints DIN 71803, style C

Products
- Joints
  - Ball studs for ball joints DIN 71803
    - Ball studs for ball joints DIN 71803, style C

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.Note:The ball studs are spare parts for DIN 71802 ball joints.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0713_C Ball studs for ball joints DIN 71803, style C

Drawings

Ball studs for ball joints DIN 71803, style C

Item selection/filter

Order No.	style	D1	D2	D3	D5	L2	L3	L5 min.	L6 max.	SW	CAD	Acc.	Price	Order
K0713.0805	C	8	M5	8	5	10,2	9	1,2	4	7			1.28 $ (USD)
K0713.1006	C	10	M6	10	6	12,5	11	1,2	4	8			1.60 $ (USD)
K0713.1308	C	13	M8	13	8	16,5	13	1,5	5,3	11			2.90 $ (USD)
K0713.1610	C	16	M10	16	10	20	16	2,5	7,3	13			2.99 $ (USD)
K0713.1612	C	16	M12	16	12	20	16	2,5	7,3	13			3.33 $ (USD)
K0713.1914	C	19	M14x1,5	19	14	28	20	5	10,8	16			4.90 $ (USD)
