Oil level sight glasses aluminum, glass window
K0246

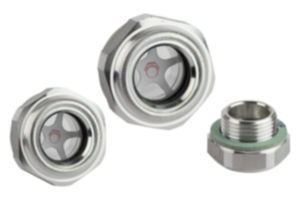

Oil level sight glasses aluminum, glass window

go back

Item description/product images

DescriptionMaterial:Housing, reflector in aluminum.
Natural, clear glass viewing lens.
Internal seal, Viton®.
Version:Viewing lens, temperature-resistant to 150 °C.
Flat seal, asbestos-free.
Note:Resists high pressure and heat. Natural glass as the viewing lens ensures optimal light transmission and high surface hardness.Drawing reference:
1) flat seal
2) external seal
3) internal seal
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0246 Oil level sight glasses aluminum, glass window 220 kB

Drawings

Oil level sight glasses aluminum, glass window

Item selection/filter

Order No.D

D1D2LL1SWTightening
torque
max. Nm
Pressure load
max. bar
CADAcc.PriceOrder
K0246.2901229,5G1/212109271820 9.39 $ (USD)
K0246.3403434,5G3/4161210322420 11.87 $ (USD)
K0246.4210042,5G123121040-20 17.23 $ (USD)
K0246.29201529,5M20X1,512109271820 9.39 $ (USD)
K0246.42331542,5M33X1,523121040-20 17.23 $ (USD)
