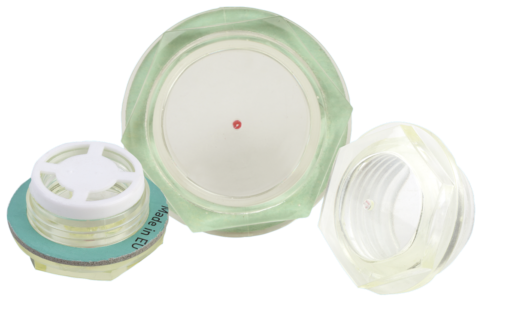

K0445Oil level sight glasses |
go back |
|
|
DescriptionMaterial:Housing in thermoplastic polyamide.
Plastic reflector.Version:Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.
Reflector white.On request:Rubber gasket (NBR).Drawing reference:style A: without reflector
style B: with reflector
1) flat seal
2) check mark
3) reflector DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | style | D | D1 | D2 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0445.120014 | A | 20,5 | G1/4 | 12 | 8 | 8,5 | 17 | 5 |  | | 1.31 $ (USD) | | | K0445.122038 | A | 22 | G3/8 | 12 | 6,5 | 12 | 18 | 7 | | | 1.47 $ (USD) | | | K0445.128012 | A | 28 | G1/2 | 16 | 8 | 12 | 24 | 15 | | | 1.60 $ (USD) | | | K0445.135034 | A | 36 | G3/4 | 21 | 8,5 | 13,5 | 30 | 20 | | | 2.16 $ (USD) | | | K0445.143100 | A | 42 | G1 | 30 | 9 | 16 | 36 | 25 | | | 2.99 $ (USD) | | | K0445.151114 | A | 51 | G1 1/4 | 32 | 10 | 17 | 42 | - | | | 6.11 $ (USD) | | | K0445.158112 | A | 58 | G1 1/2 | 39 | 10 | 21 | 50 | - | | | 7.39 $ (USD) | | | K0445.174200 | A | 74 | G2 | 48 | 12 | 20 | 64 | - | | | 10.48 $ (USD) | | | K0445.1201415 | A | 20 | M14X1,5 | 12 | 7,5 | 8 | 17 | 5 | | | 1.31 $ (USD) | | | K0445.1221615 | A | 22 | M16X1,5 | 12 | 6,5 | 12,5 | 18 | 7 | | | 1.47 $ (USD) | | | K0445.1251815 | A | 25,5 | M18X1,5 | 14 | 6 | 12,5 | 21 | 10 | | | 1.47 $ (USD) | | | K0445.1282015 | A | 28 | M20X1,5 | 16 | 7,5 | 12 | 24 | 15 | | | 1.60 $ (USD) | | | K0445.1282215 | A | 28 | M22X1,5 | 16 | 7,5 | 12,5 | 24 | 15 | | | 1.66 $ (USD) | | | K0445.1362615 | A | 36 | M26X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 2.75 $ (USD) | | | K0445.1362715 | A | 36 | M27X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 2.91 $ (USD) | | | K0445.1514015 | A | 51 | M40X1,5 | 32 | 10 | 17 | 42 | - | | | 6.30 $ (USD) | |
|
Item No.
| style | D | D1 | D2 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0445.222038 | B | 22 | G3/8 | 12 | 6,5 | 12 | 18 | 7 | | | 1.84 $ (USD) | | | K0445.228012 | B | 28 | G1/2 | 16 | 8 | 12 | 24 | 15 | | | 2.10 $ (USD) | | | K0445.235034 | B | 36 | G3/4 | 21 | 8,5 | 13,5 | 30 | 20 | | | 2.78 $ (USD) | | | K0445.243100 | B | 42 | G1 | 30 | 9 | 16 | 36 | 25 | | | 3.87 $ (USD) | | | K0445.251114 | B | 51 | G1 1/4 | 32 | 10 | 17 | 42 | - | | | 6.19 $ (USD) | | | K0445.258112 | B | 58 | G1 1/2 | 39 | 10 | 21 | 50 | - | | | 7.81 $ (USD) | | | K0445.274200 | B | 74 | G2 | 48 | 12 | 20 | 64 | - | | | 10.62 $ (USD) | | | K0445.2221615 | B | 22 | M16X1,5 | 12 | 6,5 | 12,5 | 18 | 7 | | | 1.84 $ (USD) | | | K0445.2251815 | B | 25,5 | M18X1,5 | 14 | 6 | 12,5 | 21 | 10 | | | 1.86 $ (USD) | | | K0445.2282015 | B | 28 | M20X1,5 | 16 | 7,5 | 12 | 24 | 15 | | | 2.10 $ (USD) | | | K0445.2282215 | B | 28 | M22X1,5 | 16 | 7,5 | 12,5 | 24 | 15 | | | 2.14 $ (USD) | | | K0445.2362615 | B | 36 | M26X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 3.36 $ (USD) | | | K0445.2362715 | B | 36 | M27X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 3.49 $ (USD) | | | K0445.2514015 | B | 51 | M40X1,5 | 32 | 10 | 17 | 42 | - | | | 6.46 $ (USD) | |
|
