Product groups
Screw plugs
K0454

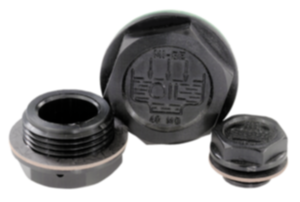

Screw plugs

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Thermoplastic polyamide 66Version:Black. Flat seal asbestos-freeNote:Temperature resistant:
up to 100 °C.
Drawing reference:
style A: with fill symbol
style B: with fill symbol and vent hole
style C: with drain symbol

1) flat seal
2) vent hole style B only
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0454 Screw plugs 259 kB

Drawings (total overview)

Screw plugs

Screw plugs style A, with fill symbol

More information

Drawings

Screw plugs style A, with fill symbol

Item selection/filter

Item No.StyleDD1LL1SWTightening
torque
max. Nm
CADAcc.PriceOrder
K0454.119014A19,5G1/479175on request
K0454.122038A22G3/87,510188on request
K0454.128012A28G1/27,511249on request
K0454.134034A34G3/49113011on request
K0454.142100A42G110,51235-on request
K0454.151114A51G1 1/41213,542-on request
K0454.158112A58G1 1/21014,550-on request
K0454.174200A74G213,51664-on request
K0454.1191415A19,5M14X1,579175on request
K0454.1211615A21M16X1,57,510186on request
K0454.1261815A26M18X1,57,510217on request
K0454.1282015A28M20X1,5810248on request
K0454.1282215A28M22X1,58112410on request
K0454.1524015A52M40X1,5101342-on request

Screw plugs style B, with fill symbol and vent hole

More information

Drawings

Screw plugs style B, with fill symbol and vent hole

Item selection/filter

Item No.StyleDD1LL1SWTightening
torque
max. Nm
CADAcc.PriceOrder
K0454.219014B19,5G1/479175on request
K0454.222038B22G3/87,510188on request
K0454.228012B28G1/27,511249on request
K0454.234034B34G3/49113011on request
K0454.242100B42G110,51235-on request
K0454.251114B51G1 1/41213,542-on request
K0454.258112B58G1 1/21014,550-on request
K0454.274200B74G213,51664-on request
K0454.2191415B19,5M14X1,579175on request
K0454.2211615B21M16X1,57,510186on request
K0454.2261815B26M18X1,57,510217on request
K0454.2282015B28M20X1,5810248on request
K0454.2282215B28M22X1,58112410on request
K0454.2524015B52M40X1,5101342-on request

Screw plugs style C, with drain symbol

More information

Drawings

Screw plugs style C, with drain symbol

Item selection/filter

Item No.StyleDD1LL1SWTightening
torque
max. Nm
CADAcc.PriceOrder
K0454.319014C19,5G1/479175on request
K0454.322038C22G3/87,510188on request
K0454.328012C28G1/27,511249on request
K0454.334034C34G3/49113011on request
K0454.342100C42G110,51235-on request
K0454.351114C51G1 1/41213,542-on request
K0454.358112C58G1 1/21014,550-on request
K0454.374200C74G213,51664-on request
K0454.3191415C19,5M14X1,579175on request
K0454.3211615C21M16X1,57,510186on request
K0454.3261815C26M18X1,57,510217on request
K0454.3282015C28M20X1,5810248on request
K0454.3282215C28M22X1,58112410on request
K0454.3524015C52M40X1,5101342-on request
