Product groups
Plugs fillknurled cap
K0455

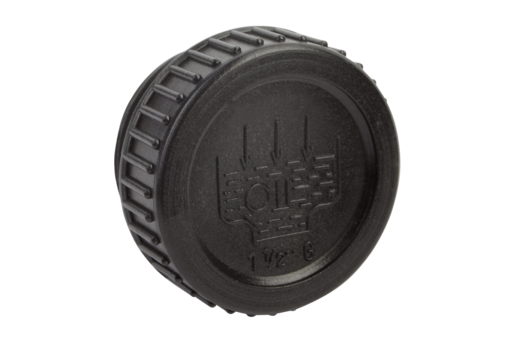

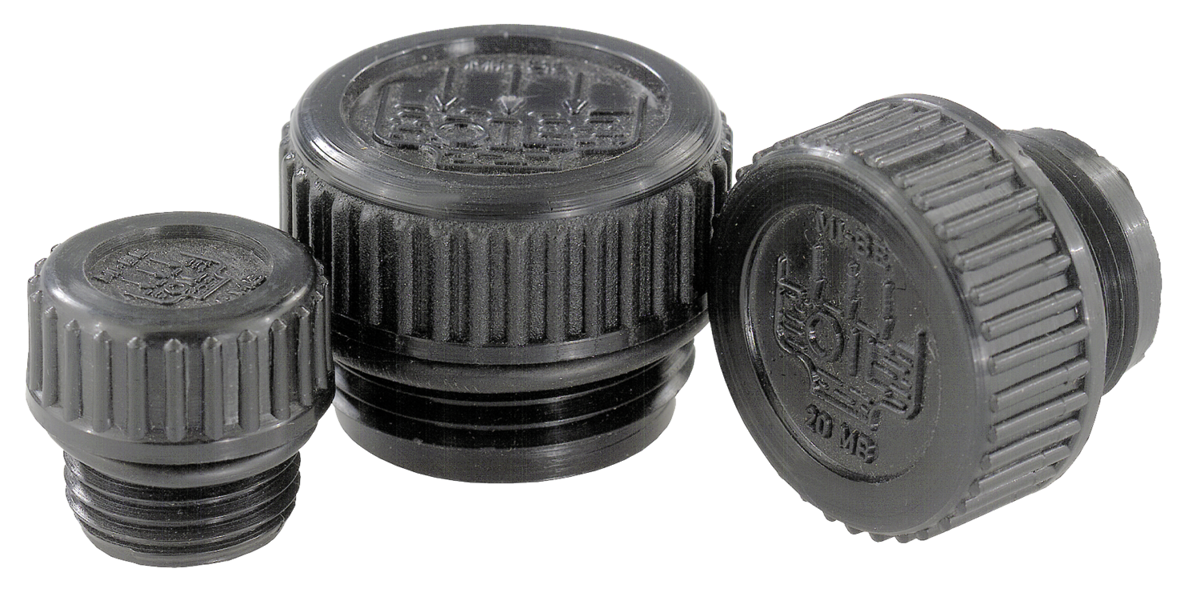

Plugs fill knurled cap

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Thermoplastic polyamide 66;
O-ring in rubber (NBR)
Version:black.Temperature range:Drawing reference:
style A: with fill symbol
style B: with fill symbol and vent hole

1) O-ring
2) vent hole only style B
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0455 Plugs fillknurled cap 235 kB

Drawings (total overview)

Plugs fillknurled cap

Screw plugs style A, with fill symbol

More information

Drawings

Screw plugs style A, with fill symbol

Item selection/filter

Item No.StyleDD1LL1CADAcc.PriceOrder
K0455.120014A20G1/499on request
K0455.120038A20,5G3/8910on request
K0455.128012A28G1/210,510,5on request
K0455.131034A31G3/41211on request
K0455.139100A39G11212on request
K0455.149114A49G1 1/41313,5on request
K0455.155112A55G1 1/214,714,5on request
K0455.168200A68,5G21516on request
K0455.1201415A20M14X1,599on request
K0455.1201615A20M16X1,5910on request
K0455.1281815A28M18X1,510,510on request
K0455.1282015A28M20X1,510,510on request
K0455.1282215A28M22X1,510,510on request

Screw plugs style B, with fill symbol and vent hole

More information

Drawings

Screw plugs style B, with fill symbol and vent hole

Item selection/filter

Item No.StyleDD1LL1CADAcc.PriceOrder
K0455.220014B20G1/499on request
K0455.220038B20,5G3/8910on request
K0455.228012B28G1/210,510,5on request
K0455.231034B31G3/41211on request
K0455.239100B39G11212on request
K0455.249114B49G1 1/41313,5on request
K0455.255112B55G1 1/214,714,5on request
K0455.268200B68,5G21516on request
K0455.2201415B20M14X1,599on request
K0455.2201615B20M16X1,5910on request
K0455.2281815B28M18X1,510,510on request
K0455.2282015B28M20X1,510,510on request
K0455.2282215B28M22X1,510,510on request
