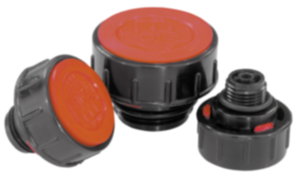

Vent screws

go back

Products
- Level indicators, screw plugs
  - Vent screws

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, cap in thermoplastic polyamide 66.
Air filter (style B only) in polyurethane (PU foam).
O-ring in rubber (NBR).Version:Black housing. Red cap. Filter mesh 60 µm.Note:The removable cap allows easy cleaning of the air filter.

style A: without air filter
style B: with air filterTemperature range:Drawing reference:

1) cap
2) air filter style B only
3) O-ring

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0457 Vent screws

196 kB

Drawings (total overview)

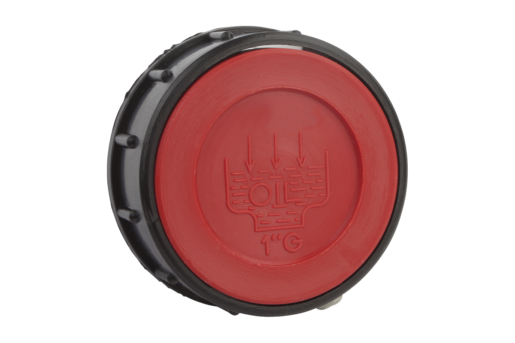

Vent screw Form A, without air filter

More information

Drawings

Item selection/filter

Item No.	Style	D	D1	D2	L	L1	Price
K0457.136038	A	36	G3/8	23	17	11	on request
K0457.141012	A	41	G1/2	28	18	12	on request
K0457.147034	A	47	G3/4	33	17	12	on request
K0457.152100	A	52	G1	38	20	12	on request
K0457.163114	A	63	G1 1/4	49	23	13	on request
K0457.163112	A	63	G1 1/2	55	23	13,5	on request
K0457.1361615	A	36	M16x1,5	23	17	11	on request
K0457.1411815	A	41	M18x1,5	28	17,5	12	on request
K0457.1412015	A	41	M20x1,5	28	17,5	12	on request
K0457.1412215	A	41	M22x1,5	28	17,5	12	on request

Vent screws style B, with air filter

More information

Drawings

Item selection/filter

Item No.	Style	D	D1	D2	L	L1	Price
K0457.236038	B	36	G3/8	23	17	11	on request
K0457.241012	B	41	G1/2	28	18	12	on request
K0457.247034	B	47	G3/4	33	17	12	on request
K0457.252100	B	52	G1	38	20	12	on request
K0457.263114	B	63	G1 1/4	49	23	13	on request
K0457.263112	B	63	G1 1/2	55	23	13,5	on request
K0457.2361615	B	36	M16x1,5	23	17	11	on request
K0457.2411815	B	41	M18x1,5	28	17,5	12	on request
K0457.2412015	B	41	M20x1,5	28	17,5	12	on request
K0457.2412215	B	41	M22x1,5	28	17,5	12	on request
