Filler necks

K0470

Filler necks

Products
- Level indicators, screw plugs
  - Filler necks

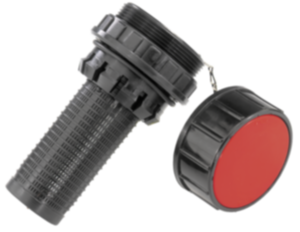

Item description/product images

DescriptionMaterial, version:1. Housing black thermoplastic polyamide 66.

2. Sealing cap red thermoplastic polyamide 66.

3. Air filter polyurethane (PU foam), filter grade 40 µm.

4. Flat seal NBR

5. Fastening screw nickel-plated steel.

6. Press-in unit black thermoplastic polyamide 66.

7. Stop body black thermoplastic polyamide 66.

8. Fastening nut black polyamide 66.

9. O-ring NBR, Shore 70.

10. Filler sieve black thermoplastic polypropylene.

11. Chain nickel-plated brass.Note:Temperature resistant up to 80 °C.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0470 Filler necks

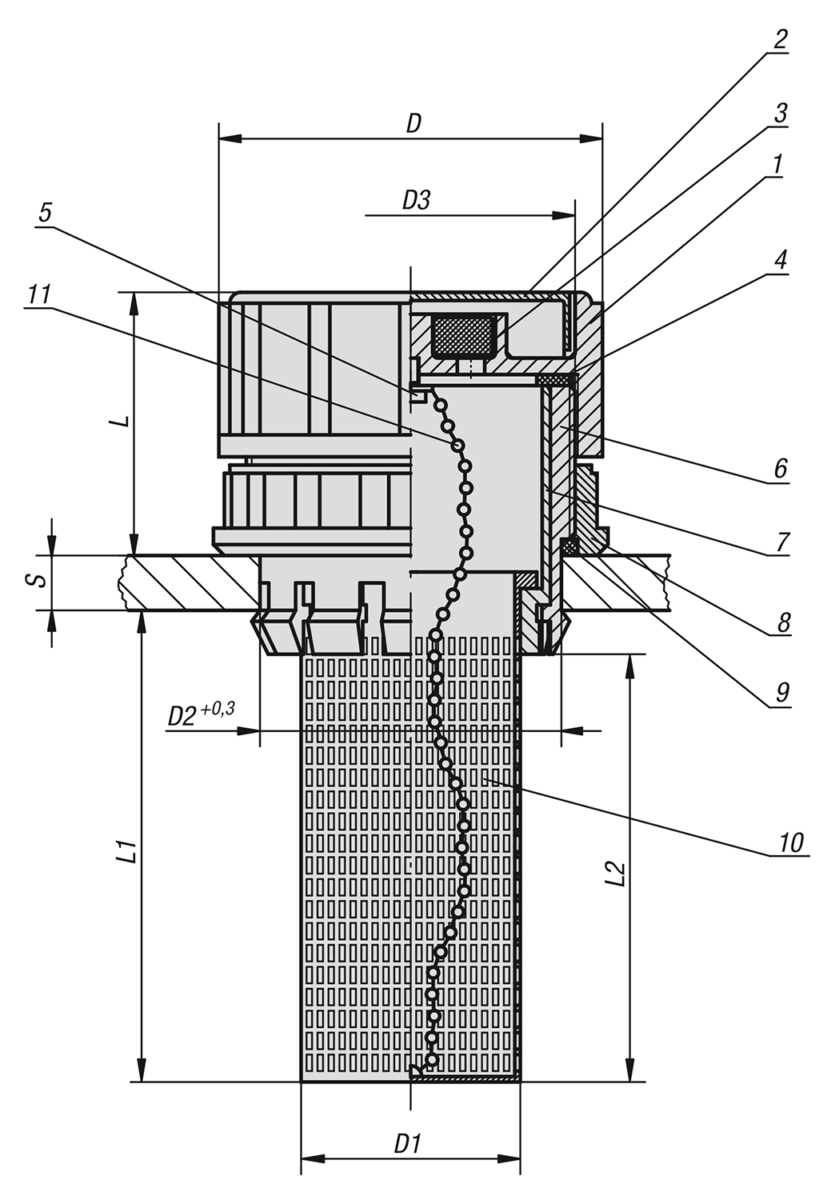

Drawings

Filler necks

Item selection/filter

Item No.	D	D1	D2	D3	L	L1	L2	S	CAD	Acc.	Price	Order
K0470.706020	70	38	55	M60X2	46,5	88	80	2 - 8			20.30 $ (USD)
