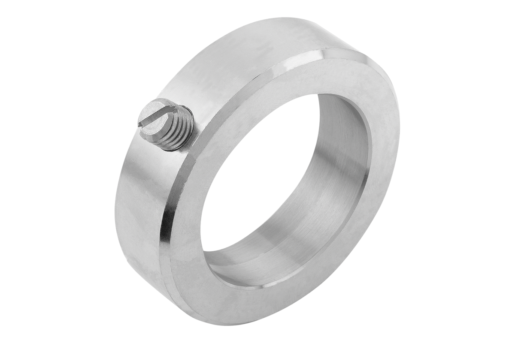

Shaft collars set screw DIN 705, stainless steel , Form A, recess

go back

Products
- Machine & Fixture Components
  - Connectors for profiles and profile systems
    - Shaft collars set screw DIN 705, stainless steel
      - Shaft collars set screw DIN 705, stainless steel , Form A, recess

Item description/product images

DescriptionMaterial:Stainless steel 1.4305 (AISI 303 equivalent).Version:Bright.Drawing reference:

1) Second grub screw from D1 ≥ 75

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0406_A Shaft collars set screw DIN 705, stainless steel , Form A, recess

253 kB

Drawings

Item selection/filter

Order No.	style	D1	B	D2	D3 grub screw	Price
K0406.100302	A	3	5	7	M2x3	2.80 $ (USD)
K0406.100402	A	4	5	8	M2,5x3	2.80 $ (USD)
K0406.100502	A	5	6	10	M3x4	2.80 $ (USD)
K0406.100602	A	6	8	12	M4x5	3.06 $ (USD)
K0406.100702	A	7	8	12	M4x5	3.06 $ (USD)
K0406.100802	A	8	8	16	M4x6	3.68 $ (USD)
K0406.100902	A	9	10	18	M5x8	4.06 $ (USD)
K0406.101002	A	10	10	20	M5x8	4.42 $ (USD)
K0406.101102	A	11	10	20	M5x8	4.42 $ (USD)
K0406.101202	A	12	12	22	M6x8	5.50 $ (USD)
K0406.101402	A	14	12	25	M6x8	6.22 $ (USD)
K0406.101502	A	15	12	25	M6x8	6.22 $ (USD)
K0406.101602	A	16	12	28	M6x8	9.00 $ (USD)
K0406.101802	A	18	14	32	M6x8	11.56 $ (USD)
K0406.102002	A	20	14	32	M6x8	11.56 $ (USD)
K0406.102402	A	24	16	40	M8x12	18.98 $ (USD)
K0406.102502	A	25	16	40	M8x10	18.98 $ (USD)
K0406.102602	A	26	16	40	M8x10	18.98 $ (USD)
K0406.102802	A	28	16	45	M8x12	22.20 $ (USD)
K0406.103002	A	30	16	45	M8x10	22.20 $ (USD)
K0406.103202	A	32	16	50	M8x12	28.04 $ (USD)
K0406.103502	A	35	16	56	M8x12	28.86 $ (USD)
K0406.103602	A	36	16	56	M8x12	35.20 $ (USD)
K0406.103802	A	38	16	56	M8x12	36.90 $ (USD)
K0406.104002	A	40	18	63	M10x16	46.38 $ (USD)
K0406.104202	A	42	18	63	M10x16	46.38 $ (USD)
K0406.104502	A	45	18	70	M10x16	54.92 $ (USD)
K0406.104802	A	48	18	70	M10x16	54.92 $ (USD)
K0406.105002	A	50	18	80	M10x16	68.32 $ (USD)
K0406.105202	A	52	18	80	M10x16	70.22 $ (USD)
K0406.105502	A	55	18	80	M10x16	70.22 $ (USD)
K0406.105602	A	56	18	80	M10x16	70.22 $ (USD)
K0406.105802	A	58	20	90	M10x16	99.92 $ (USD)
K0406.106002	A	60	20	90	M10x16	99.92 $ (USD)
K0406.106302	A	63	20	90	M10x16	99.92 $ (USD)
K0406.106502	A	65	20	100	M10x20	131.90 $ (USD)
K0406.106802	A	68	20	100	M10x20	131.90 $ (USD)
K0406.107002	A	70	20	100	M10x20	131.90 $ (USD)
K0406.107202	A	72	20	100	M10x20	178.74 $ (USD)
K0406.107502	A	75	22	110	M12x20	178.74 $ (USD)
K0406.108002	A	80	22	110	M12x20	178.74 $ (USD)
K0406.108502	A	85	22	125	M12x25	230.34 $ (USD)
K0406.109002	A	90	22	125	M12x20	230.34 $ (USD)
K0406.110002	A	100	25	140	M12x25	273.62 $ (USD)
