Shaft collars set screw DIN 705, stainless steel , style E,...

go back

Products
- Machine & Fixture Components
  - Connectors for profiles and profile systems
    - Shaft collars set screw DIN 705, stainless steel

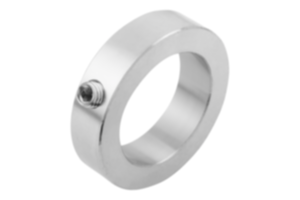

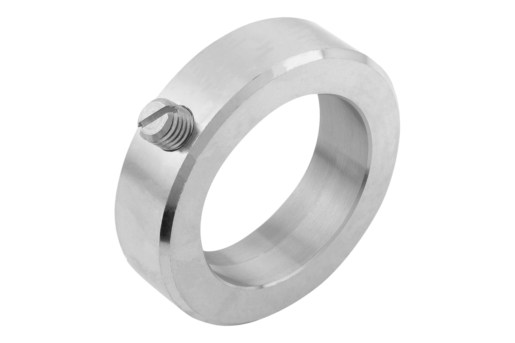

      - Shaft collars set screw DIN 705, stainless steel , style E, hexagon socket

Item description/product images

DescriptionMaterial:Stainless steel 1.4305 (AISI 303 equivalent).Version:Bright.Drawing reference:

1) Second grub screw from D1 ≥ 75

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0406_E Shaft collars set screw DIN 705, stainless steel , style E, hexagon socket

204 kB

Drawings

Item selection/filter

Order No.	style	D1	B	D2	D3 grub screw	Price
K0406.300302	E	3	5	7	M2x3	2.70 $ (USD)
K0406.300402	E	4	5	8	M2,5x3	2.70 $ (USD)
K0406.300502	E	5	6	10	M3x4	2.70 $ (USD)
K0406.300602	E	6	8	12	M4x5	2.88 $ (USD)
K0406.300702	E	7	8	12	M4x5	2.88 $ (USD)
K0406.300802	E	8	8	16	M4x6	3.44 $ (USD)
K0406.300902	E	9	10	18	M5x8	3.90 $ (USD)
K0406.301002	E	10	10	20	M5x8	4.18 $ (USD)
K0406.301102	E	11	10	20	M5x8	4.30 $ (USD)
K0406.301202	E	12	12	22	M6x8	5.50 $ (USD)
K0406.301402	E	14	12	25	M6x8	6.22 $ (USD)
K0406.301502	E	15	12	25	M6x8	6.22 $ (USD)
K0406.301602	E	16	12	28	M6x8	8.78 $ (USD)
K0406.301802	E	18	14	32	M6x8	10.84 $ (USD)
K0406.302002	E	20	14	32	M6x8	10.84 $ (USD)
K0406.302402	E	24	16	40	M8x12	17.94 $ (USD)
K0406.302502	E	25	16	40	M8x10	17.94 $ (USD)
K0406.302602	E	26	16	40	M8x10	17.94 $ (USD)
K0406.302802	E	28	16	45	M8x12	21.06 $ (USD)
K0406.303002	E	30	16	45	M8x10	21.06 $ (USD)
K0406.303202	E	32	16	50	M8x12	26.72 $ (USD)
K0406.303502	E	35	16	56	M8x12	28.30 $ (USD)
K0406.303602	E	36	16	56	M8x12	31.82 $ (USD)
K0406.303802	E	38	16	56	M8x12	33.96 $ (USD)
K0406.304002	E	40	18	63	M10x16	44.48 $ (USD)
K0406.304202	E	42	18	63	M10x16	44.48 $ (USD)
K0406.304502	E	45	18	70	M10x16	51.78 $ (USD)
K0406.304802	E	48	18	70	M10x16	51.78 $ (USD)
K0406.305002	E	50	18	80	M10x16	55.22 $ (USD)
K0406.305202	E	52	18	80	M10x16	55.22 $ (USD)
K0406.305502	E	55	18	80	M10x16	55.22 $ (USD)
K0406.305602	E	56	18	80	M10x16	55.22 $ (USD)
K0406.305802	E	58	20	90	M10x16	84.94 $ (USD)
K0406.306002	E	60	20	90	M10x16	84.94 $ (USD)
K0406.306302	E	63	20	90	M10x16	84.94 $ (USD)
K0406.306502	E	65	20	100	M10x20	112.34 $ (USD)
K0406.306802	E	68	20	100	M10x20	112.34 $ (USD)
K0406.307002	E	70	20	100	M10x20	112.34 $ (USD)
K0406.307202	E	72	20	100	M10x20	150.74 $ (USD)
K0406.307502	E	75	22	110	M12x20	150.74 $ (USD)
K0406.308002	E	80	22	110	M12x20	150.74 $ (USD)
K0406.308502	E	85	22	125	M12x25	196.22 $ (USD)
K0406.309002	E	90	22	125	M12x20	196.22 $ (USD)
K0406.310002	E	100	25	140	M12x25	232.12 $ (USD)
