Connecting sets central Type I
K1033

Connecting sets central Type I

go back

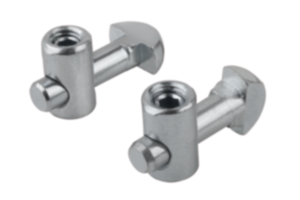

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:The connecting sets are used to connect two aluminum profiles at right angles. They allow free position of the profiles. The profile slots positioned at right-angles to each other remain free. Panel elements can be positioned in the profile grooves without additional machining.

Due to the reduced clamping force and ommited rotation locks, these connecting sets should only be used in combination with panel elements and lightly loaded constructions.

Low workload. To assemble a hole must be drilled into one of the profiles and the core hole must be drilled out.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1033 Connecting sets central Type I 376 kB

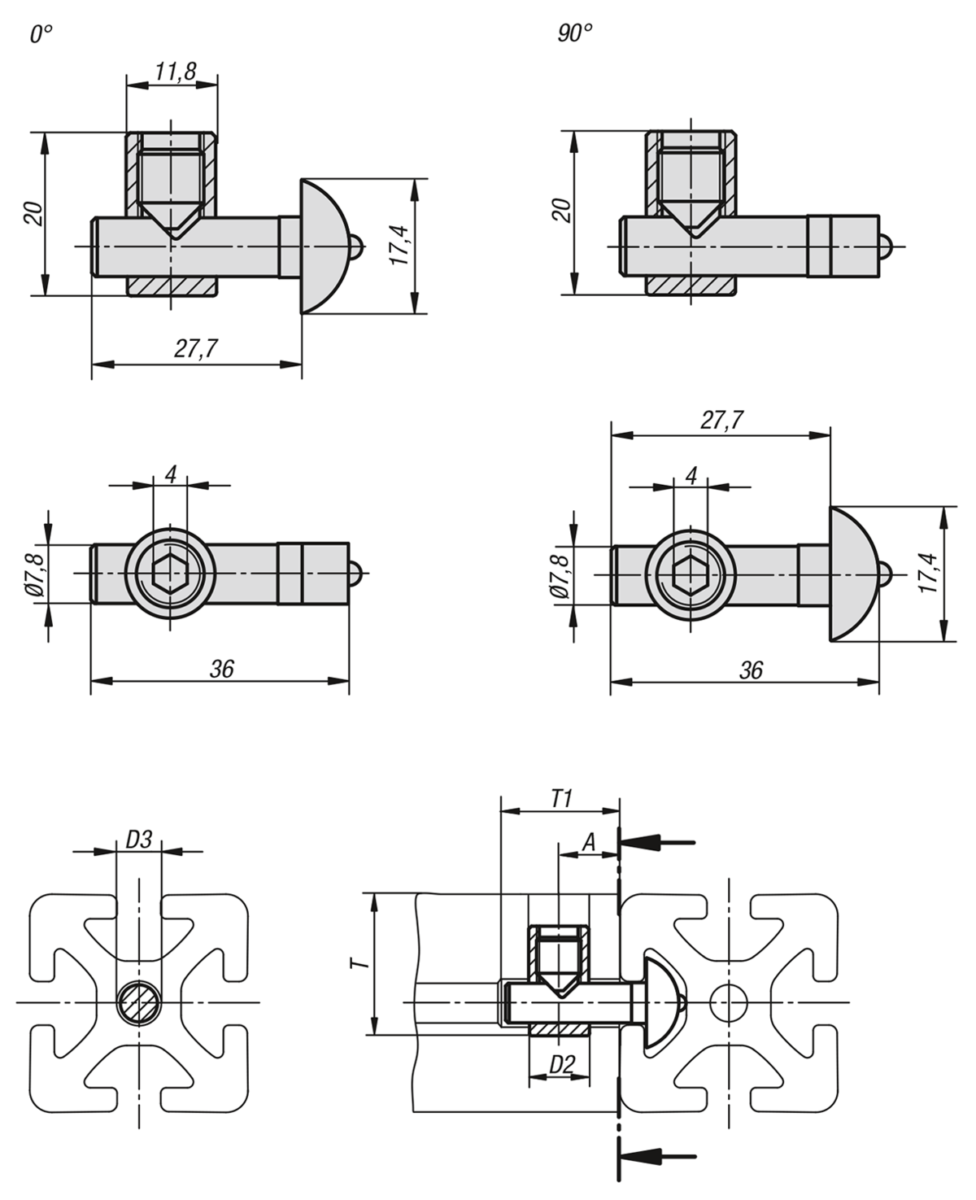

Drawings

Connecting sets central Type I

Item selection/filter

Order No.TypeSlot
width
Version

AD2D3TT1CADAcc.PriceOrder
K1033.0800I8151282828 6.30 $ (USD)
K1033.0890I890°151282828 6.30 $ (USD)
