Connecting sets central Type B
K1035

Connecting sets central Type B

go back

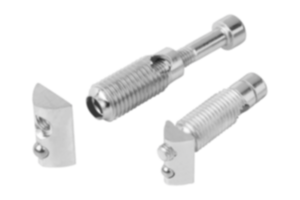

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:The connecting sets are used to connect two aluminum profiles at right angles. They allow free position of the profiles. The profile slots positioned at right-angles to each other remain free. Panel elements can be positioned in the profile slots without additional machining.

Due to the reduced clamping force and omitted rotation locks, these connecting sets should only be used in combination with panel elements and lightly loaded constructions.

Low workload. To assemble a hole must be drilled into one of the profiles. Due to the reduced pin diameter the slot is not damaged and can be completely covered with a cover profile.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1035 Connecting sets central Type B 282 kB

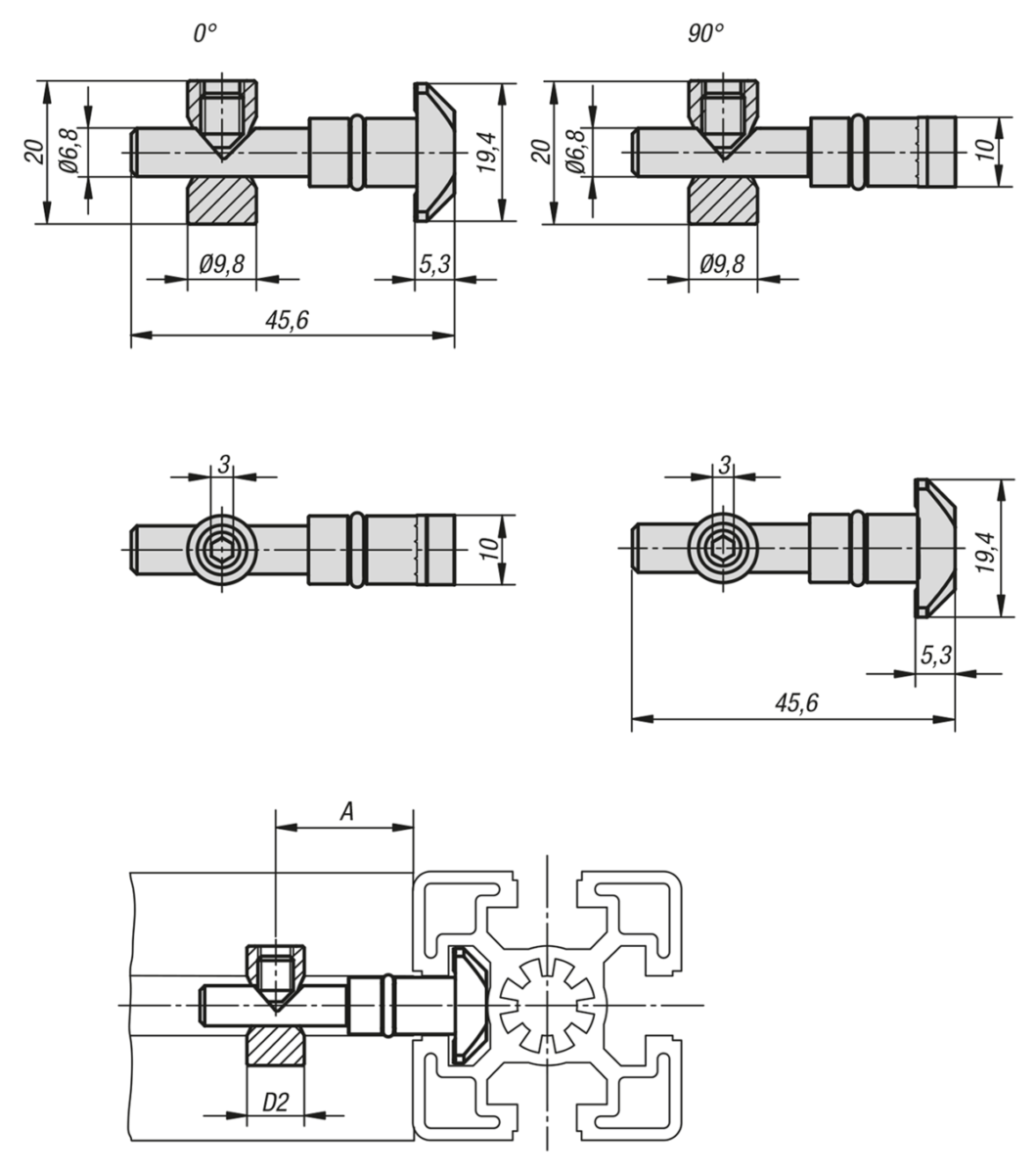

Drawings

Connecting sets central Type B

Item selection/filter

Order No.TypeSlot
width
Version

A

D2CADAcc.PriceOrder
K1035.1000B1022,59,8 5.86 $ (USD)
K1035.1090B1090°22,59,8 5.86 $ (USD)
