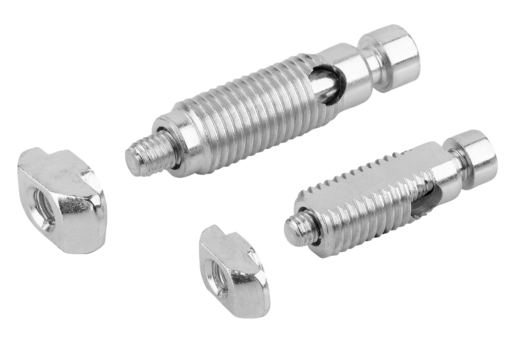

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:The connecting sets are used to connect two aluminum profiles at right angles. They enable free positioning of the profiles.
No machining of the profile is required. The connector is screwed into the profile slot from the front (left-hand thread). The connector has a self-tapping thread. The use of lubricants is recommended.
Automatic connecting sets should always be used opposite each other in pairs.
Connecting set for slot width 8 has a flattened thread to prevent protruding after installation. Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
