Cube connector sets Type B
K1039

Cube connector sets Type B

go back

Item description/product images

DescriptionMaterial:Cube die-cast aluminum.
Screws steel.
End caps polyamide.
Version:aluminum bright.
Screws with self-tapping thread.
End cap black.
Note:The cube connector can be used to connect two or three profiles to each other by the end faces. The cube connectors have guide lugs that ensure a perfect and secure installation. Fastening to the profile is carried out by self-tapping screws. The open holes can be closed off with the end caps.

The profile slots positioned at right-angles to each other remain free. Panel elements can be positioned in the profile slots without additional machining.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1039 Cube connector sets Type B 292 kB

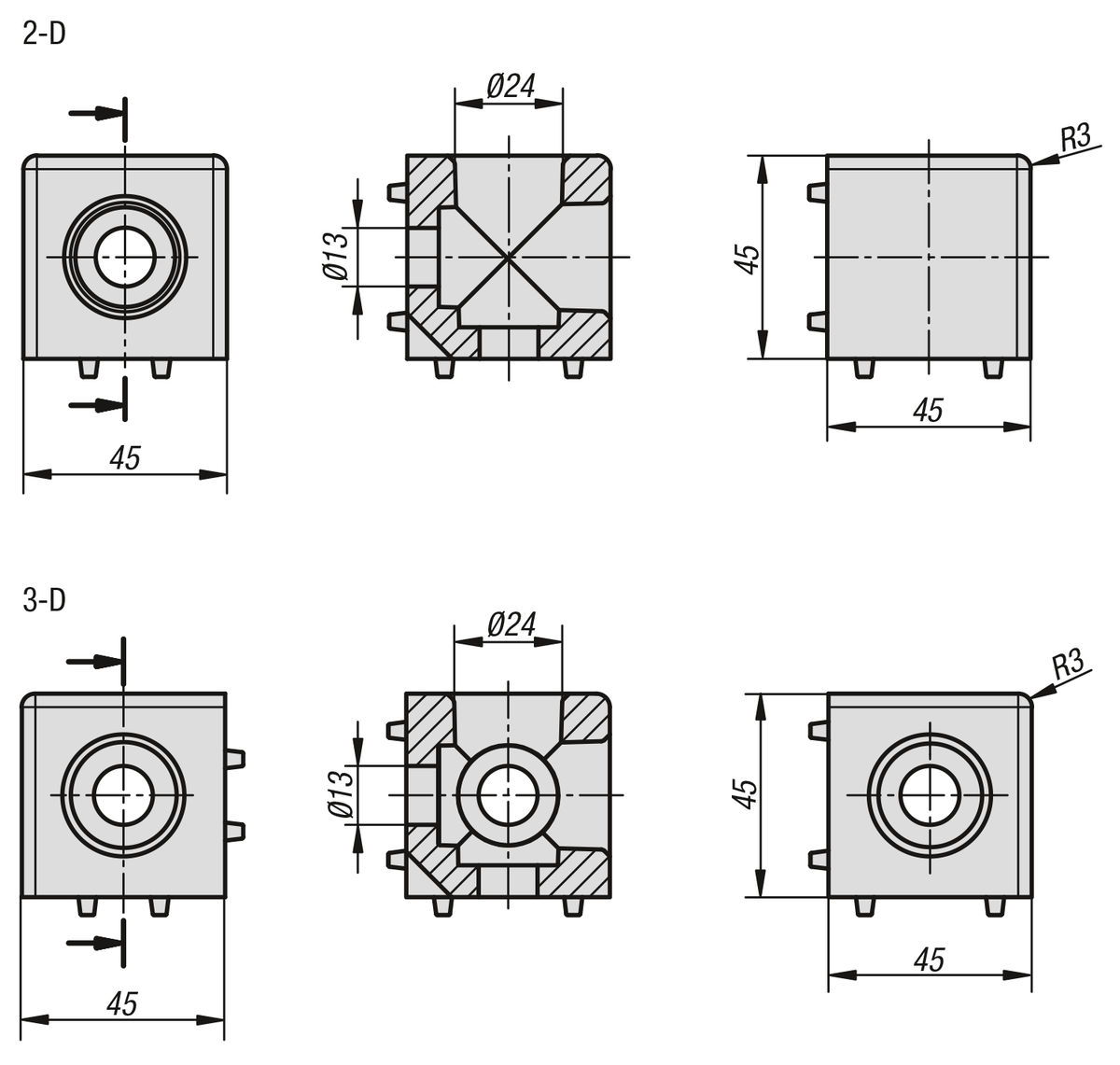

Drawings

Cube connector sets Type B

Item selection/filter

Order No.TypeSlot
width
Version

CADAcc.PriceOrder
K1039.103B103-D 17.49 $ (USD)
K1039.102B102-D 14.67 $ (USD)
